DTC C1231/31: Malfunction In Steering Angle Sensor Circuit: Wiring Diagram

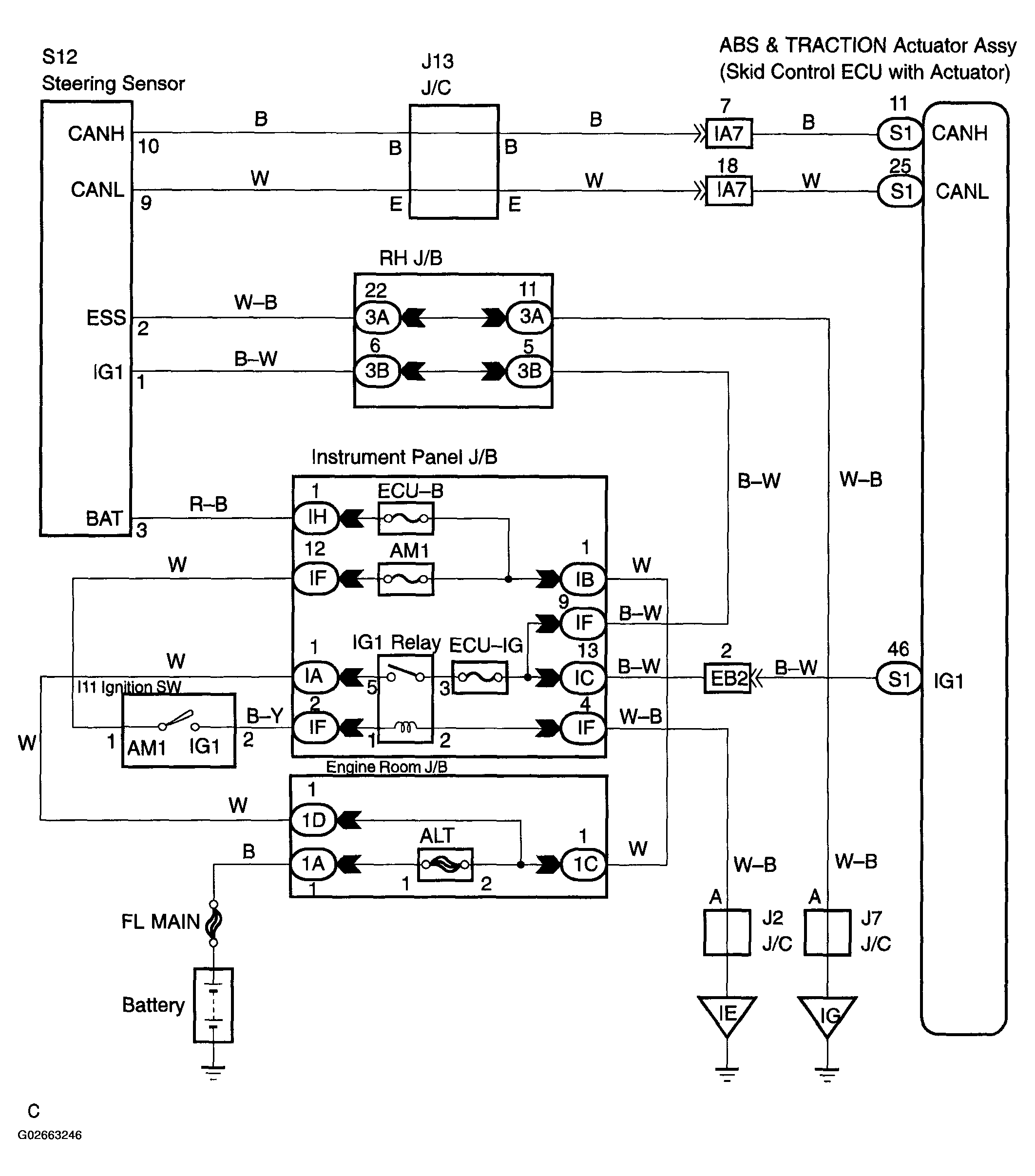

Fig 1: Wiring Diagram
G02663246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

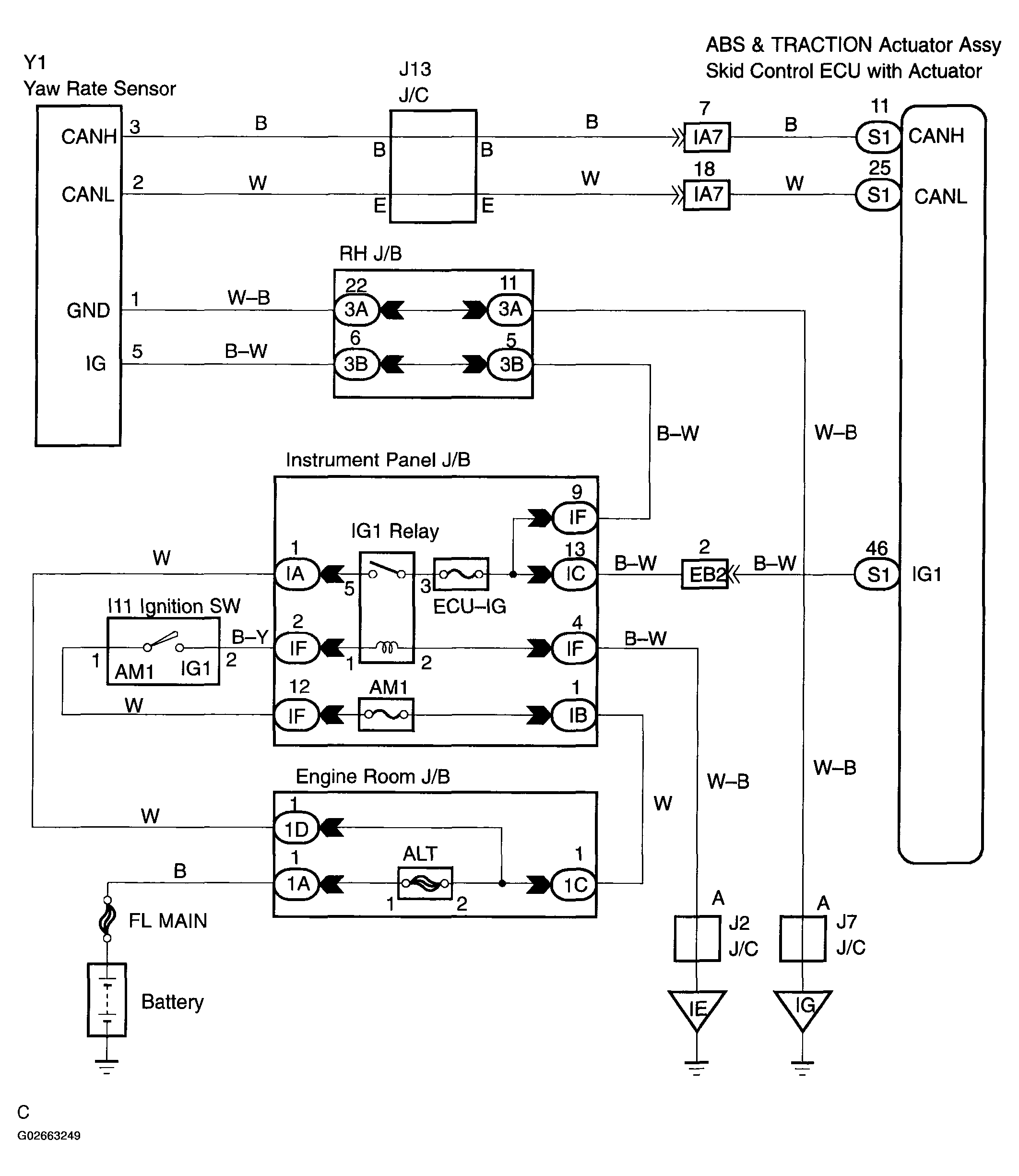

Fig 1: Wiring Diagram
G02663249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
