Circuit Description

The steering sensor signal is sent to the skid control ECU through the CAN communication system. When there is a malfunction in the communication system, the DTC it will be detected by the diagnosis function.

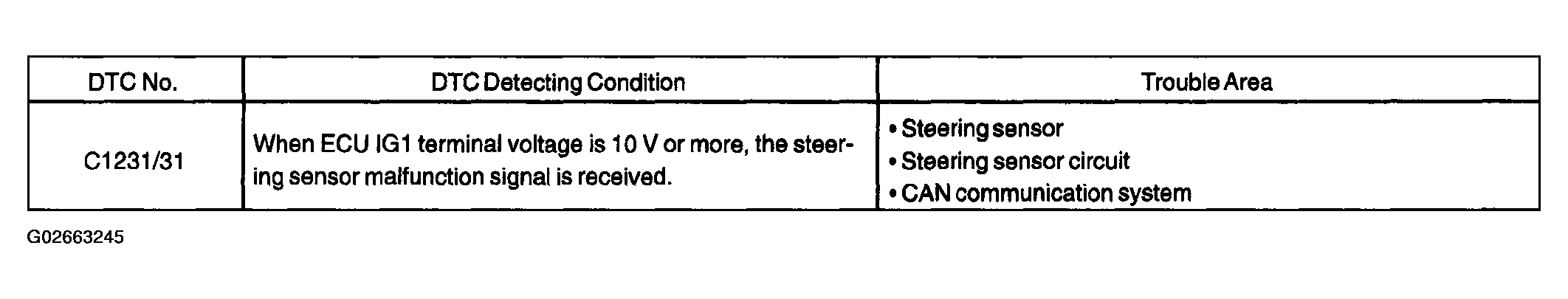

Fig 1: DTC Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

The yaw rate and deceleration sensors detect any gravity applied to the vehicle and transmit the signal to the skid control ECU via the CAN communication system.

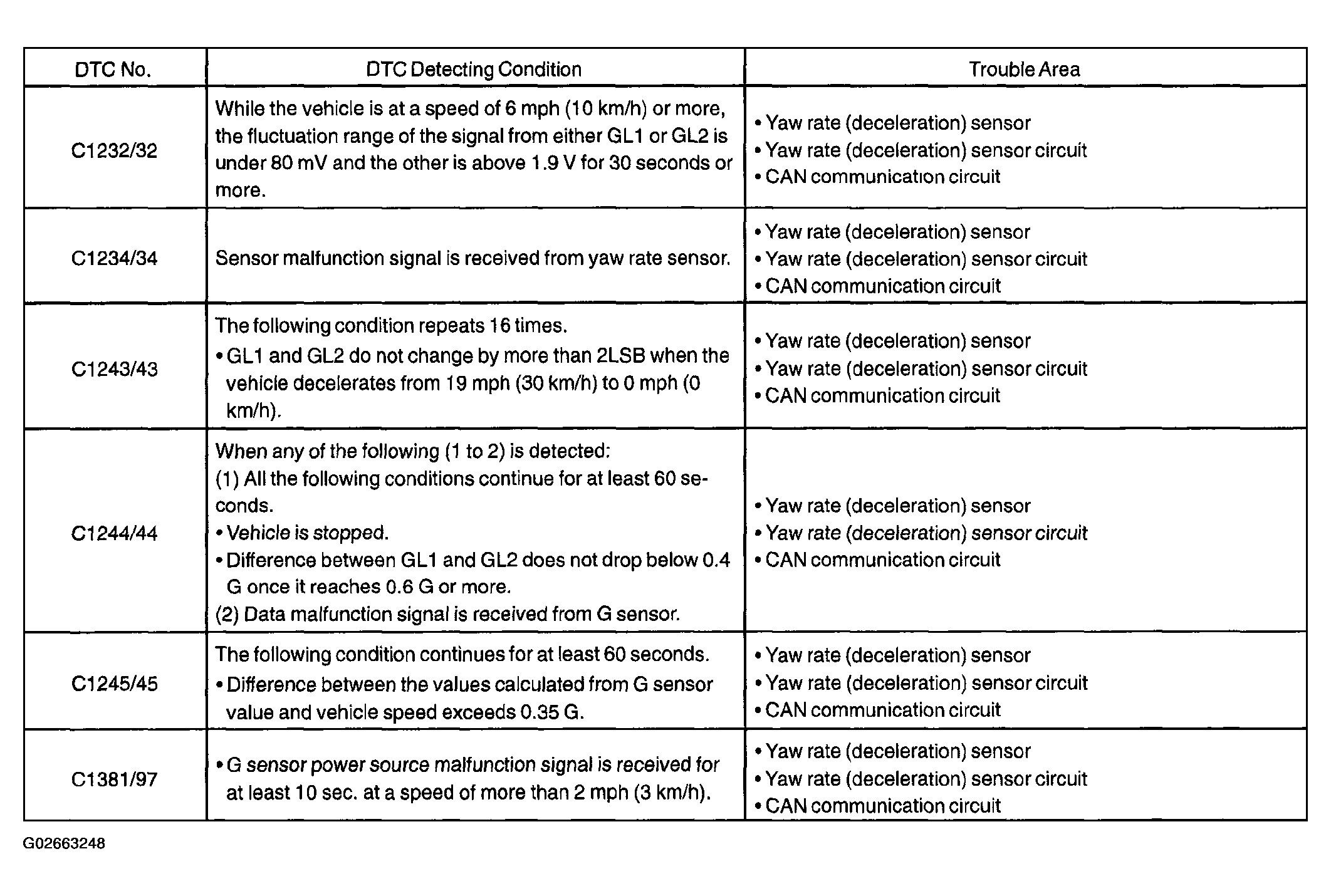

Fig 1: DTC Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
