DTC C1224/44: Ne Signal Circuit: Wiring Diagram

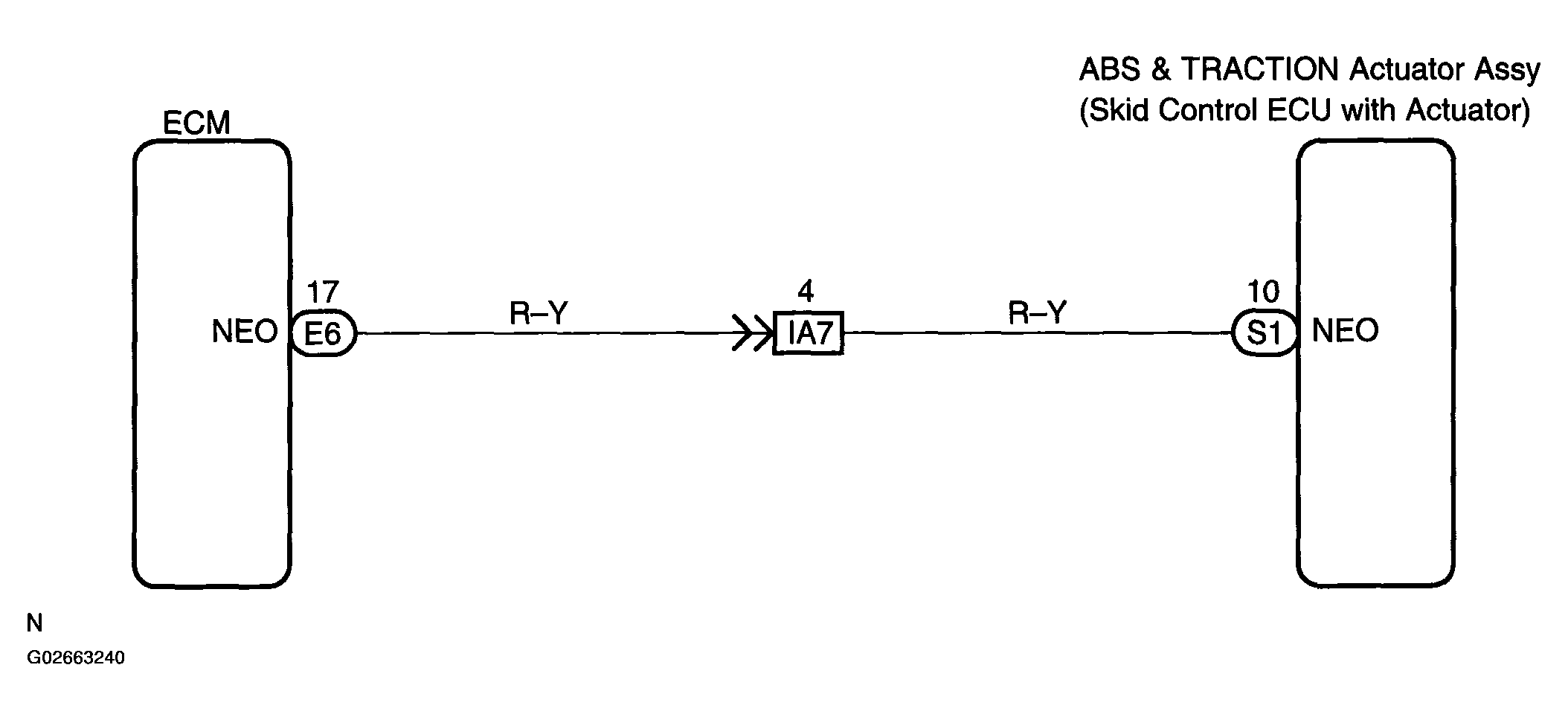

Fig 1: Wiring Diagram

G02663240

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
