Circuit Description

The skid control ECU receives engine revolution speed signals (NE signals) from the ECM.

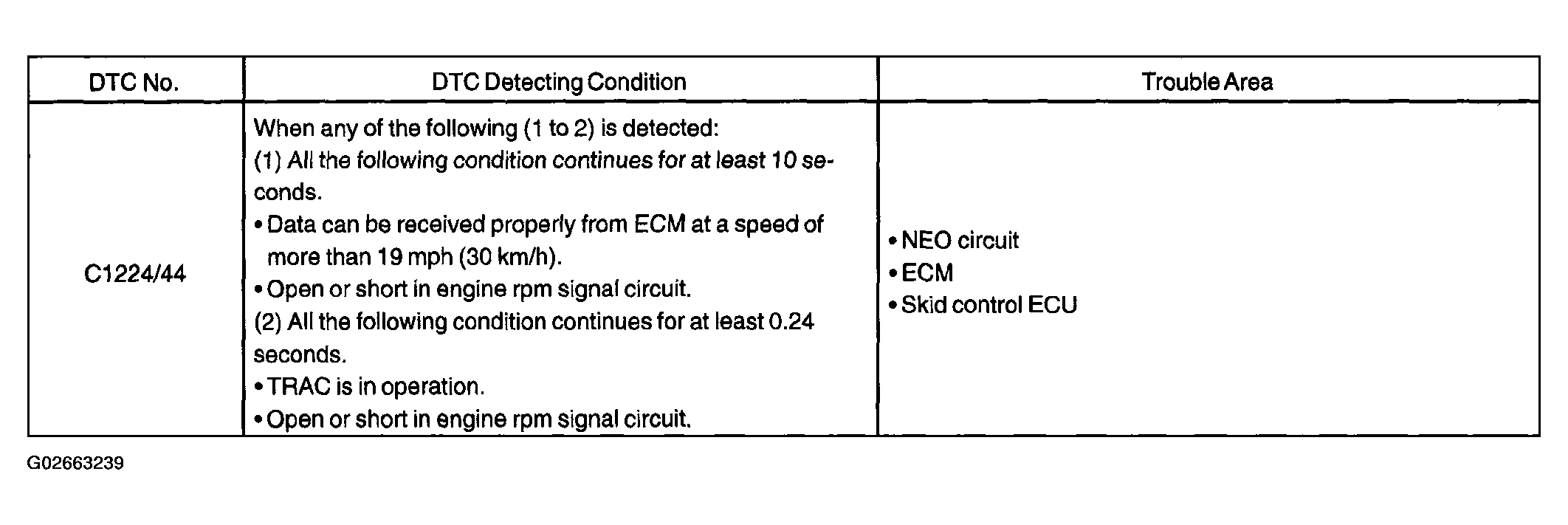

Fig 1: DTC Chart

G02663239

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
