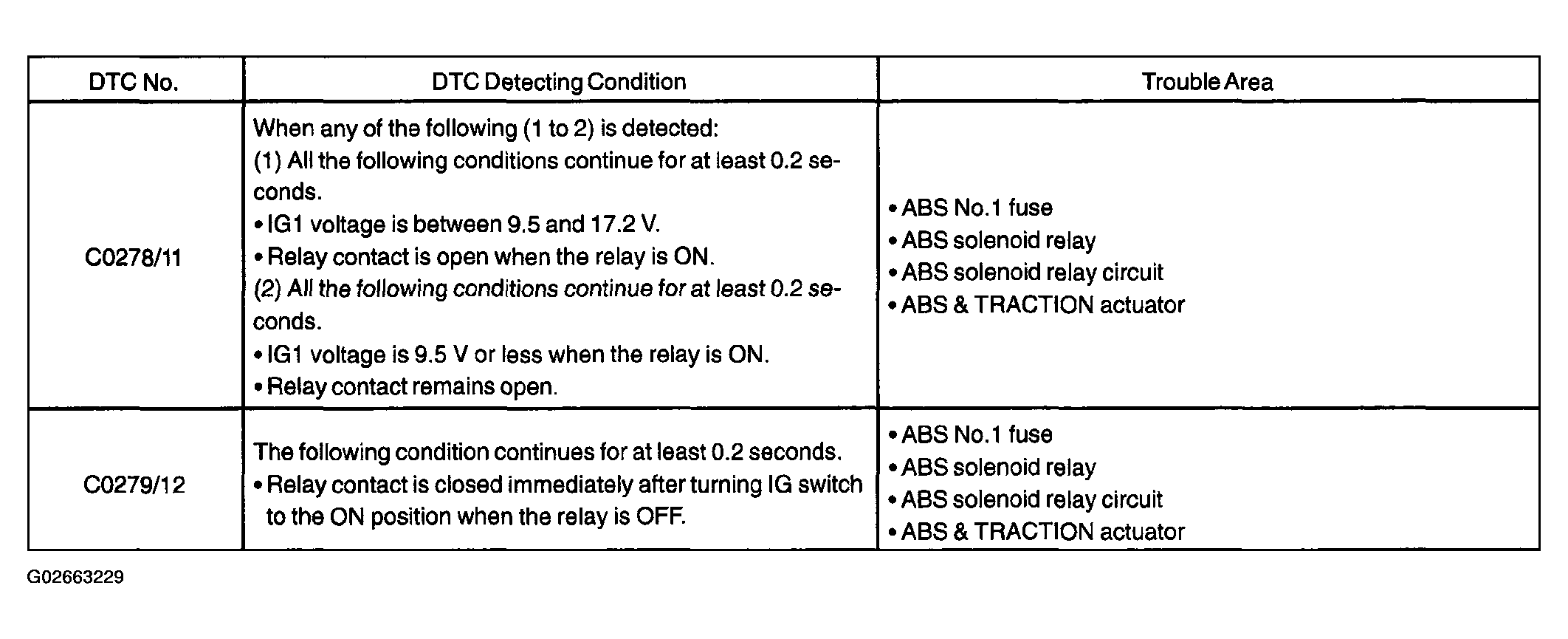

Circuit Description
The ABS solenoid relay is built in the ABS & TRACTION actuator assy. This relay supplies power to each ABS solenoid. If the initial check is OK, after the ignition switch is turned to the ON position, the relay goes on.
