DTC C0273/13, C0274/14, C1361/91: Open/B+ Short Circuit In Abs Motor Relay Circuit & Short Circuit In Abs Motor Fail Safe Relay Circuit: Wiring Diagram

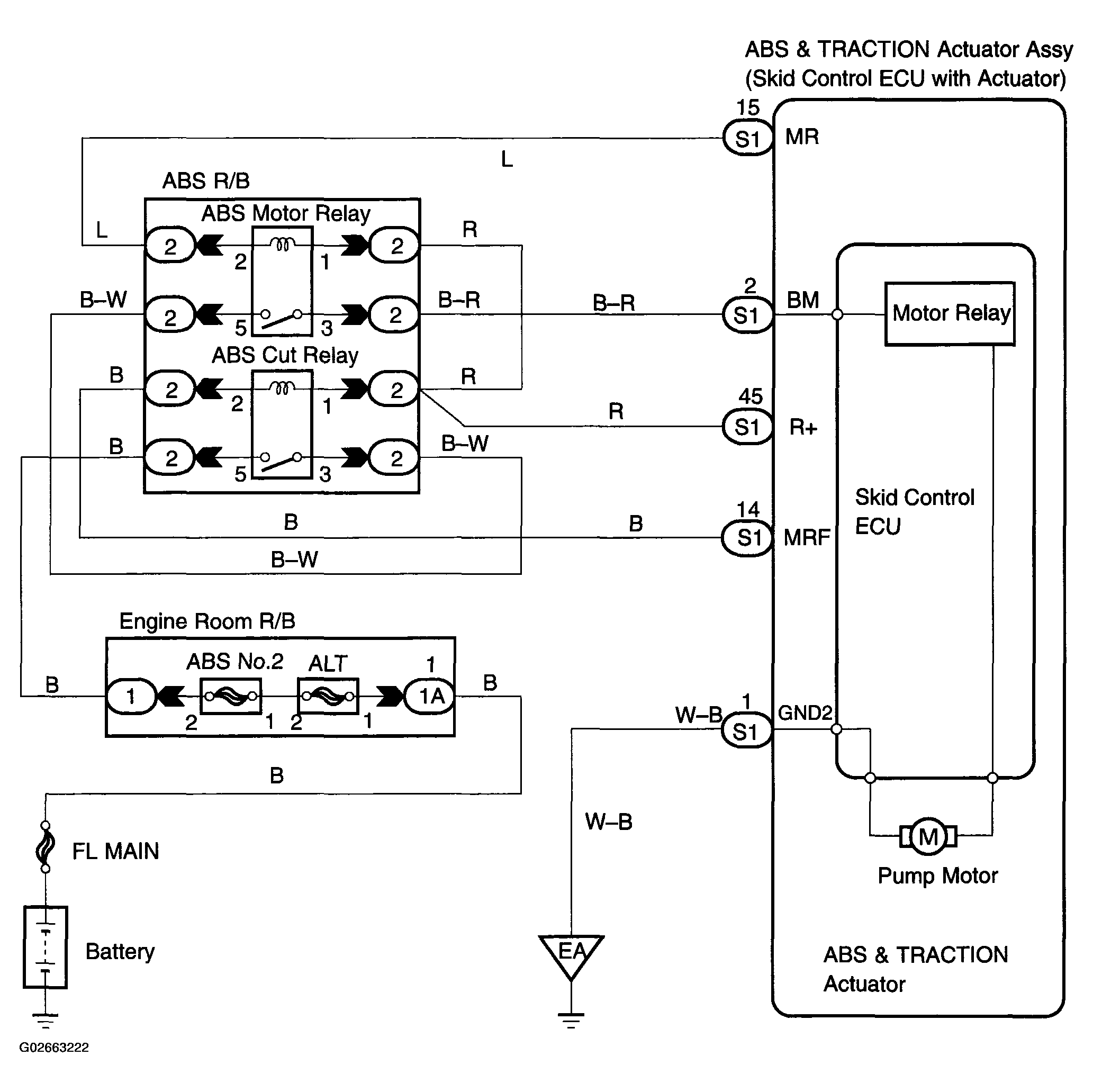

Fig 1: Wiring Diagram
G02663222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
