On-Vehicle Inspection

INSPECT TURN SIGNAL FLASHER RELAY CIRCUIT

Disconnect the connector from the turn signal flasher relay and inspect the connector on wire harness side as shown in the chart.

Fig 1: Identifying Connector Terminal Turn Signal Flasher Relay Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

VOLTAGE CONDITION

Tester connection	Condition	Specified condition
7 - Ground	Constant	Below 1 Ω
1 - Ground	Ignition switch ON	10 to 14 V
1 - Ground	Ignition switch OFF	Below 1 V
4 - Ground	Constant	10 to 14 V

Connect the connector to the turn signal flasher and inspect the wire harness side connector from the back side as shown in the Fig 2.

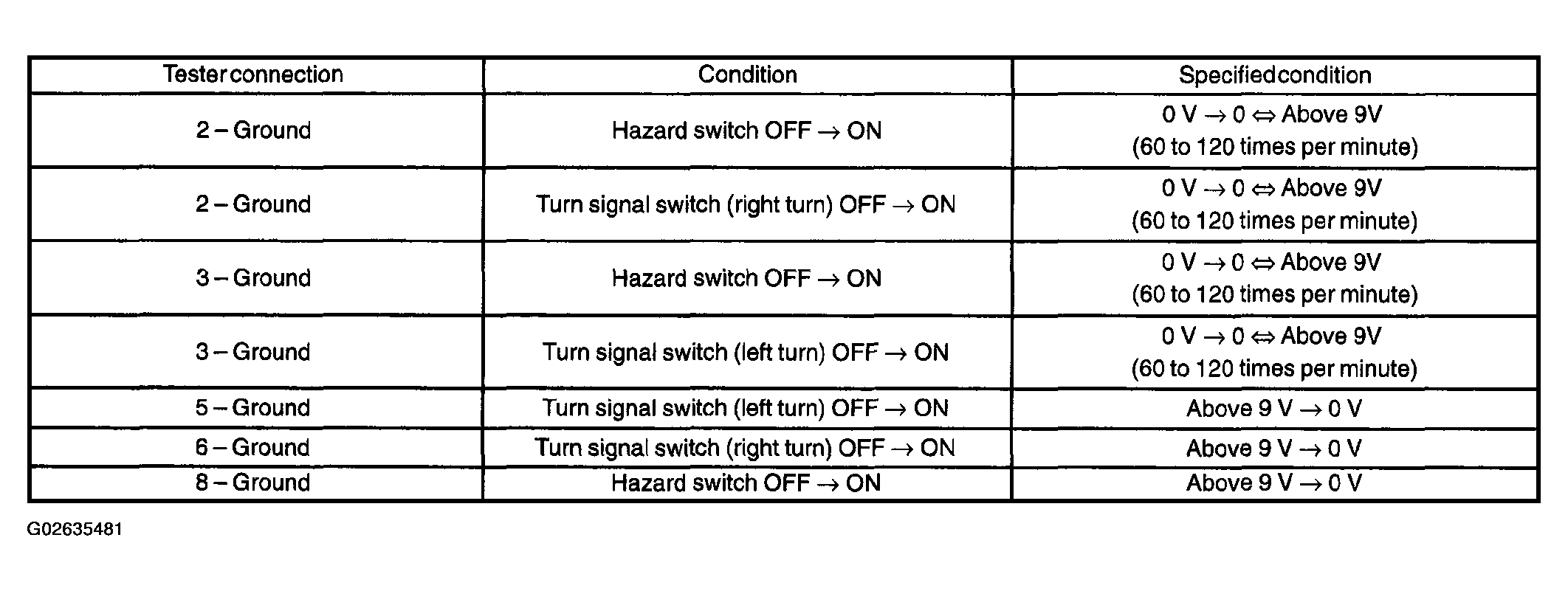

Fig 2: Voltage Specification Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT DAYTIME RUNNING LIGHT RELAY
1. Connect the connector to the daytime running light relay and inspect the wire harness side connector from the back side as shown in the Fig 3 below.

  Fig 3: Identifying Connector Terminal Daytime Running Light Relay
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

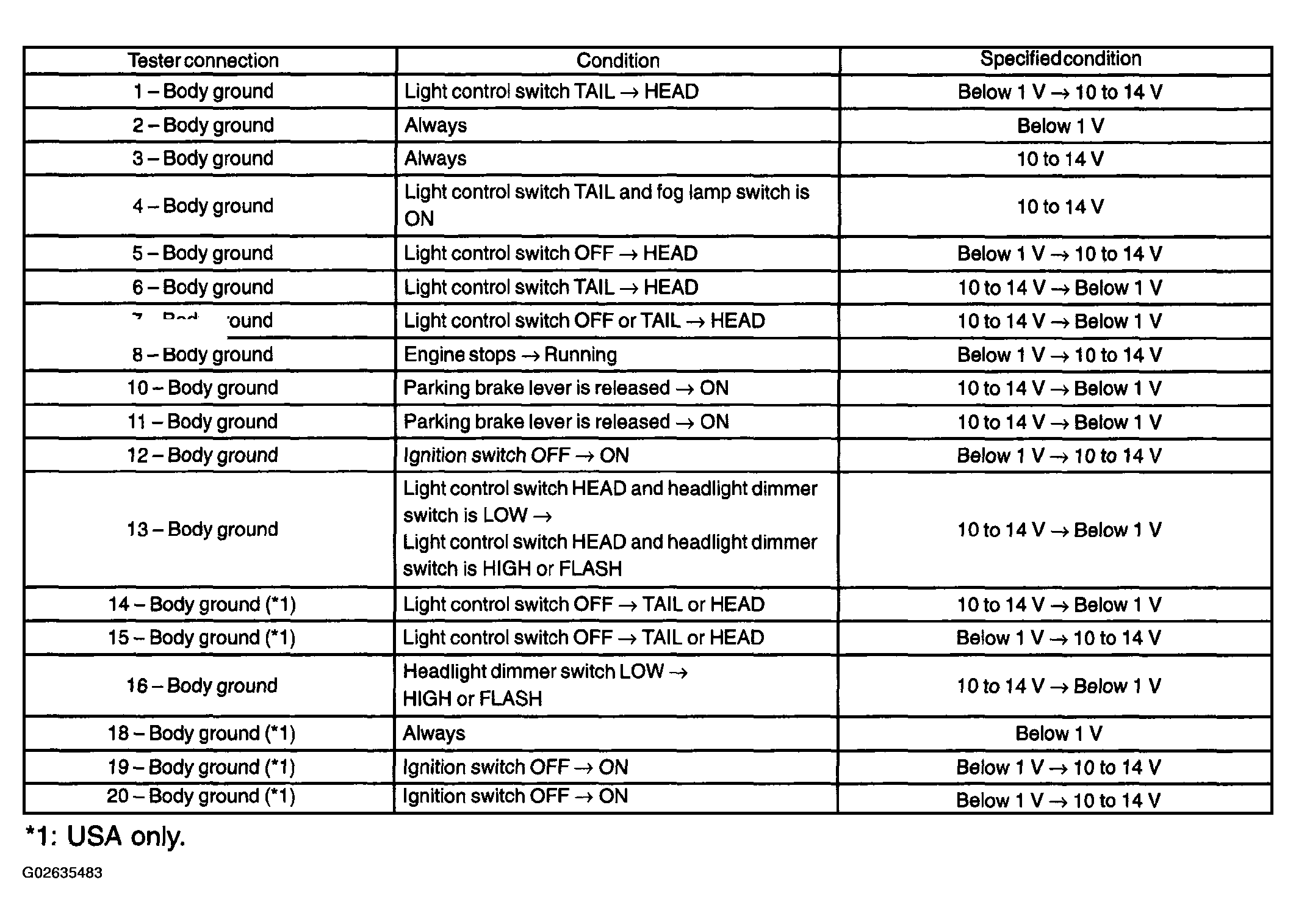

  Fig 4: Voltage Specification Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ILLUMINATED ENTRY SYSTEM OPERATION CHECK
1. The illuminated entry system controls the room lamp assy No.1 and room lamp assy No.2.
2. Check that the lamps come on when any of the doors are opened. Then check that the lamps fade out under any one of the following conditions:
  1. 15 seconds after all the door are closed.
  2. The ignition switch is turned to the ON position with all the doors are closed.
  3. All the doors are closed and locked.
3. Check that the lamps stay on for at least 15 seconds after opening any of the doors before fading out as described in (b). Then check that the lamps fade out in 15 seconds after closing all the doors.
4. Check that the lamps come on when opening any of the doors and fade out when closing and locking all the doors or turning the ignition switch to the ACC or ON position.
BATTERY SAVER OPERATION CHECK
1. Remove the ignition key and close all the doors.
2. Open any door to turn the room light on, and leave it open. Check that the light goes off after approx. 20 minutes.
3. After the room light goes off, close the door.
4. Open any door to turn the room light on, and then open another door. Check that the room light goes off after approx. 20 minutes after opening the doors.
5. Close all the doors. With the ignition key inserted, open any door to turn the room light on, and then remove the ignition key. Check that the room light goes off after approx. 20 minutes.
