LH Headlamp ASSY: Replacement

HINT:

• Installation is in the reverse order of removal.
• COMPONENTS: SEE LH HEADLAMP ASSY .

1. REMOVE FRONT BUMPER COVER (SEE  REPLACEMENT  )
2. REMOVE LH HEADLAMP ASSY
   1. Remove the 3 bolts.
   2. Pull out the headlamp assy LH forward, then disconnect the bracket of body side.

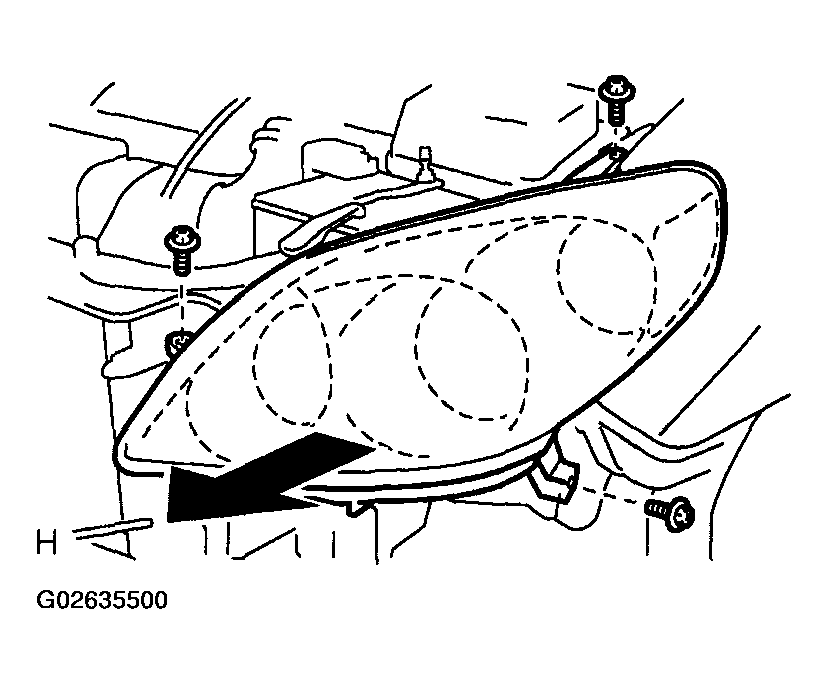

      Fig 1: Removing Bolts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Release the 2 claws and disconnect the connectors.
   4. Remove the headlamp assy LH.

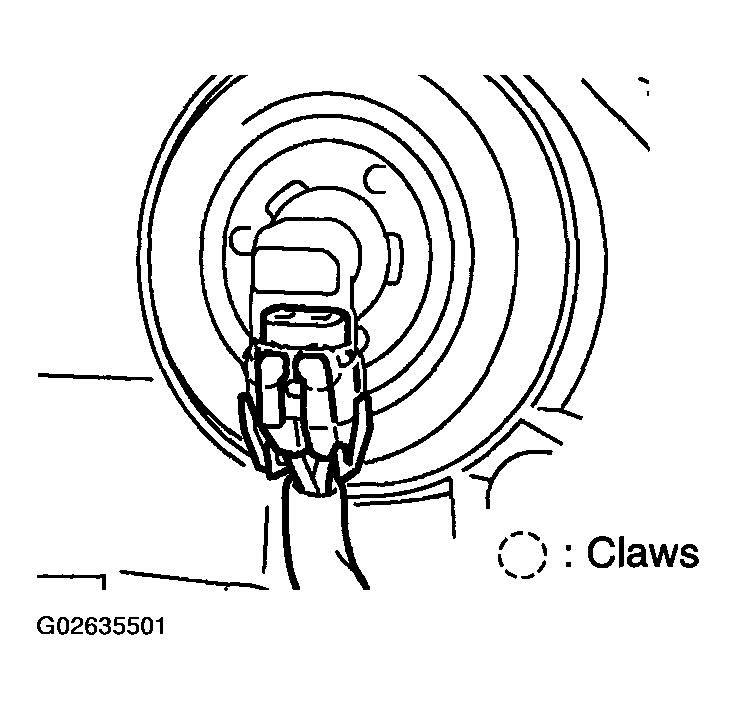

      Fig 2: Disconnecting Connectors

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. HEADLAMP AIMING ADJUSTMENT (SEE  ADJUSTMENT  )
4. FOG LAMP AIMING ADJUSTMENT (SEE  ADJUSTMENT  )
