Steering Wheel Pad And Spiral Cable: Inspection

Vehicle not involved in collision:
INSPECT SUPPLEMENTAL RESTRAINT SYSTEM
1. Check a diagnostic system (See PRE-CHECK ).
2. Do a visual check which includes the following item with the steering wheel pad (with airbag) installed in the vehicle.
  Check cuts, minute cracks or marked discoloration on the steering wheel pad top surface and in the grooved portion.
Vehicle involved in collision with airbag not deployed:
INSPECT SUPPLEMENTAL RESTRAINT SYSTEM
1. Check a diagnostic system (See PRE-CHECK )

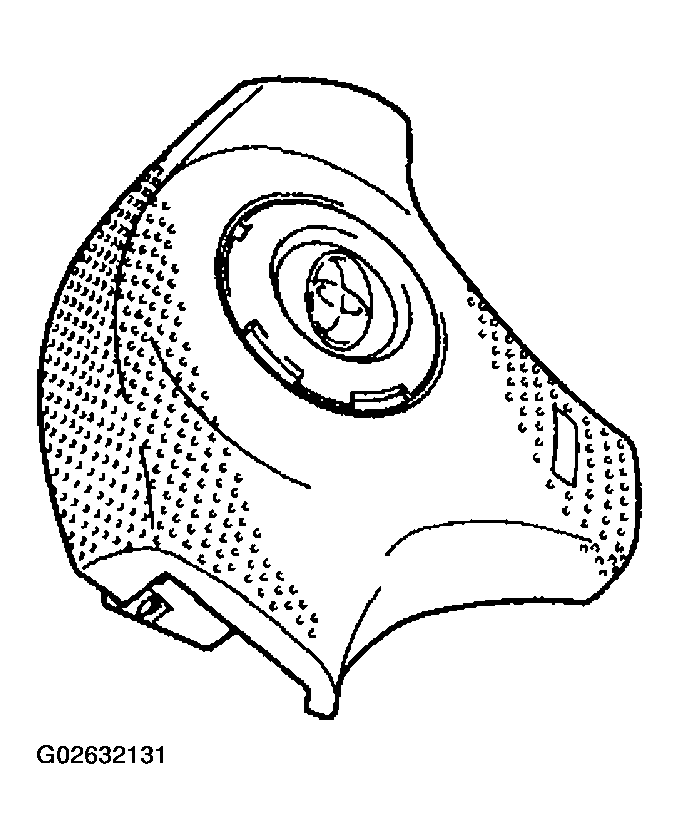

  Fig 1: Identifying Steering Wheel Pad
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Do a visual check which includes the following items with the steering wheel pad (with airbag) removed from the vehicle.
  - Check cuts, minute cracks or marked discoloration on the steering wheel pad top surface and in the grooved portion.
  - Check cuts and cracks in wire harness, and chipping in connectors.

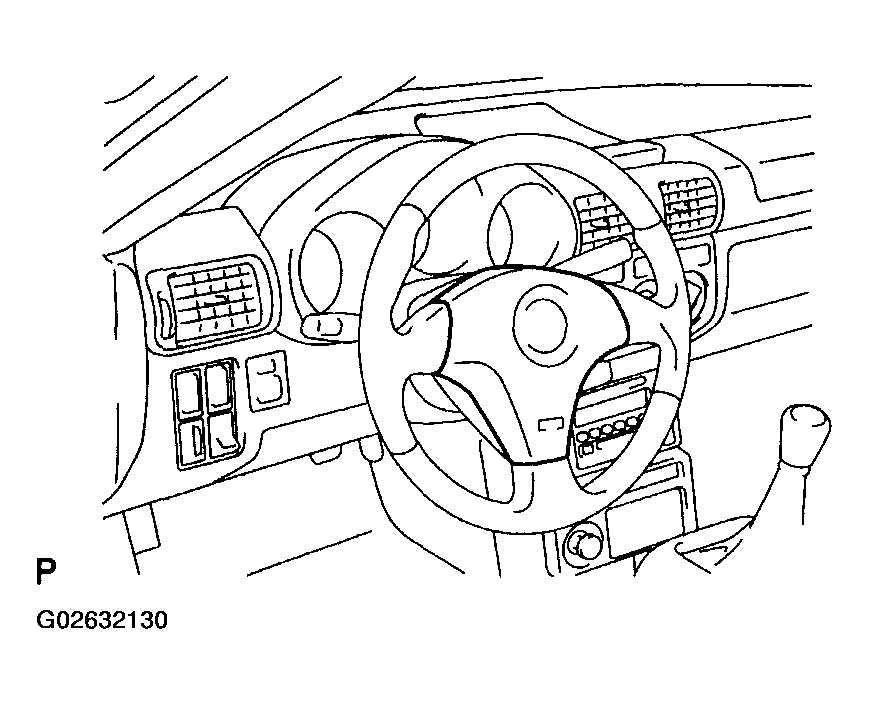

    Fig 2: Identifying Steering Wheel Pad With Airbag
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - Check the deformation of the horn button contact plate of the steering wheel.
CAUTION: For removal and installation of the steering wheel pad, see REMOVAL and . INSTALLATION Be sure to follow the correct procedure.

Fig 3: Identifying Horn Button Contact Plate
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:
- If the horn button contact plate of the steering wheel is deformed, never repair it. Always replace the steering wheel assembly with a new one.
- There should be no interference between the steering wheel pad and steering wheel, and the clearance should be uniform all the way around when the new steering wheel pad is installed on the steering wheel.

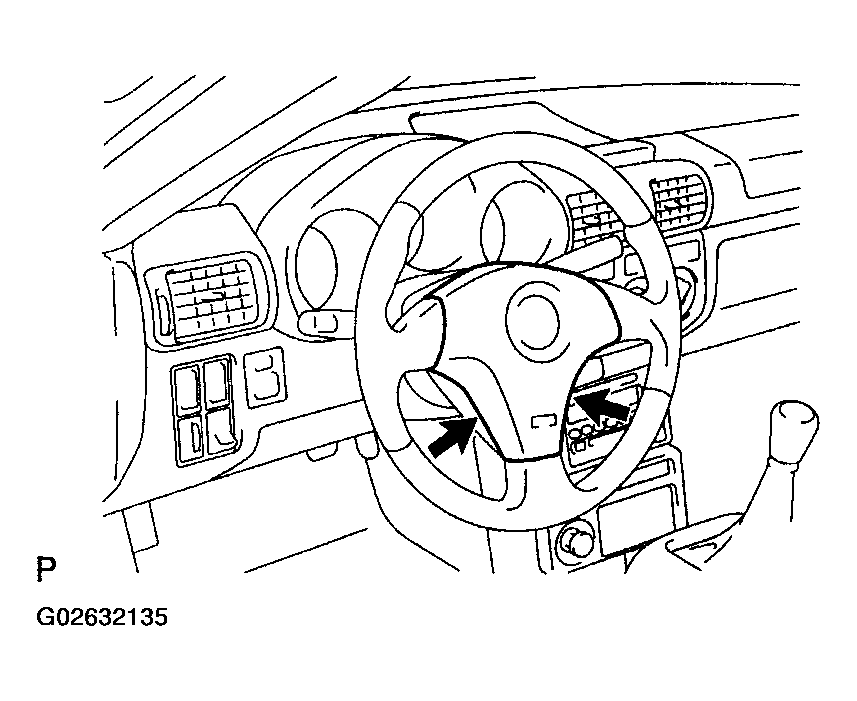

Fig 4: Inspecting Steering Wheel Pad And Wheel Clearance
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Vehicle involved in collision and airbag is deployed:
INSPECT SUPPLEMENTAL RESTRAINT SYSTEM
1. Check a diagnostic system (See PRE-CHECK ).
2. Do a visual check which includes the following items with the steering wheel pad (with airbag) removed from the vehicle.
  - Check the deformation on the horn button contact plate of the steering wheel.
  - Check the damage on the spiral cable connector and wire harness.
CAUTION: For removal and installation of the steering wheel pad, see REMOVAL and INSTALLATION , and be sure to follow the correct procedure.

HINT:
- If the horn button contact plate of the steering wheel is deformed, never repair it. Always replace the steering wheel assembly with a new one.

  Fig 5: Identifying Horn Button Contact Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- There should be no interference between the steering wheel pad and steering wheel, and the clearance should be uniform all the way around when the new steering wheel pad is installed on the steering wheel.

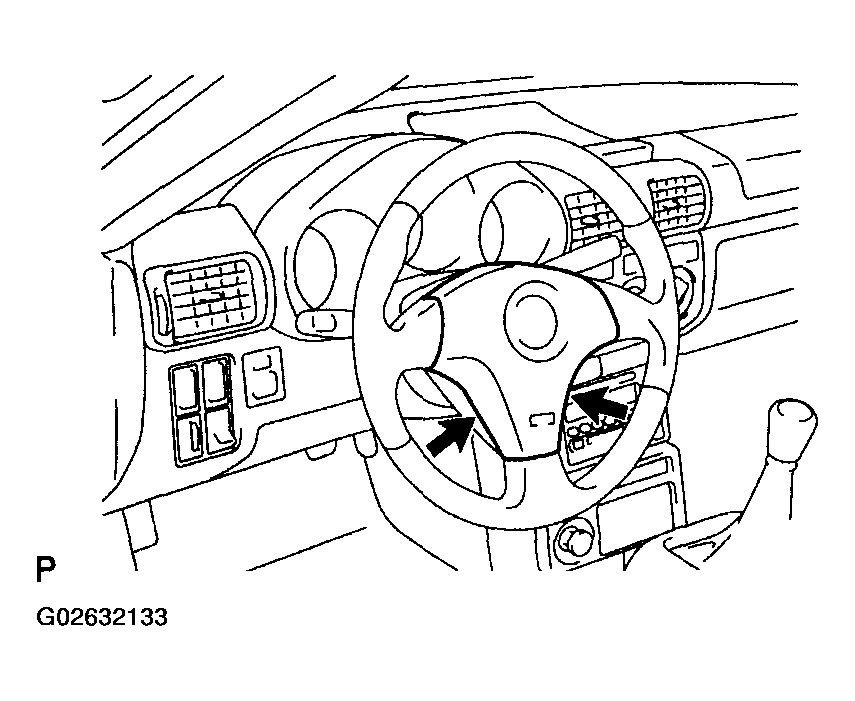

Fig 6: Inspecting Steering Wheel And Wheel Pad Clearance
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
