Front Passenger Airbag Assembly: Installation

NOTE: Never use airbag parts from another vehicle. When replacing parts, replace them with new ones.

INSTALL FRONT PASSENGER AIRBAG ASSEMBLY
1. Install the front passenger airbag assembly with the 2 nuts.
2. Install the bolt.
  Torque: 20 N.m (205 kg.fcm, 15ft.lbf)
  CAUTION:
  - When installing the front passenger airbag assembly, take care that the wiring does not interfere with other parts and is not pinched between other parts.
  - Make sure that no foreign objects are trapped between the airbag and within the module.
  NOTE: If the front passenger airbag assembly has been dropped, or there are cracks, dents or other defects in the case or connector, replace the front passenger airbag assembly with a new one.
3. Install the airbag wire harness clamp.

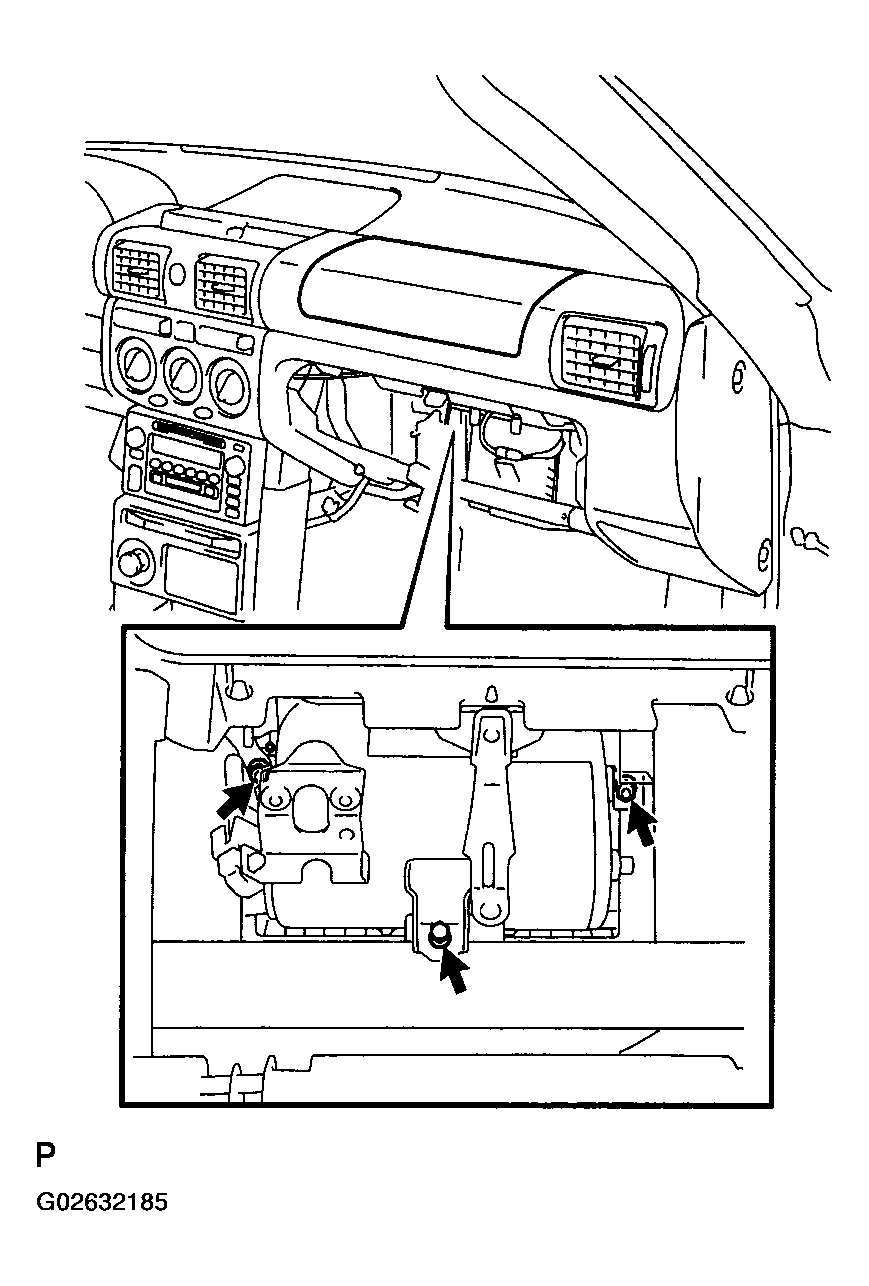

  Fig 1: Installing Airbag Wire Harness Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the passenger airbag manual on-off switch with the 2 bolts.

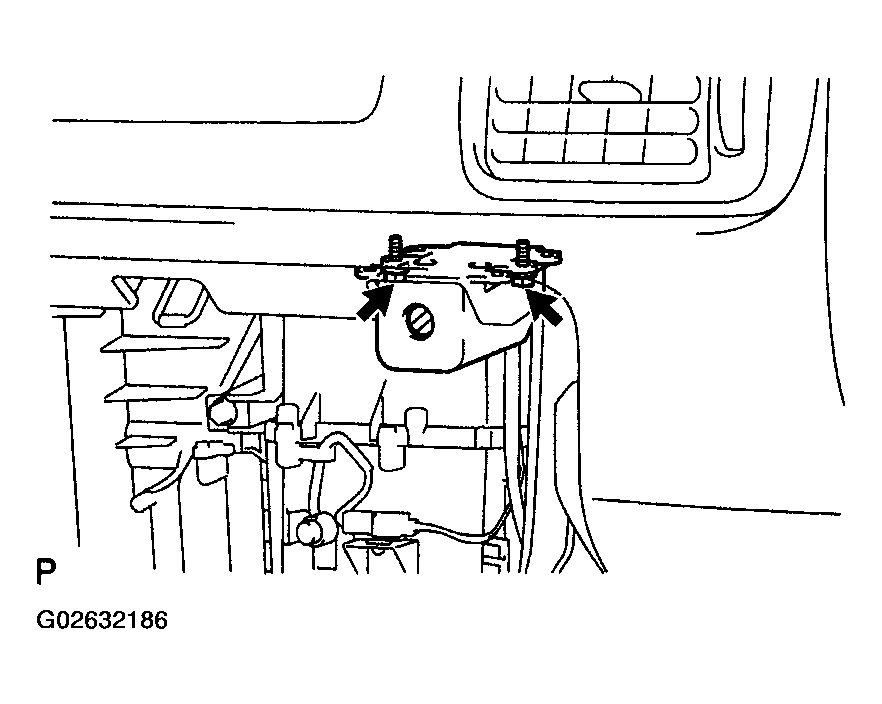

  Fig 2: Identifying Passenger Airbag Manual On-Off Switch Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Install the hood release lever with the 2 bolts.
Fig 3: Identifying Hood Release Lever And Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT AIRBAG CONNECTOR
1. Connect the airbag connector.
2. Install the glove compartment door.

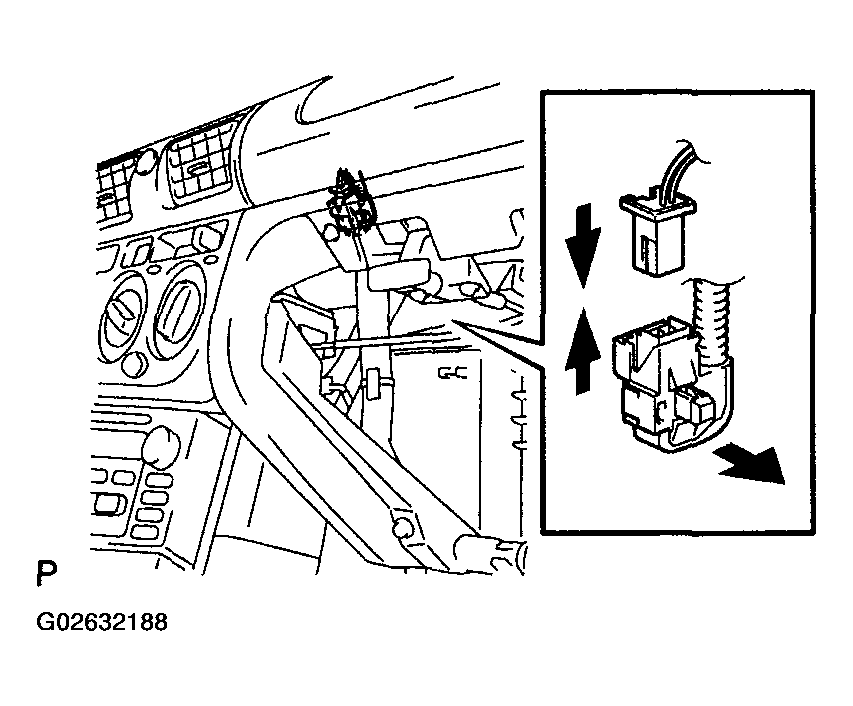

Fig 4: Connecting Airbag Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
