Front Airbag Sensor: Inspection

VEHICLES NOT INVOLVED IN COLLISION
Check a diagnostic system (See PRE-CHECK ).
VEHICLES INVOLVED IN COLLISION
1. Check a diagnostic system (See PRE-CHECK ).
2. If the front fender of the car or its periphery is damaged, do a visual check for damage to the front airbag sensor, which includes the following items even if the airbag was not deployed:
  - Check the bracket deformation.
  - Check the paint peeling off the bracket.
  - Check the cracks, dents or chips in the case.
  - Check the cracks, dents, chipping and scratches in the connector.
  - Check the peeling off of the label or damage to the serial number.

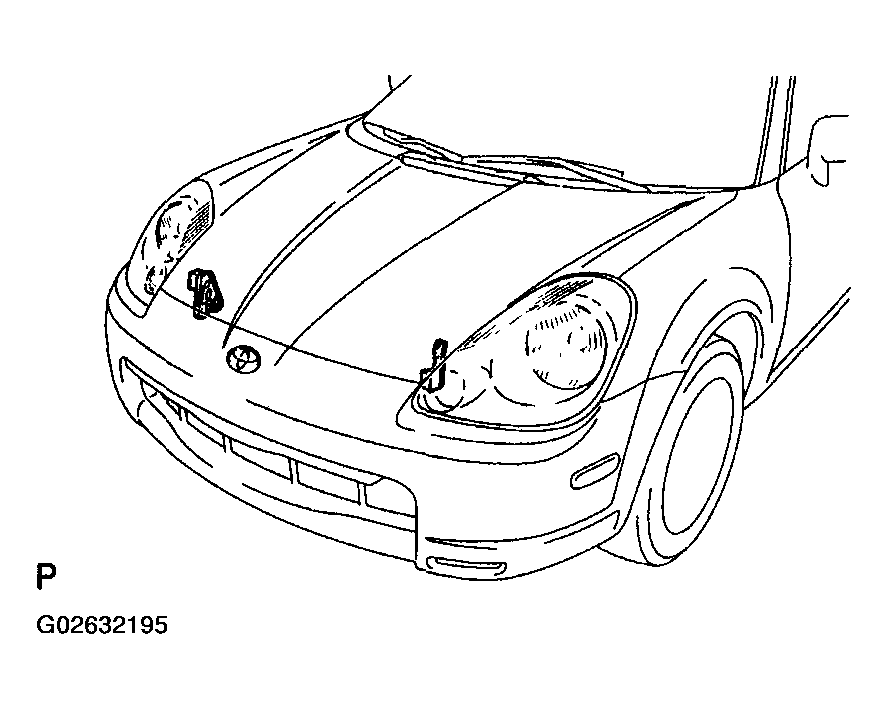

Fig 1: Identifying Front Airbag Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying LH And RH Airbag Sensors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
