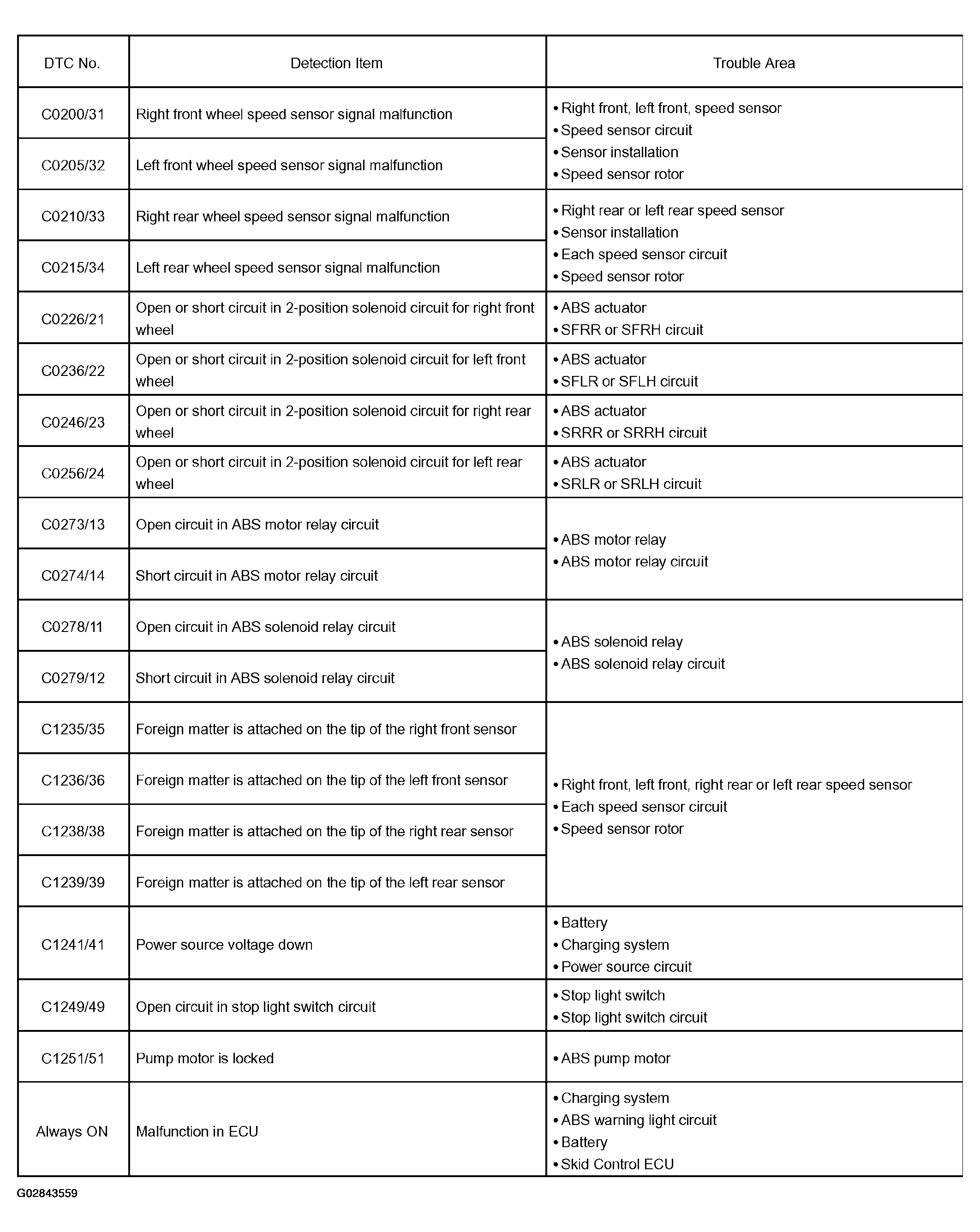

Diagnostic Trouble Code Chart
HINT:
- Using SST 09843-18040, connect terminals Tc and CG of the DLC3.
- If no abnormality is found in inspection parts, inspect the ECU.
- If a malfunction code is displayed during the DTC check, check the circuit listed for the code.
