Rear Brake Caliper: Removal

  1. REMOVE REAR WHEEL

    Remove the wheel and temporarily fasten the disc with the hub nuts.

    Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)

  2. DISCONNECT PARKING BRAKE CABLE (See  REPLACEMENT  )
  3. DISCONNECT FLEXIBLE HOSE FROM CALIPER

    Remove the union bolt and gasket from the caliper, then disconnect the flexible hose.

    Torque: 30 N.m (310 kgf.cm, 22 ft.lbf)

    HINT:

    • At the time of installation, insert the flexible hose lock securely in the lock hole in the caliper.
    • Use a container to catch the brake fluid as it drains out.

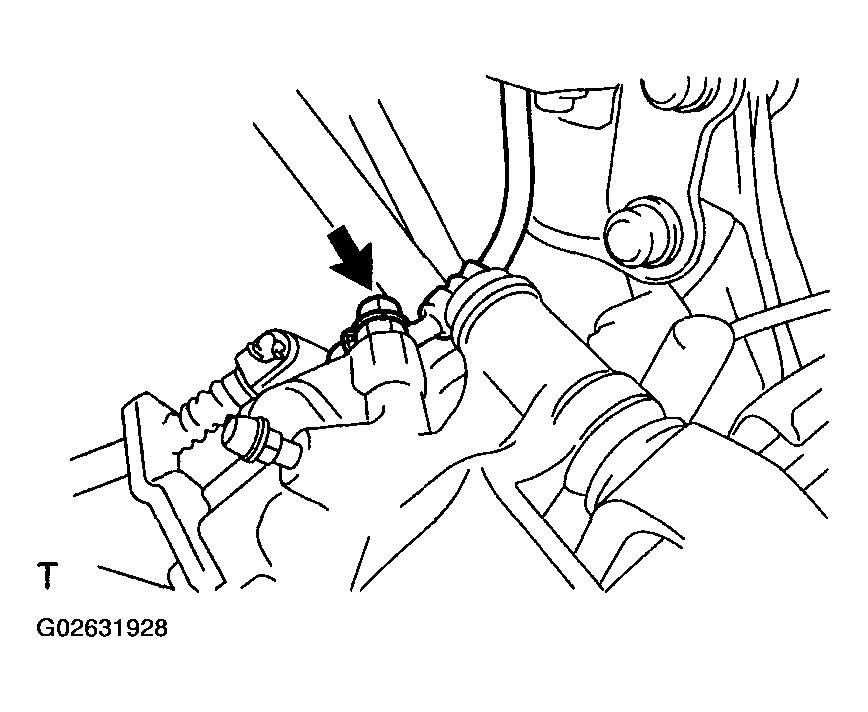

    Fig 1: Identifying Union Bolt
    G02631928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE CALIPER

    Remove the installation bolt and caliper from the torque plate.

    Torque: 20 N.m (204 kgf.cm, 15 ft.lbf)

  5. REMOVE 2 PADS WITH 4 ANTI-SQUEAL SHIMS
  6. REMOVE 4 PAD SUPPORT PLATES

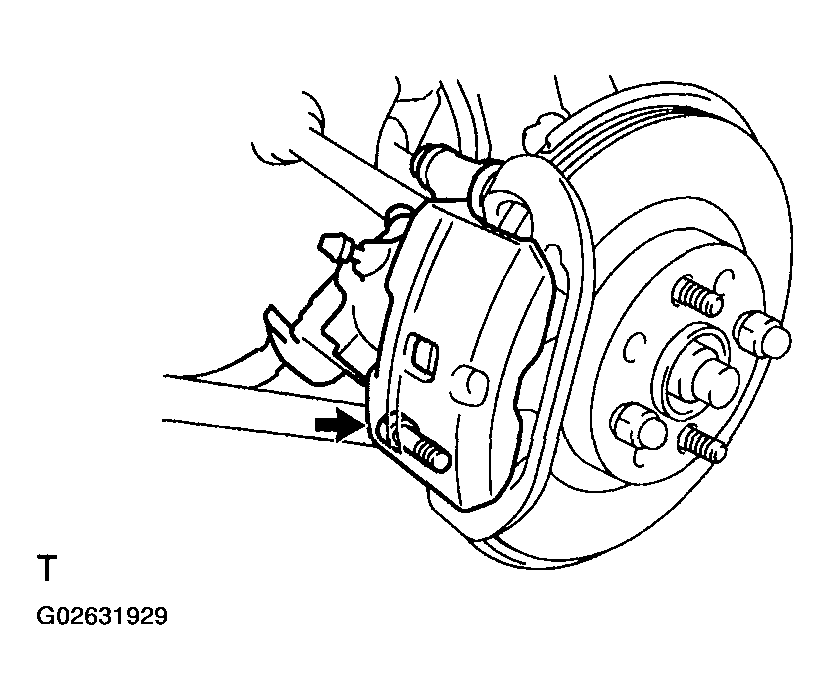

    Fig 2: Identifying Installation Bolt
    G02631929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
