Front Brake Pad: Replacement

  1. REMOVE FRONT WHEEL

    Remove the wheel and temporarily fasten the disc with the hub nuts.

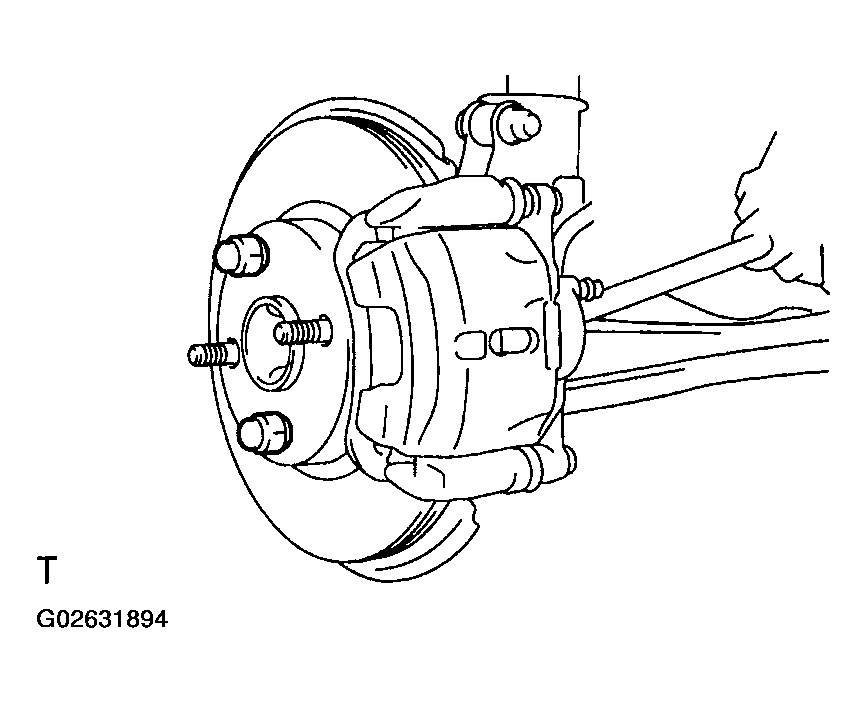

    Fig 1: Removing Front Wheel
    G02631894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT PAD LINING THICKNESS

    Check the pad thickness through the caliper inspection hole and replace the pads if they are not within the specification.

    Minimum thickness: 1.0 mm (0.039 in.)

  3. DISCONNECT FLEXIBLE HOSE FROM SHOCK ABSORBER

    Remove the bolt and disconnect the flexible hose.

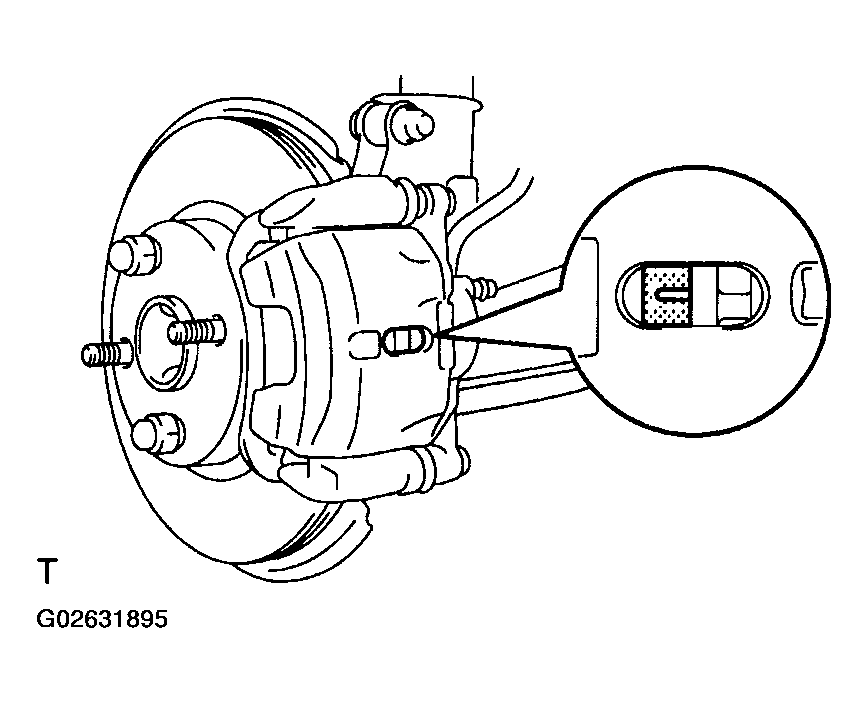

    Fig 2: Inspecting Pad Lining Thickness
    G02631895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. LIFT UP CALIPER
    1. Hold the sliding pin and remove the bottom side installation bolt.

      HINT:

      Do not disconnect the flexible hose from the brake caliper.

      Fig 3: Lifting Up Caliper
      G02631896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Lift up the caliper and suspend it securely.
  5. REMOVE 2 PADS WITH 4 ANTI-SQUEAL SHIMS
  6. REMOVE 2 PAD SUPPORT PLATES
    NOTE: The support plates can be used again provided that they have sufficient rebound, no deformation, cracks or wear. Remove all rust, dirt and foreign particles.
  7. CHECK DISC THICKNESS AND RUNOUT (See  INSPECTION  )
    Fig 4: Removing Pad Support Plates
    G02631897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL PAD SUPPORT PLATES

    Install the 2 pad support plates.

    NOTE: Do not assemble the upper and lower pad support plates in reverse.
  9. INSTALL NEW PADS
    NOTE: When replacing worn pads, the anti-squeal shims must be replaced together with the pads.
    Fig 5: Installing Pad Support Plates
    G02631898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Apply disc brake grease to both sides of the inner anti-squeal shims position outside (See FRONT BRAKE PAD ).
    2. Install the 2 anti-squeal shims on the outer pad.
    3. Install the 2 anti-squeal shims on the inter pad.
      Fig 6: Installing Anti-Squeal Shims On Inner And Outer Pads
      G02631899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the inside pads with the pad wear indicator plate facing downward.
    5. Install the outside pad.

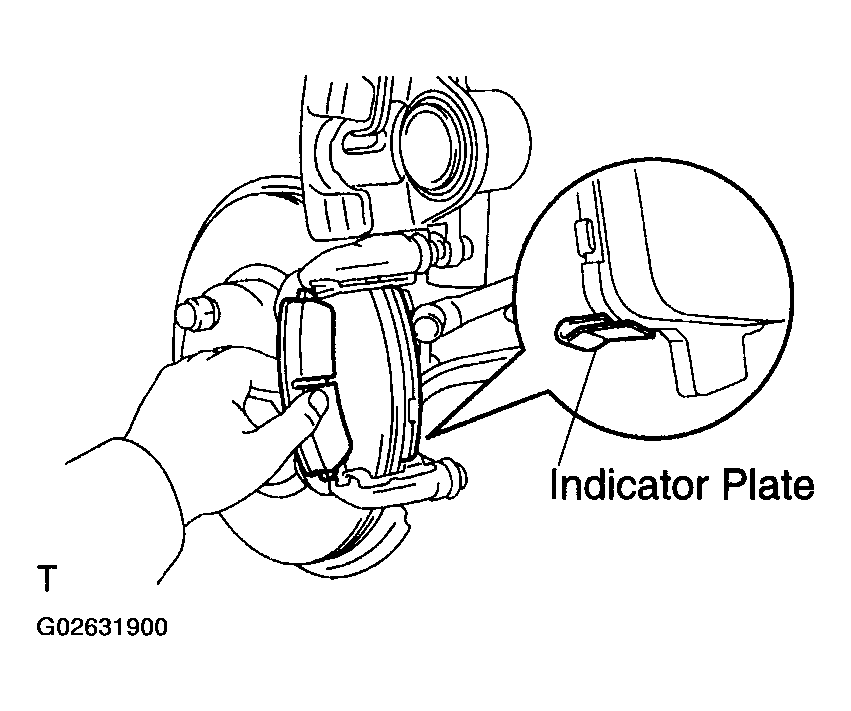

    Fig 7: Identifying Indicator Plate
    G02631900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE: There should be no oil or grease adhering to the friction surfaces of the pads or the disc.
  10. INSTALL CALIPER
    1. Draw out a small amount of brake fluid from the reservoir.
    2. Press in the piston with a hammer handle or similar implement.

      HINT:

      If the piston is difficult to push in, loosen the bleeder plug and push in the piston while letting some brake fluid escape.

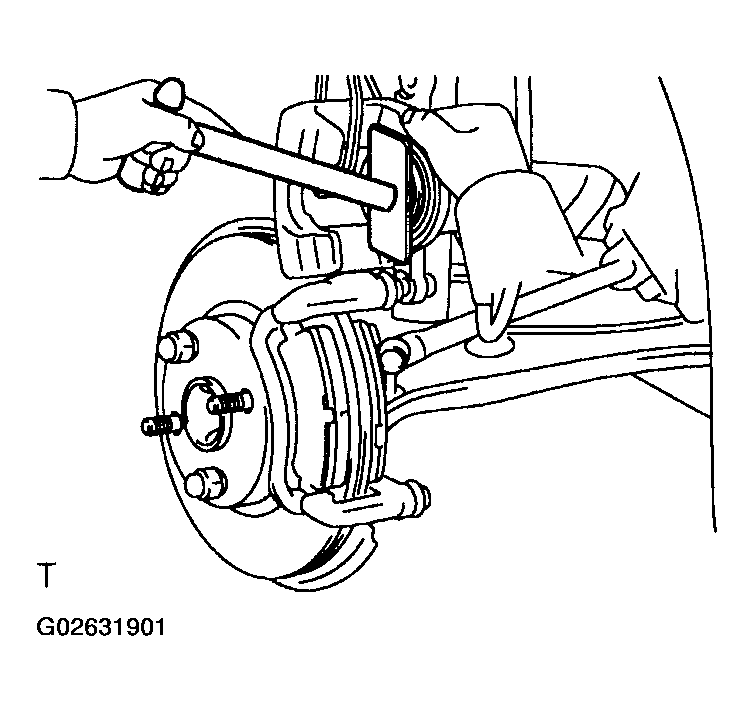

      Fig 8: Pressing In Piston Using A Hammer Handle
      G02631901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Temporarily install the cylinder on the torque plate with bottom side installation bolt.
    4. Hold the sliding pin and torque the installation bolt.

      Torque: 34 N.m (350 kgf.cm, 25 ft.lbf)

  11. CONNECT FLEXIBLE HOSE FROM SHOCK ABSORBER

    Connect the brake hose and install the bolt.

    Torque: 29 N.m (296 kgf.cm, 21 ft.lbf)

  12. INSTALL FRONT WHEEL

    Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)

  13. DEPRESS BRAKE PEDAL SEVERAL TIMES
  14. CHECK THAT FLUID LEVEL IS AT MAX LINE

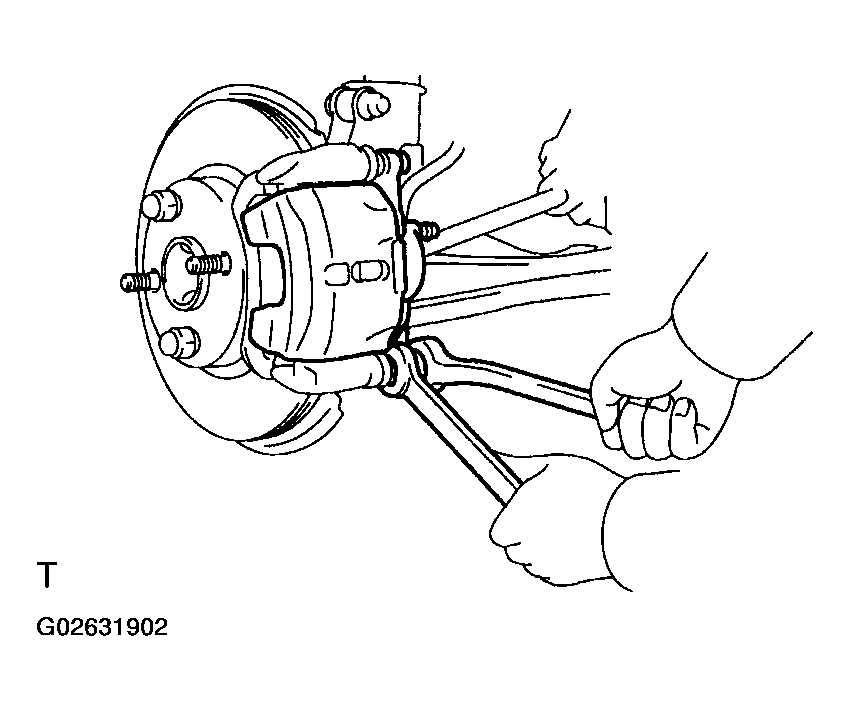

    Fig 9: Installing Front Wheel
    G02631902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
