Front Brake Pad: Components

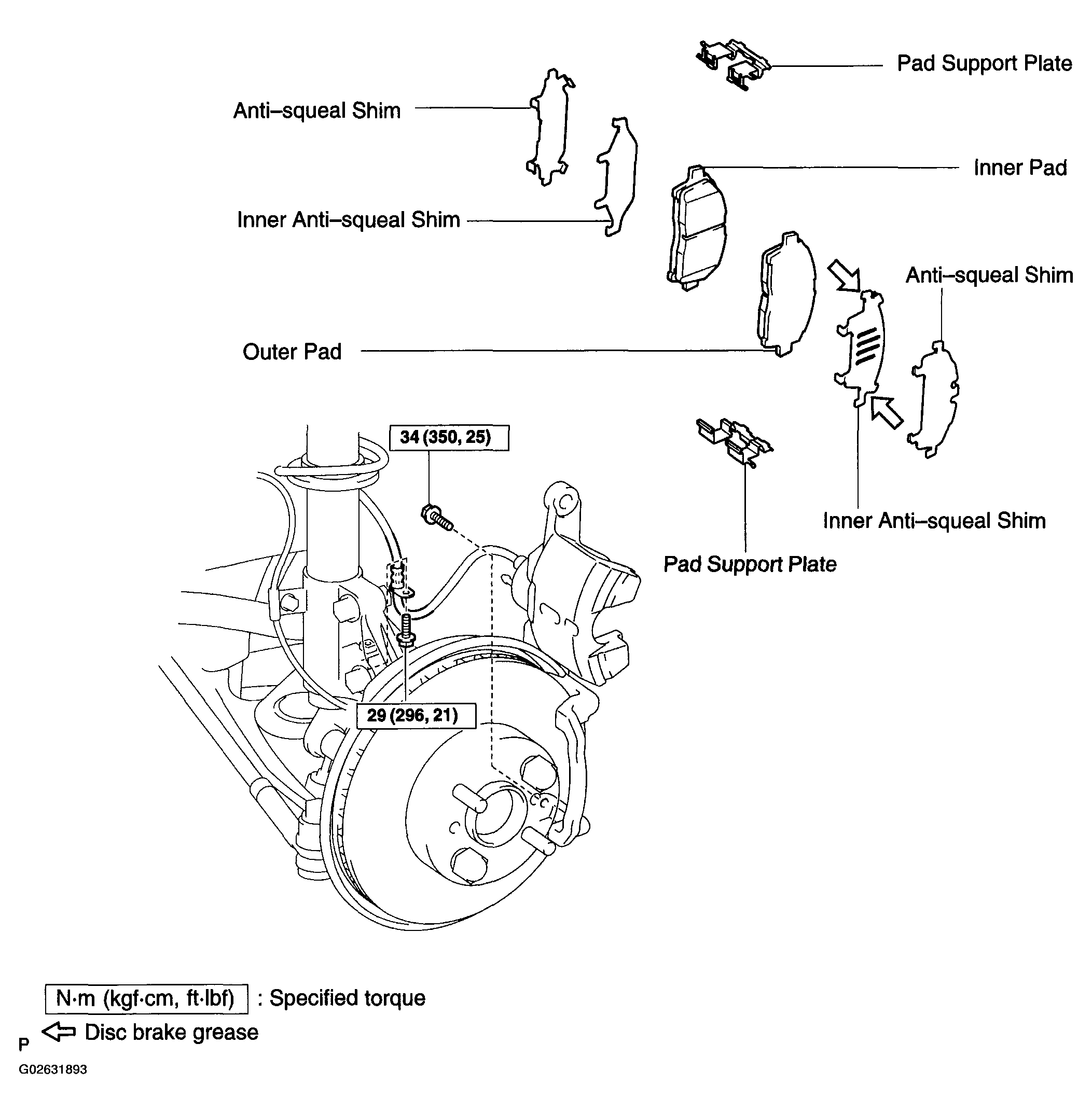

Fig 1: Identifying Front Brake Pad Components

G02631893

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
