Home >> Toyota >> 2005 >> MR2 C65M >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Brakes - Mechanical >> Front Brake Caliper >> Components

Front Brake Caliper: Components

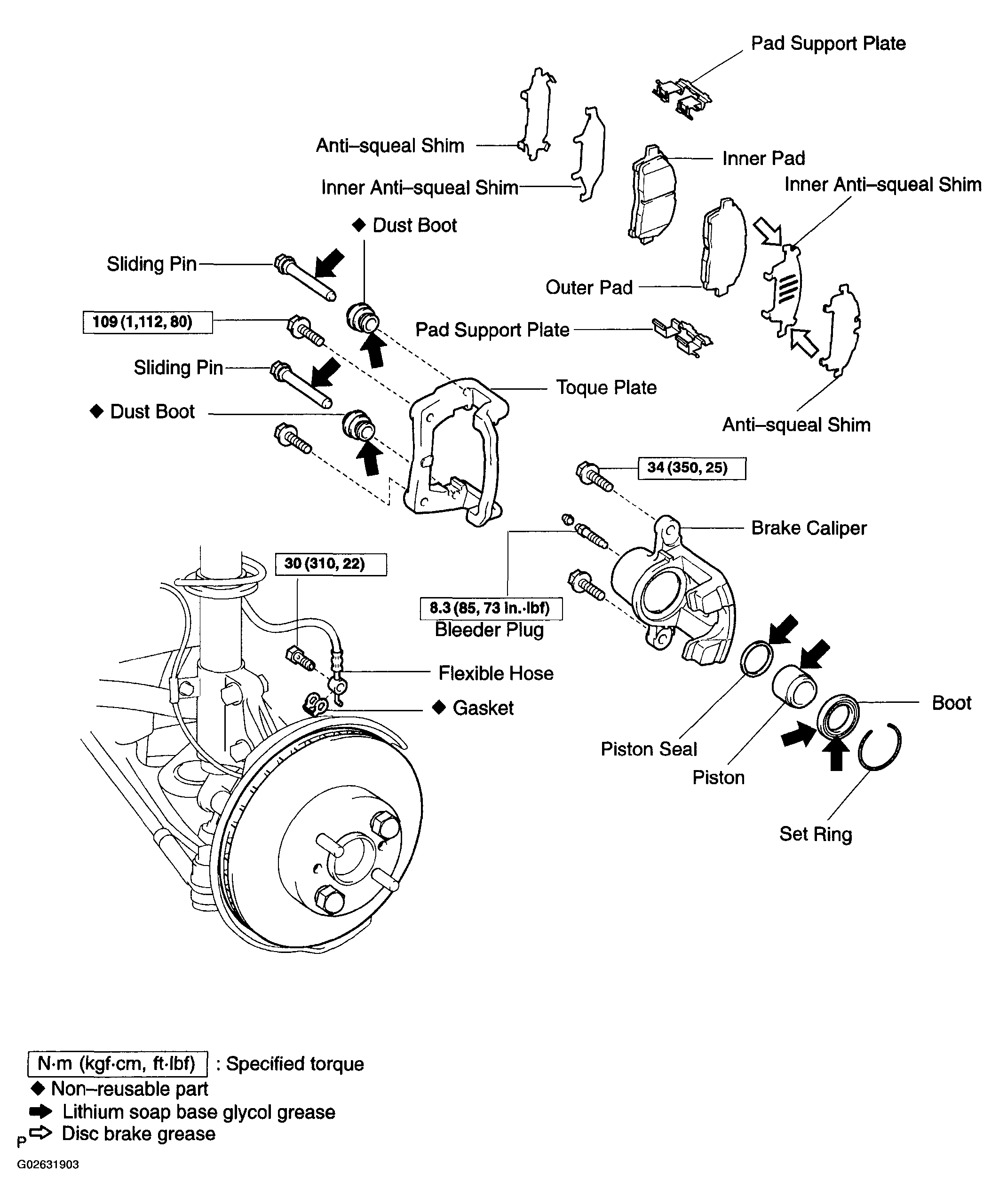

Fig 1: Identifying Front Brake Caliper Components

G02631903

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
