Brake Master Cylinder: Reassembly

COAT PARTS WITH LITHIUM SOAP BASE GLYCOL GREASE, AS SHOWN
INSTALL NO. 2 PISTON AND SPRING
1. Install the No. 2 piston and spring.

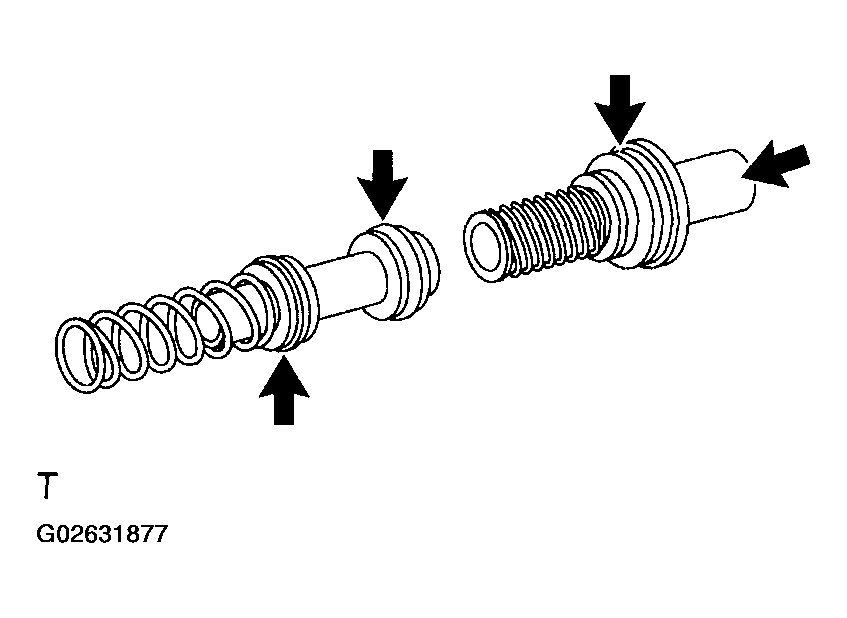

  Fig 1: Coating Parts With Lithium Soap Base Glycol Grease
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver, push the No. 2 piston and spring, then install the straight pin.
INSTALL NO. 1 PISTON AND SPRING
1. Install the No. 1 piston and spring.

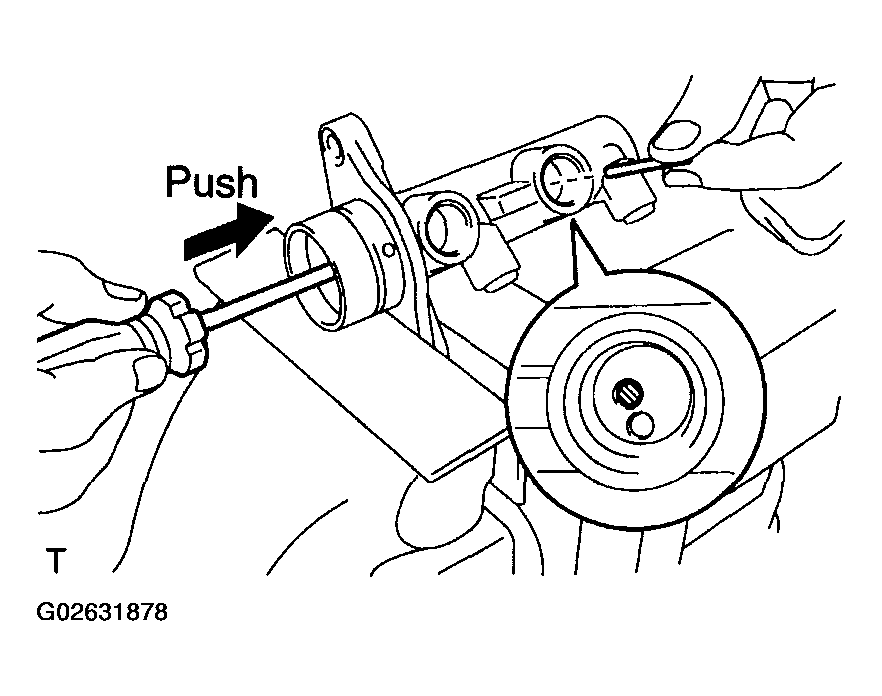

  Fig 2: Pushing No 2 Piston And Spring Using A Screwdriver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using snap ring pliers, install the snap ring.

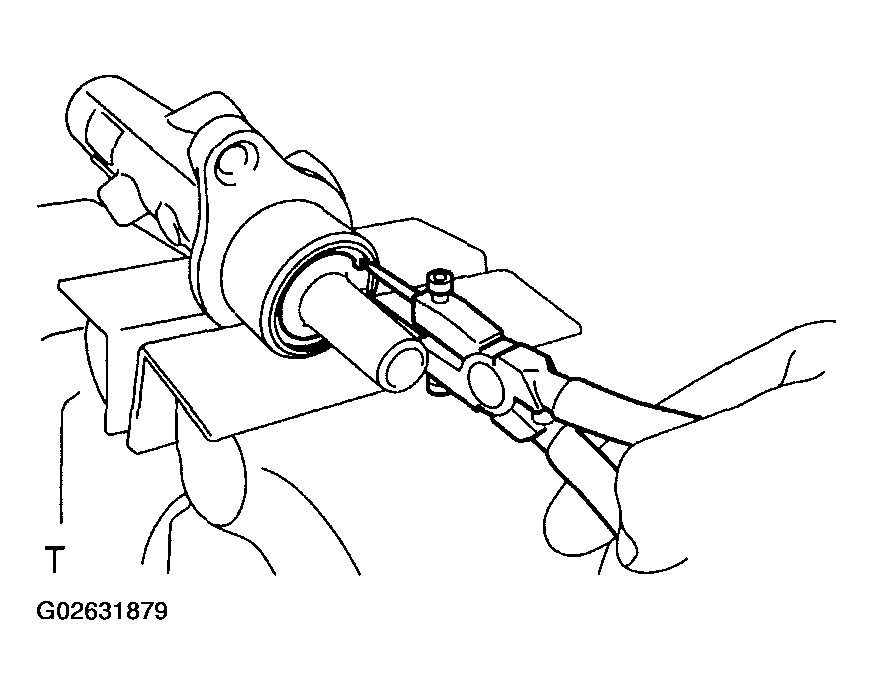

Fig 3: Installing Snap Ring With Pliers
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL RESERVOIR
1. Install the strainer and cap to the reservoir.
2. Install the 2 grommets and reservoir to the cylinder body.
3. Using a pin punch and a hammer, tap in the slotted spring pin.

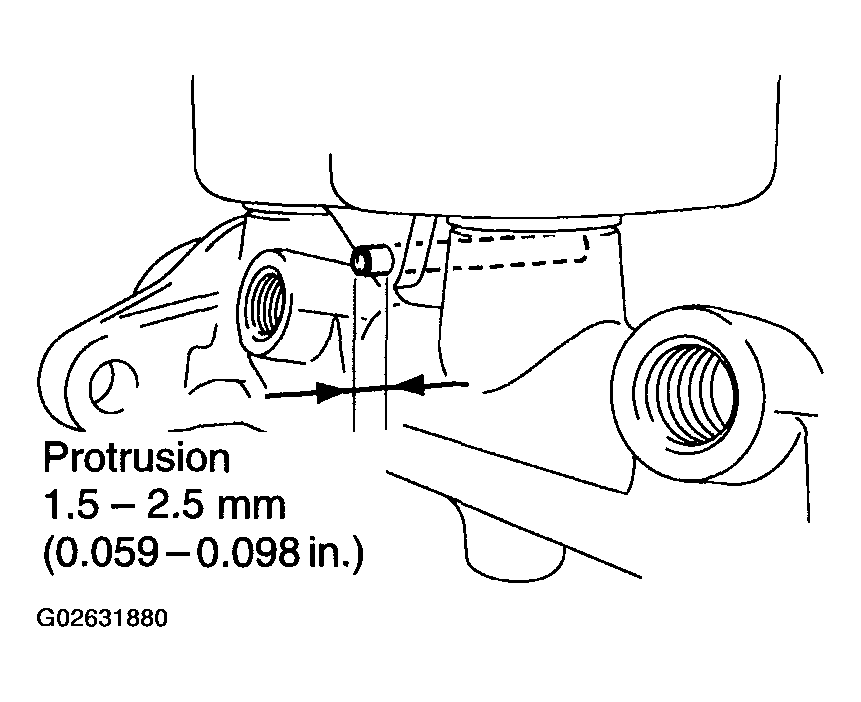

Fig 4: Installing Reservoir
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
