Brake Master Cylinder: Installation

INSTALL BRAKE MASTER CYLINDER
1. Install a new O-ring to the master cylinder.
2. Install the master cylinder with the 2 nuts.
  Torque: 13 N.m (130 kgf.cm, 9 ft.lbf)

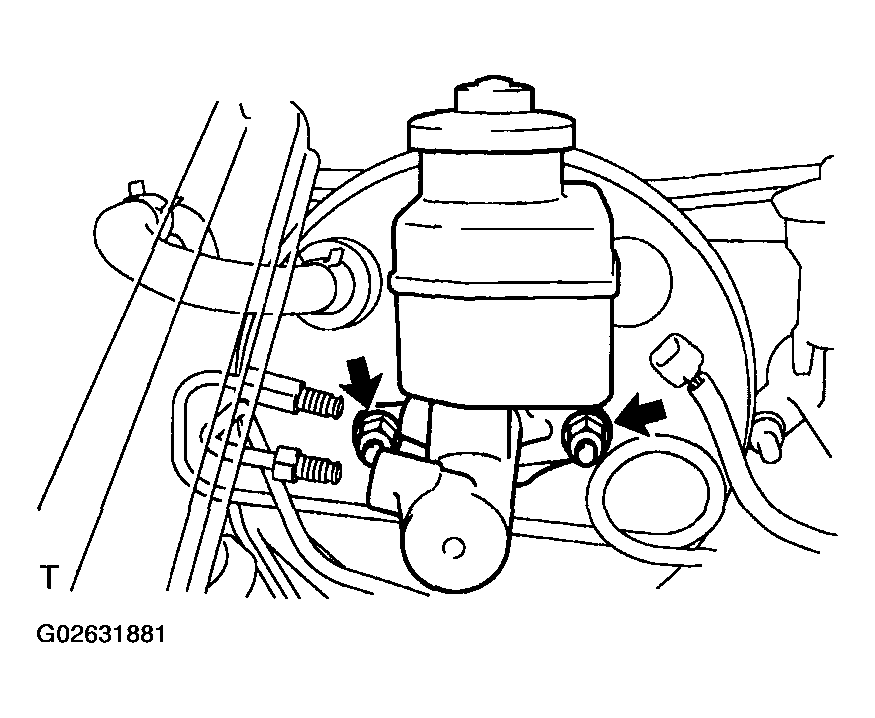

Fig 1: Identifying Brake Master Cylinder Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT BRAKE LINES TO MASTER CYLINDER
Using SST, connect the 2 brake lines.

SST 09023-00100

Torque:

15 N.m (155 kgf.cm, 11 ft.lbf)

14 N.m (143 kgf.cm, 10 ft.lbf) for use with SST

HINT:

Use a torque wrench with a fulcrum length of 30 cm (11.81 in.).
CONNECT LEVEL WARNING SWITCH CONNECTOR
FILL RESERVOIR WITH BRAKE FLUID AND BLEED BRAKE SYSTEM (See BRAKE FLUID )
CHECK FOR FLUID LEAKAGE
CHECK AND ADJUST BRAKE PEDAL (See BRAKE PEDAL )
INSTALL LUGGAGE COMPARTMENT TRIM BOX COVER

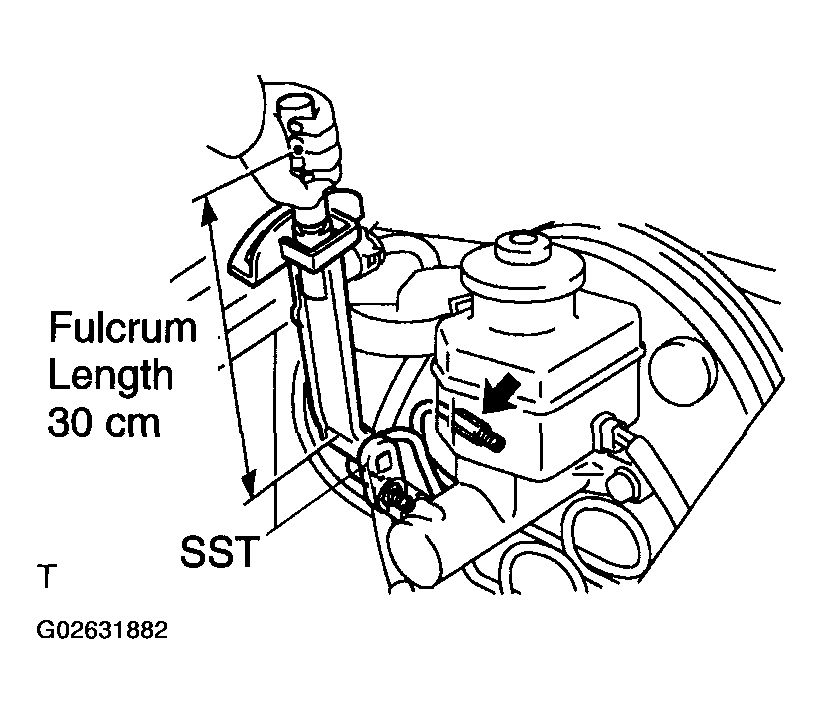

Fig 2: Connecting Brake Lines To Master Cylinder Using SST
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
