Brake Master Cylinder: Components

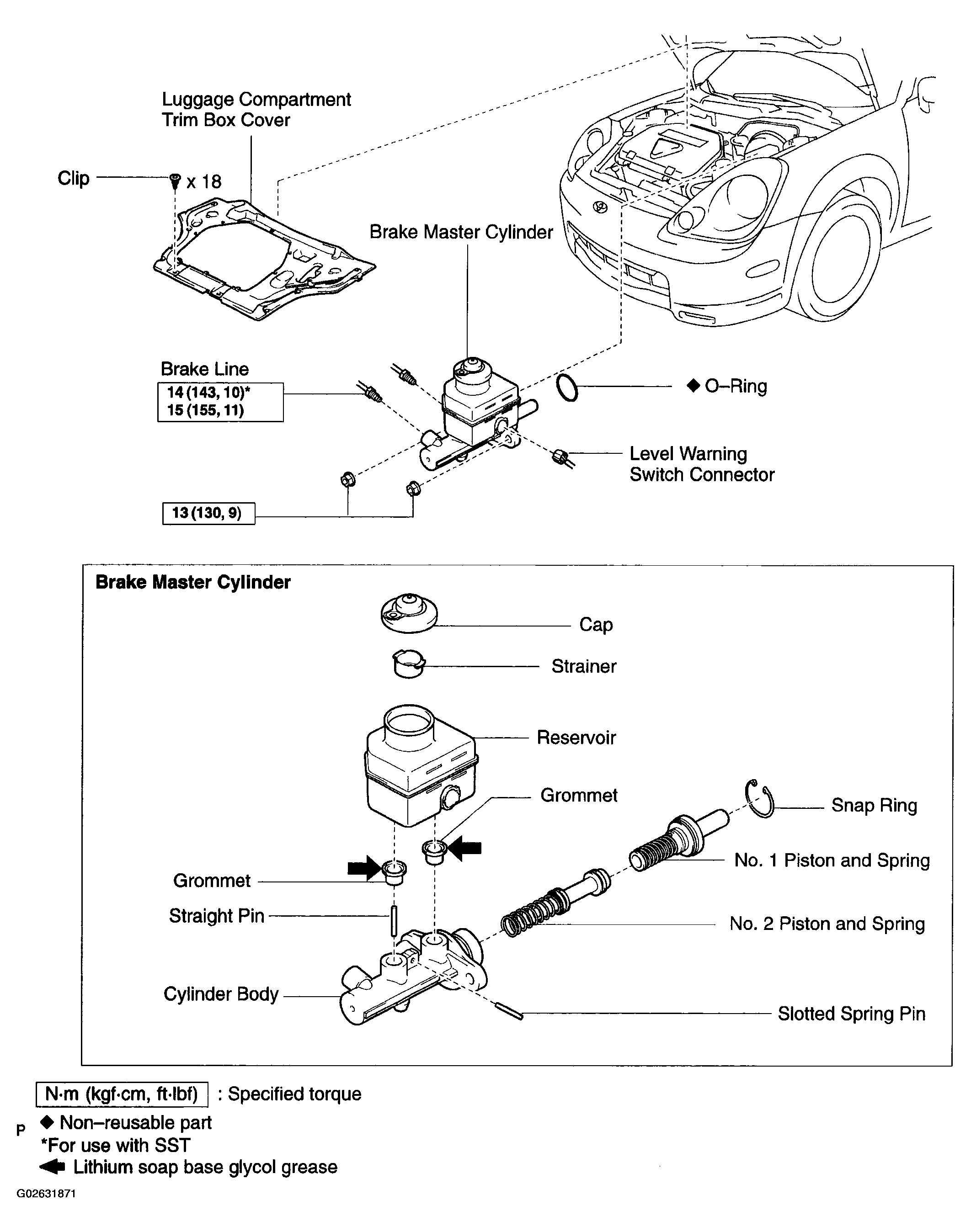

Fig 1: Identifying Brake Master Cylinder Components

G02631871

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
