Brake Booster Assembly: Components

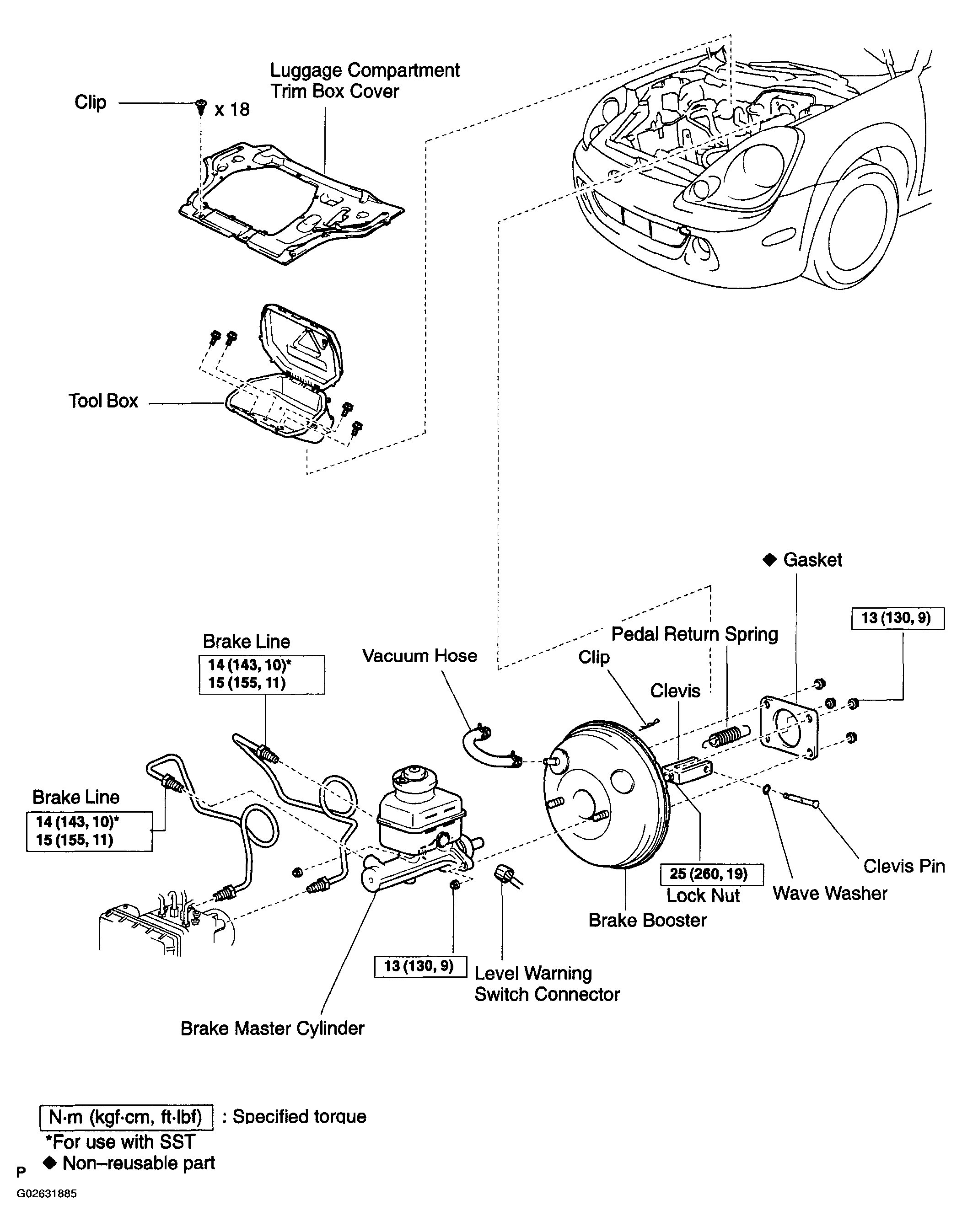

Fig 1: Identifying Brake Booster Assembly Components

G02631885

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
