Abs Actuator: Removal

REMOVE TOOL BOX
REMOVE LUGGAGE COMPARTMENT TRIM BOX COVER
DISCONNECT BRAKE LINES FROM ABS ACTUATOR
Using SST, disconnect the 6 brake lines.

SST 09023-00100

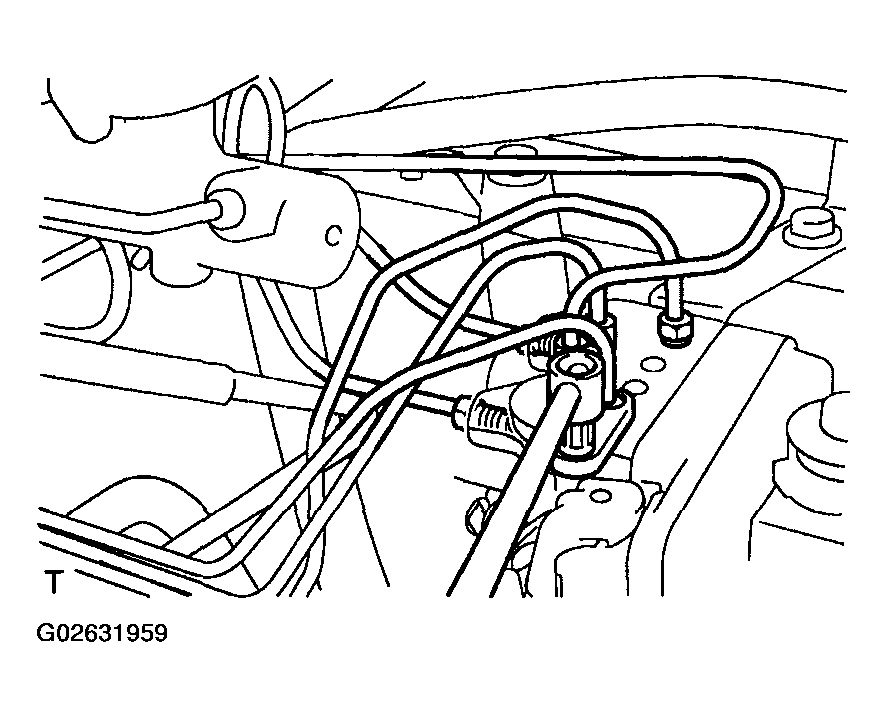

Fig 1: Disconnecting Brake Lines Using SST
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ABS ACTUATOR
1. Disconnect the 2 harness clamps and actuator connector.

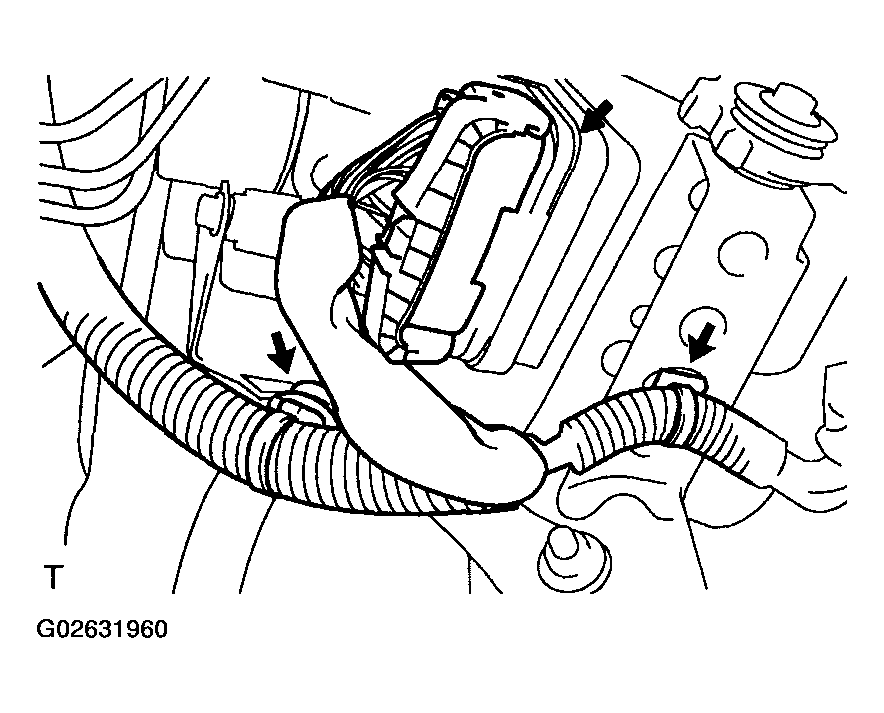

  Fig 2: Disconnecting Actuator Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the 2 harness clamps.

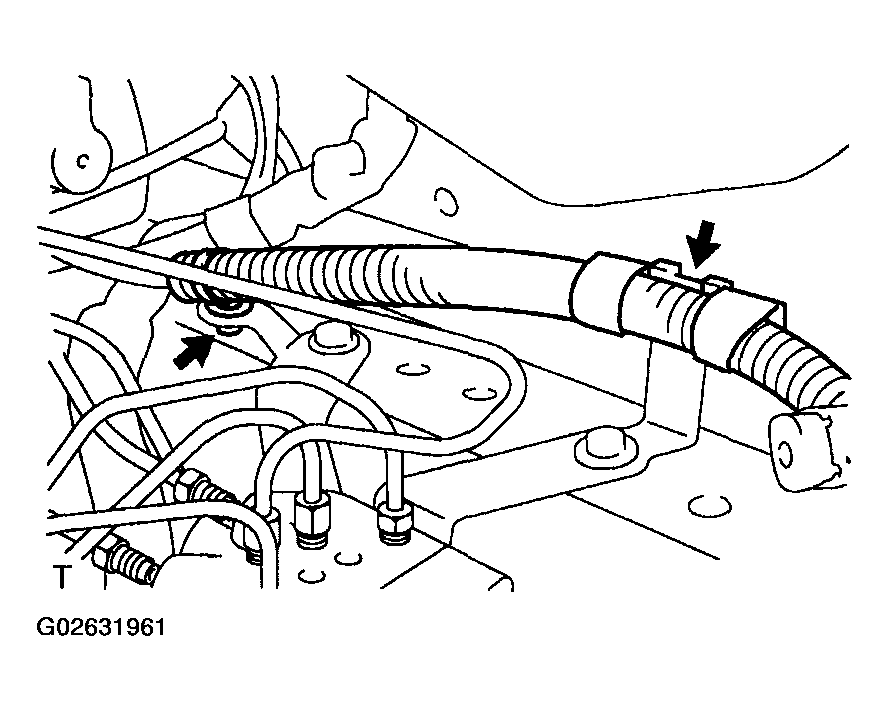

  Fig 3: Disconnecting Harness Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 bolts, nut and the ABS actuator assembly.
4. Remove the 2 nuts and ABS actuator from the actuator bracket.
5. Remove the 2 holders and 3 cushions from the ABS actuator.

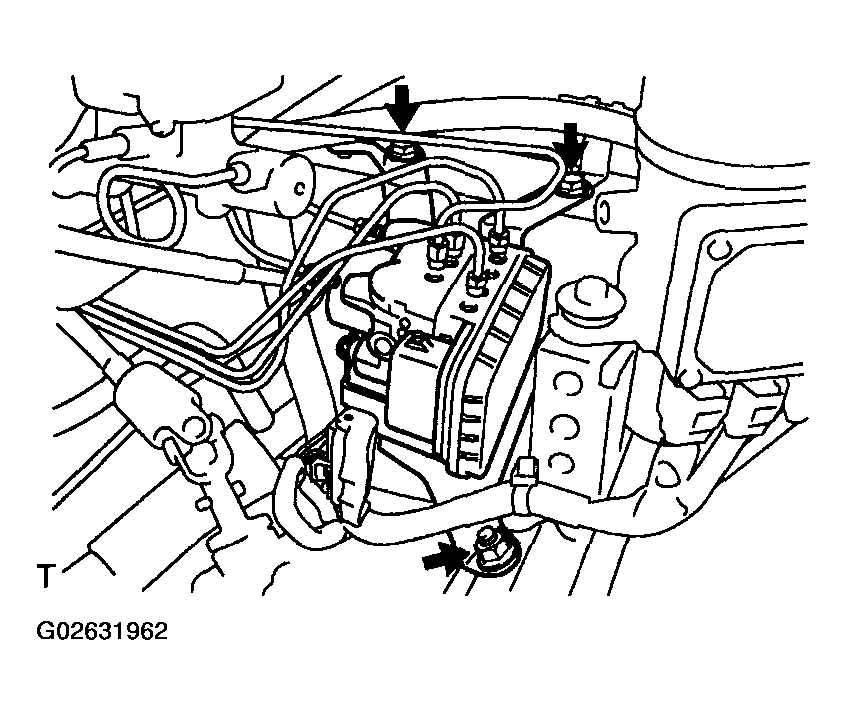

Fig 4: Identifying Bolts, Nuts And Holders
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
