Abs Actuator: Components

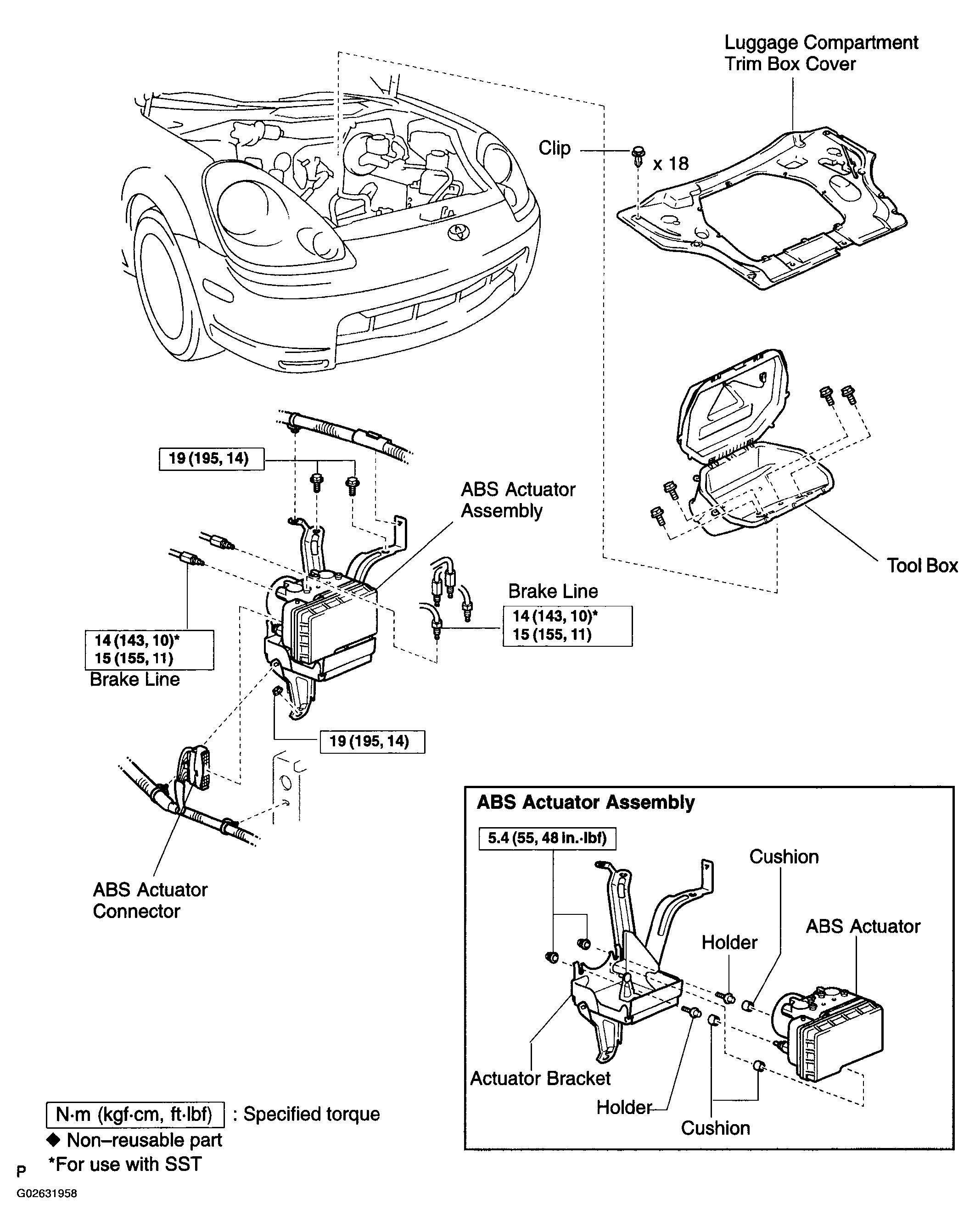

Fig 1: Identifying ABS Actuator Components

G02631958

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
