Problem Symptoms Table
>>
Meter, Gauges And Illumination: Combination Meter
Meter, Gauges And Illumination: Combination Meter

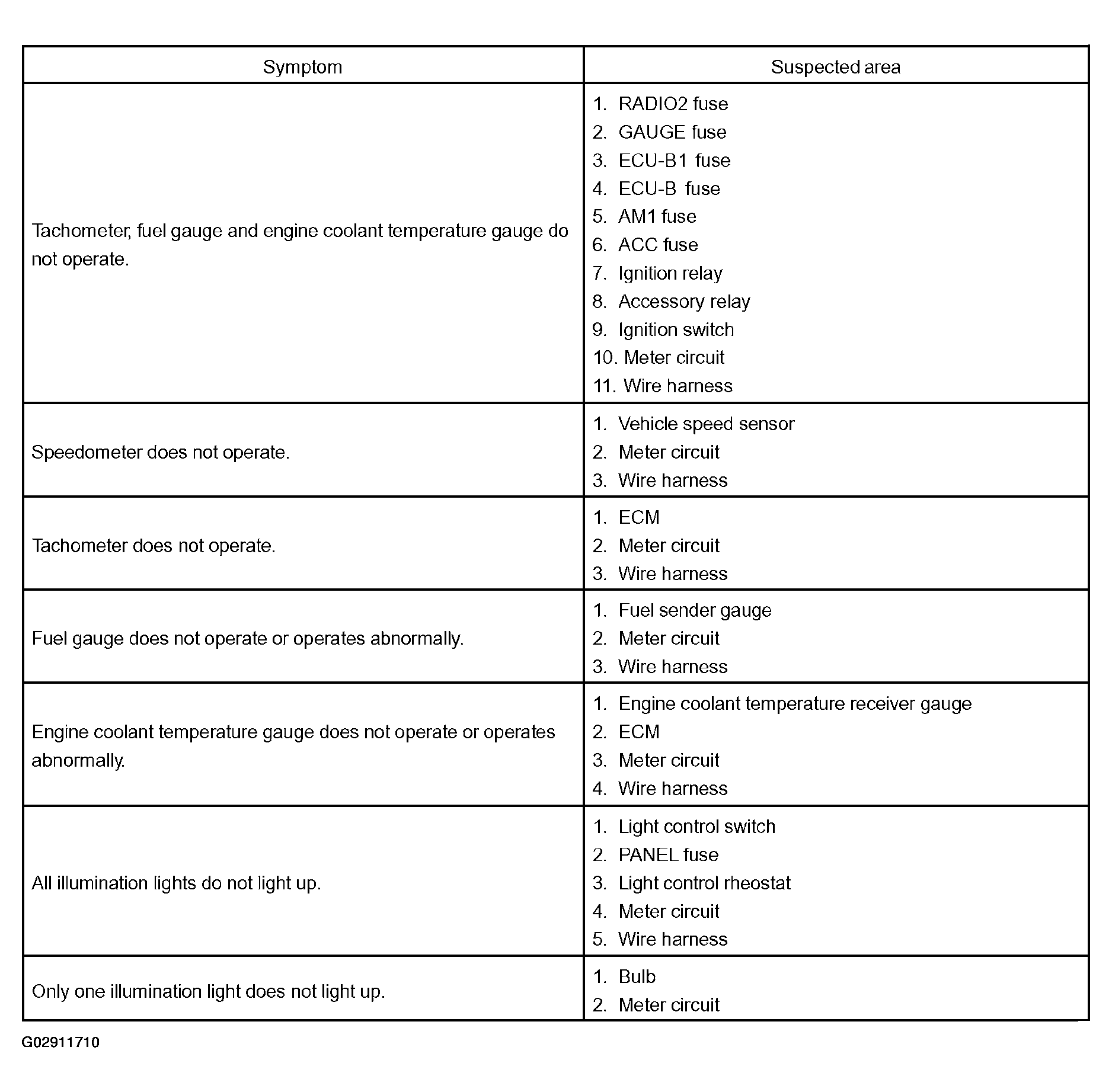

Fig 1: Displaying Combination Meter Problem Suspect Areas
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
