Back-Up Light System
Back-Up Light System

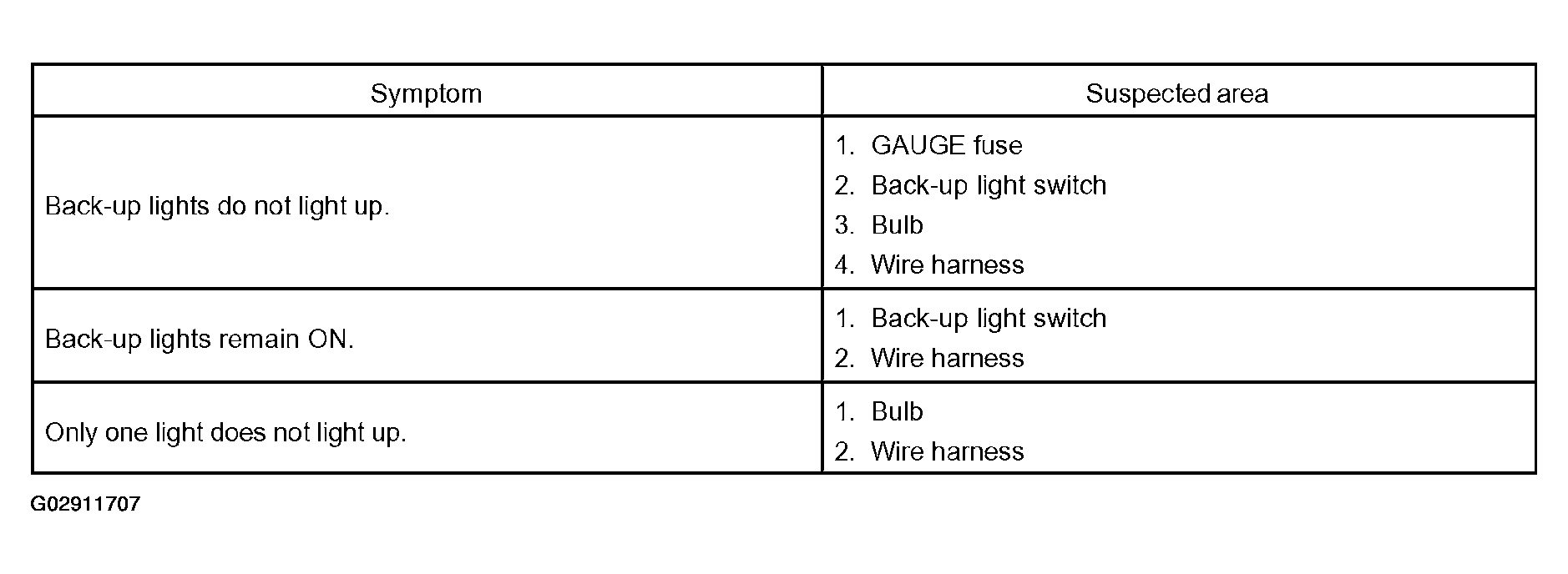

Fig 1: Displaying Back-up Light System Problem Suspect Areas
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
