Front Passenger Airbag Assembly: Installation
NOTE:
Never use airbag parts from another vehicle. When replacing parts, replace them with new parts.
HINT:
For step 2 to 5, refer to INSTALLATION .
- INSTALL FRONT PASSENGER AIRBAG ASSEMBLY
Install the front passenger airbag assembly to the instrument panel with the 3 nuts.
Torque: 6.0 N.m (61 kgf.cm, 53 in.lbf)
CAUTION:- Make sure that no foreign objects are trapped between the airbag bag and the module.
- Do not damage the strap when installing the module.
NOTE: If the front passenger airbag assembly has been dropped, or there are cracks, dents or other defects in the case or connector, replace the front passenger airbag assembly with a new one. - INSTALL NO. 2 SIDE DEFROSTER NOZZLE DUCT
- INSTALL NO. 5 HEATER TO REGISTER DUCT
- INSTALL DEFROSTER NOZZLE ASSEMBLY
- INSTALL CENTER BRACKET
- INSTALL INSTRUMENT PANEL (See INSTALLATION
)
Install the 2 bolts to instrument panel reinforcement.
Torque: 20 N.m (205 kgf.cm, 15 ft.lbf)
NOTE:- Make sure the front passenger airbag assembly is installed with the specified torque.
- When installing the instrument panel, take care that the airbag wire harness does not interfere with other parts and is not pinched between other parts.
- When installing the instrument panel box, carefully pull out the airbag wire harness from the glove compartment upper hole.

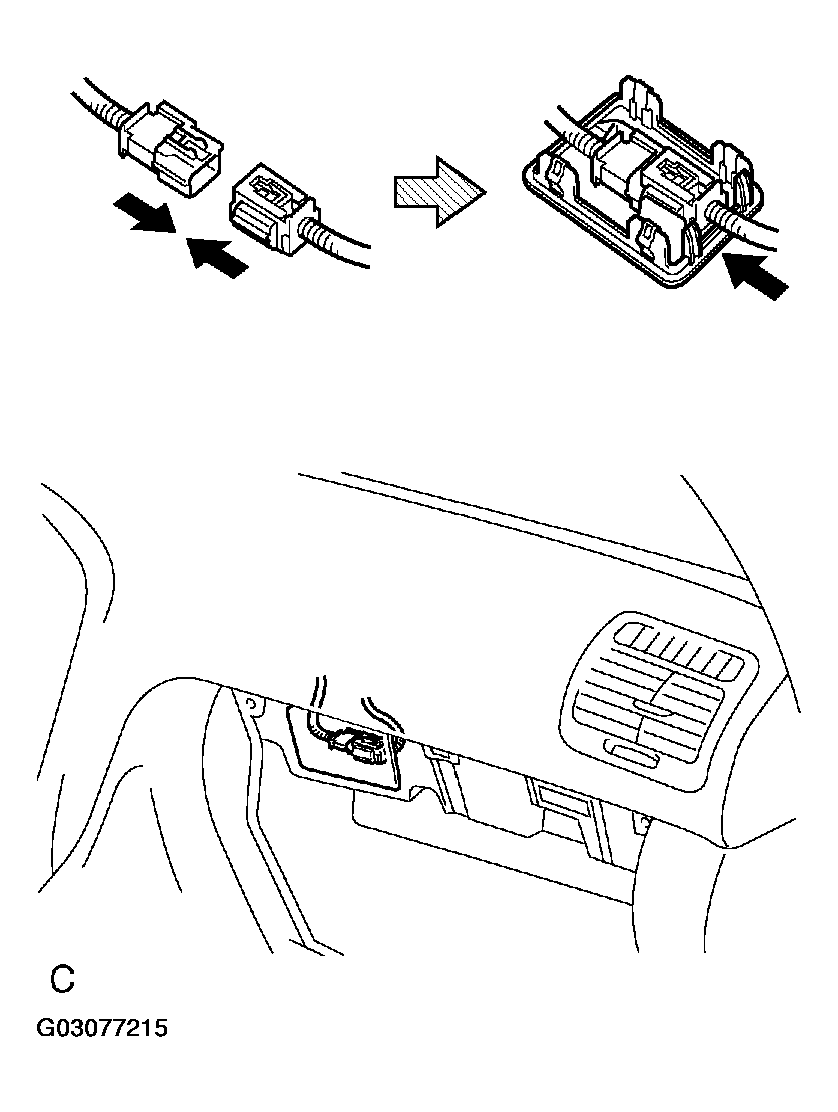

- CONNECT AIRBAG CONNECTOR
- Connect the airbag connector.
- Set the connector on the No. 1 under cover.
- Install the No. 1 under cover to the lower No. 2 finish panel.
- Install the glove compartment door (See INSTALLATION ).
- INSPECT SRS WARNING LIGHT (See PRE-CHECK )
