DTC P0351, P0352, P0353, P0354, P0355, P0356, P0357, P0358: Igniter Coil "A-H" Primary/Secondary Circuit: Wiring Diagram

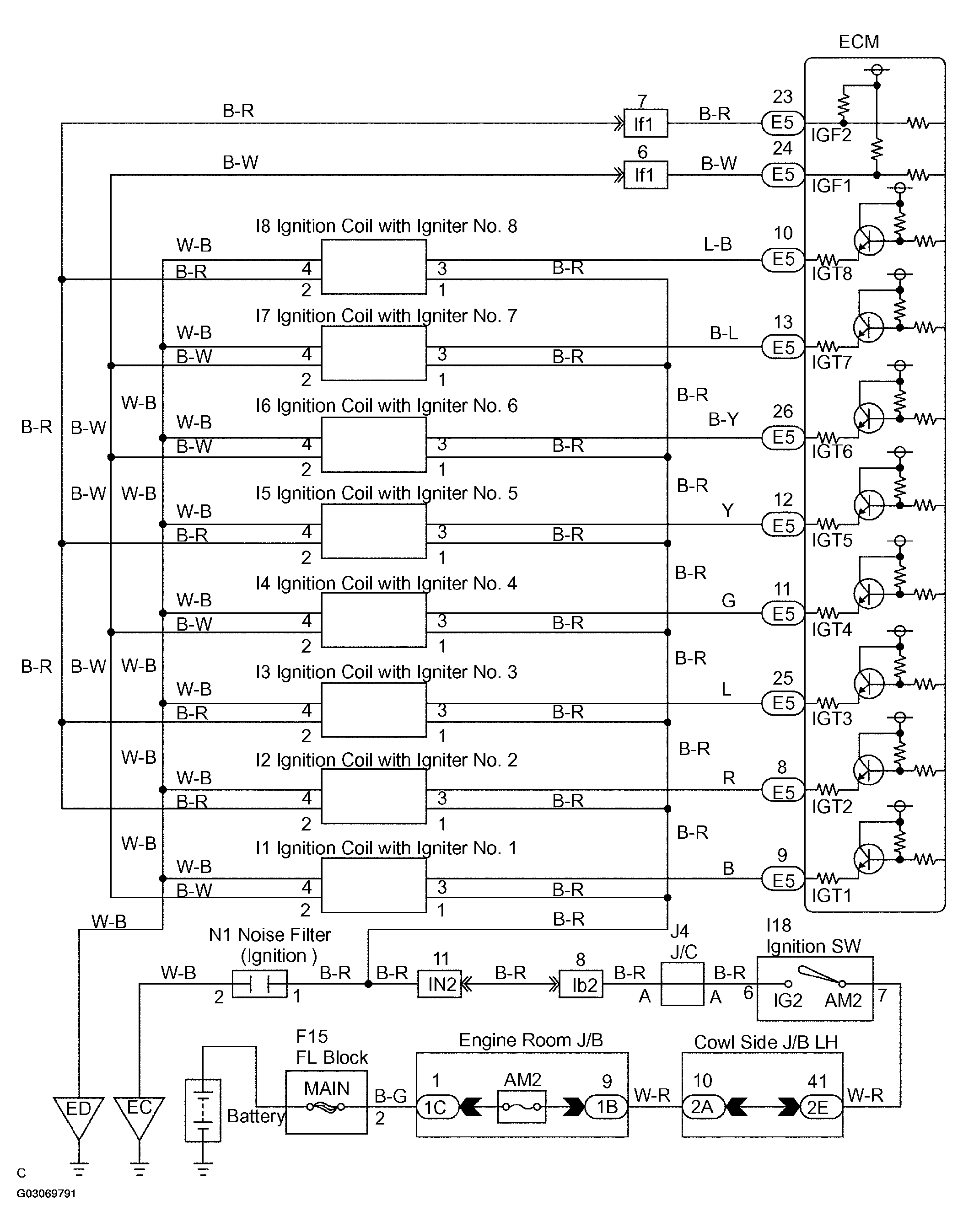

Fig 1: Wiring Diagram - Ignition Coil With Igniter
G03069791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
