Home >> Toyota >> 2005 >> Land Cruiser >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Brakes - Mechanical >> Rear Brake Pad >> Components

Rear Brake Pad: Components

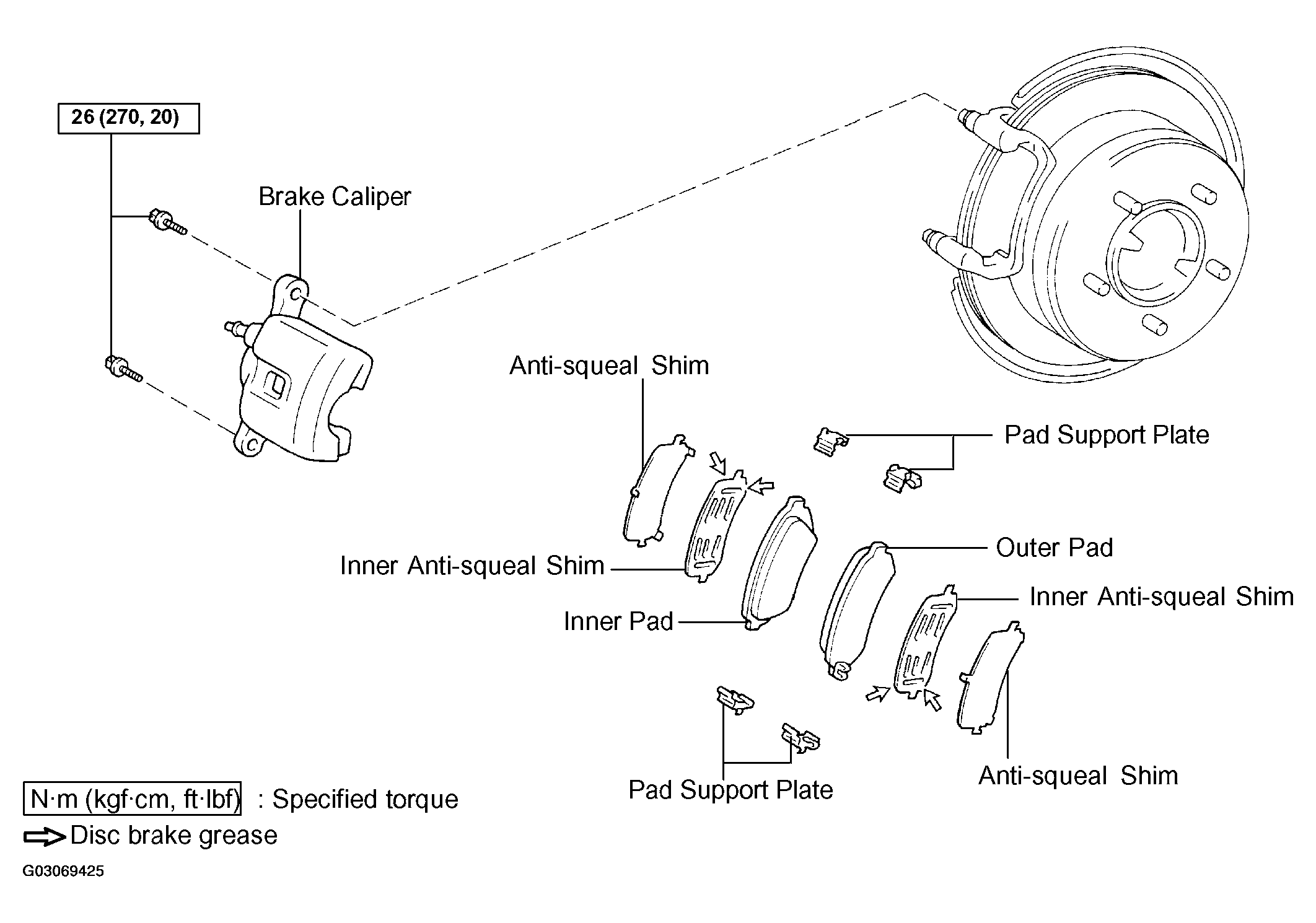

Fig 1: Exploded View Of Rear Brake Pad Components

G03069425

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
