Rear Brake Caliper: Components

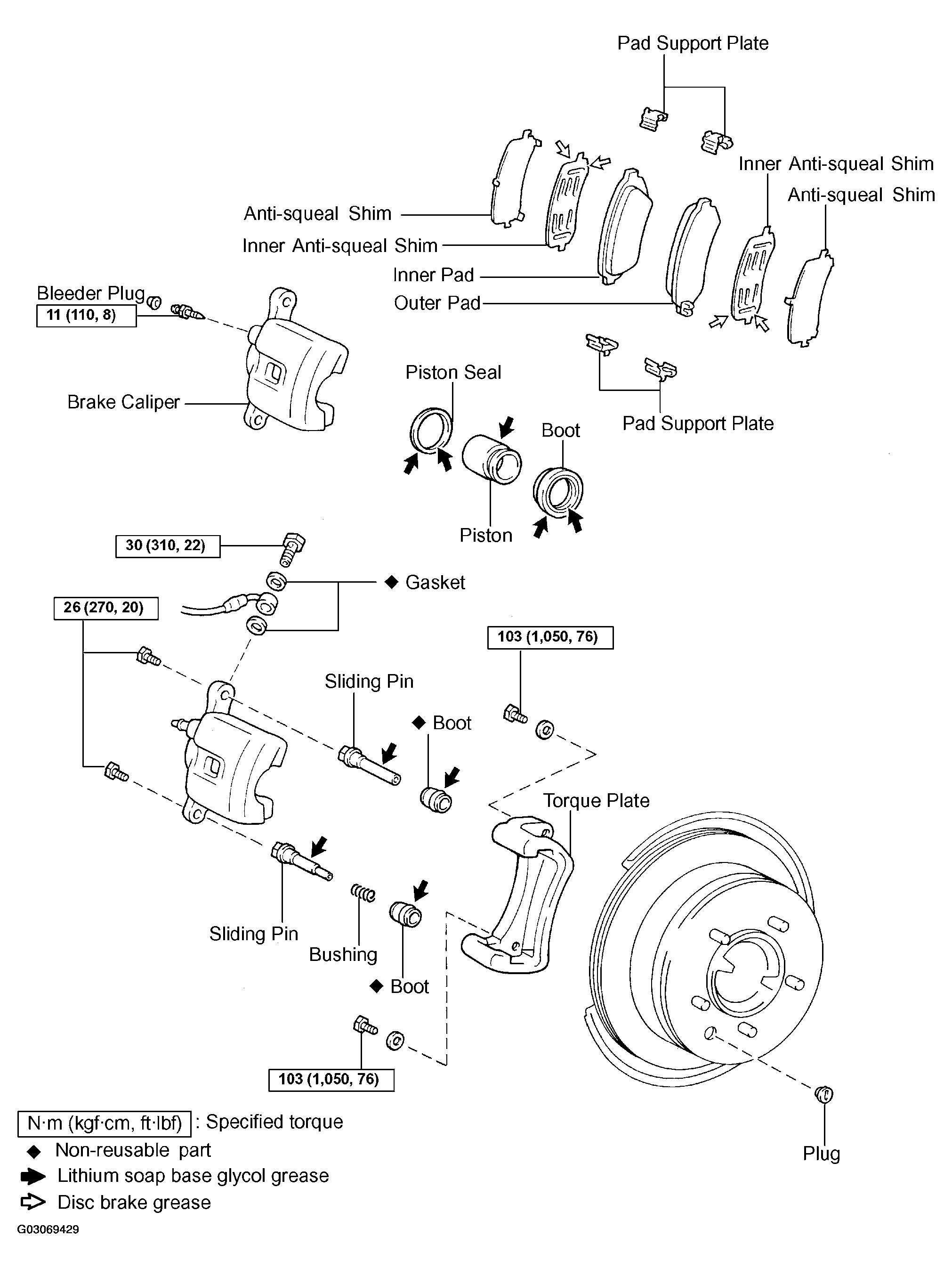

Fig 1: Exploded View Of Rear Brake Caliper Components

G03069429

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
