Install Accumulator Bracket

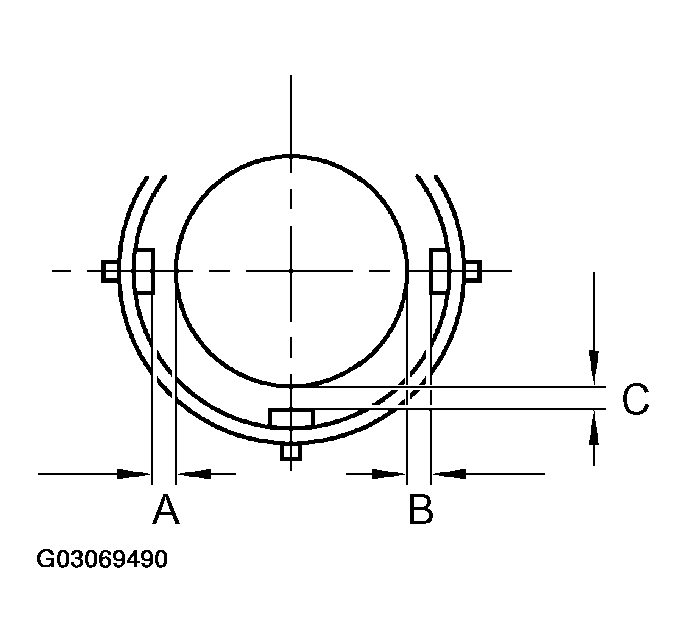

When installing the accumulator bracket, adjust to secure the clearance as shown on the left.
Standard clearance:
A + B: 4.1 mm (0.161 in.) or less
C: 0.3 - 3.8 mm (0.012 - 0.150 in.)
HINT:
Secure more than 0.3 mm (0.012 in.) clearance for A and B each.
