Disposal Method Of Accumulator

  1. Place the accumulator in a vise, cover it with a cloth over.
  2. Using a saw, then cut the accumulator body slowly.
    CAUTION: Do not cut at a place except a stretch.
  3. When the outer body of the accumulator is cut, gas discharges.

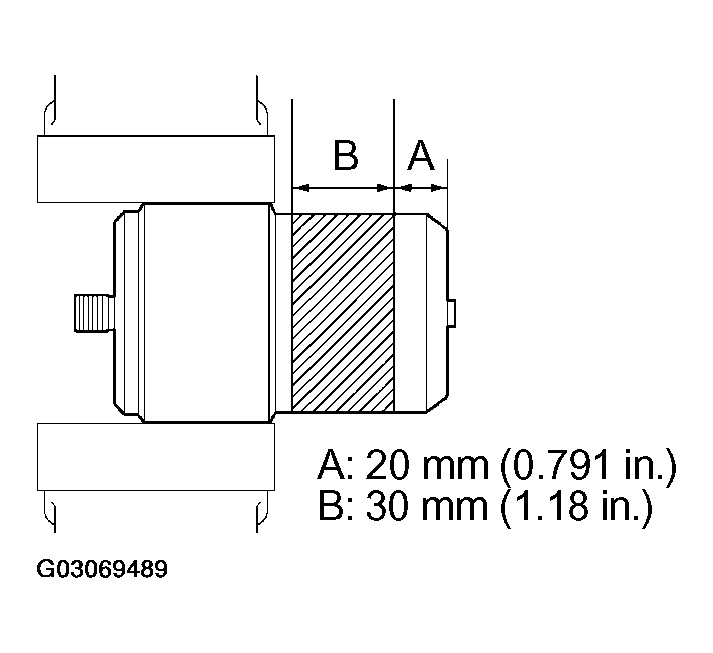

    Fig 1: Disposing Method Of Accumulator
    G03069489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
