Hydraulic Brake Booster: Components

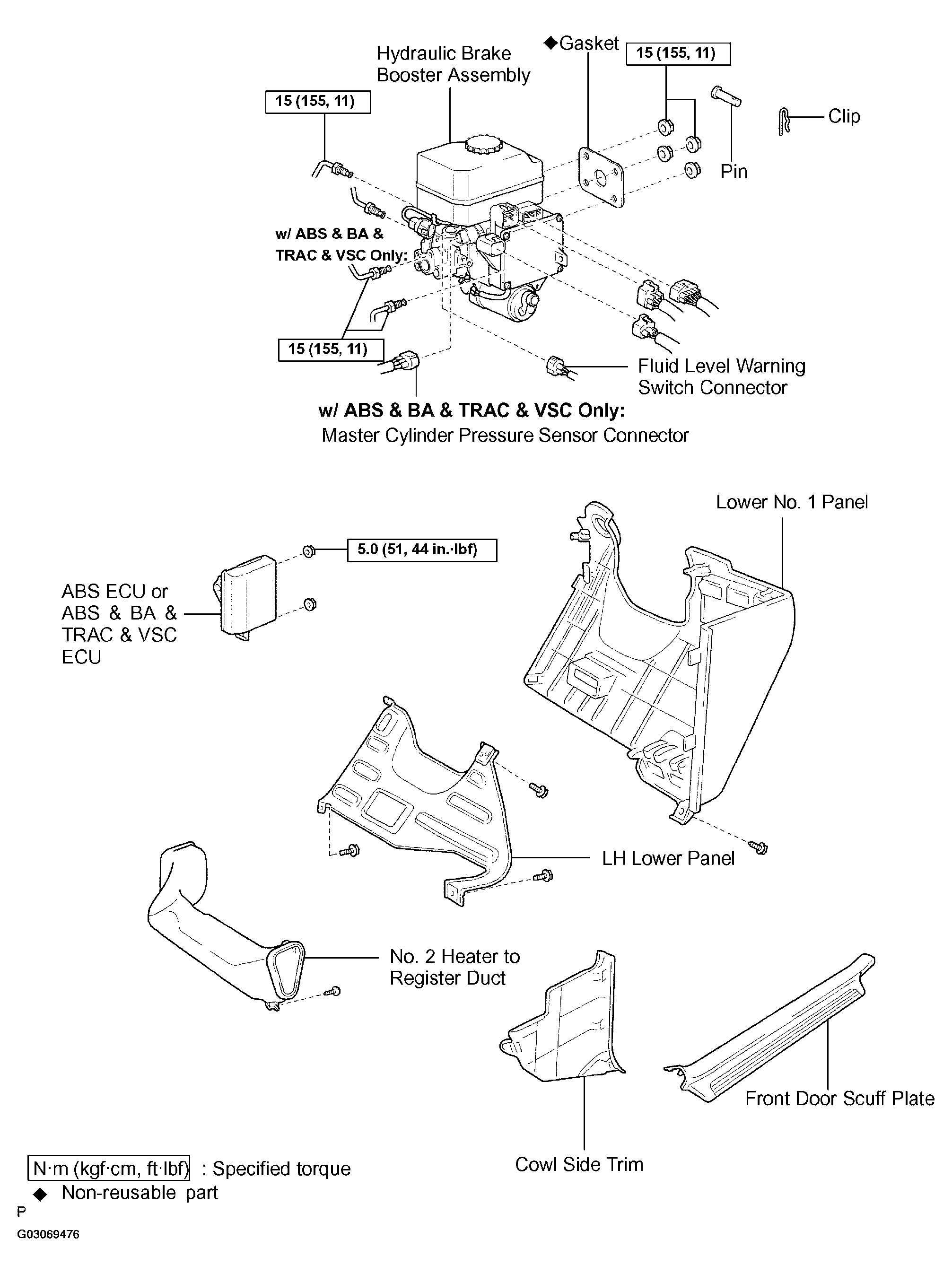

Fig 1: Exploded View Of Hydraulic Brake Booster Components (1 Of 2)
G03069476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

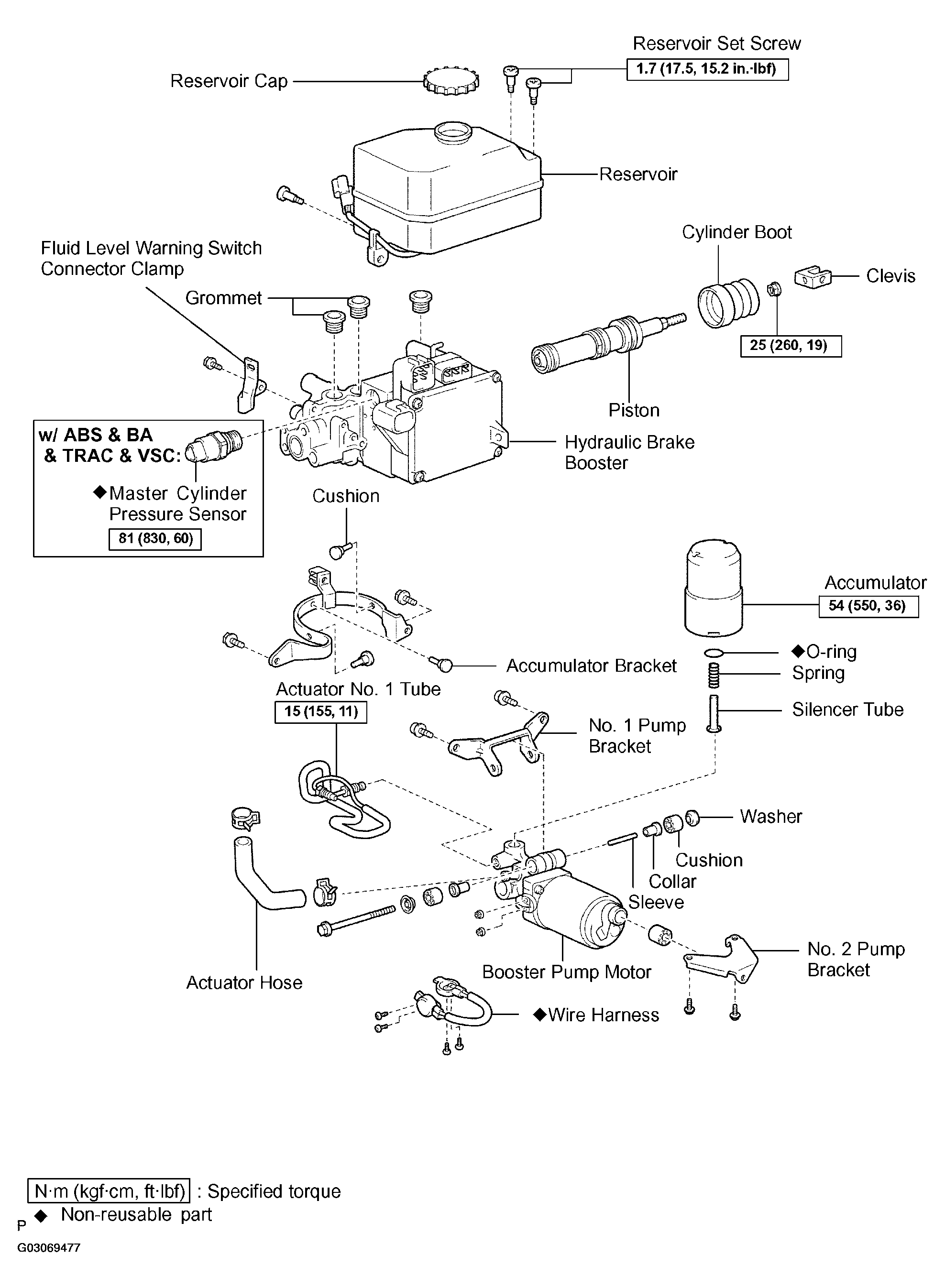

Fig 2: Exploded View Of Hydraulic Brake Booster Components (2 Of 2)
G03069477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
