Remove Speed Sensor

  1. Disconnect the speed sensor connector.

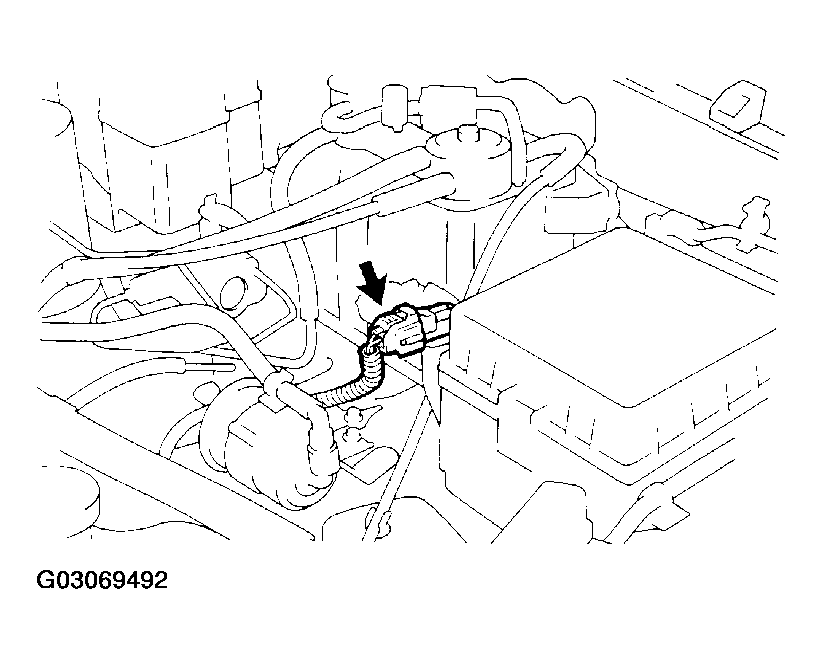

    Fig 1: Disconnecting Speed Sensor Connector
    G03069492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Remove the resin clip and 4 clamp bolts holding the sensor harness from the steering knuckle and upper arm.

    Torque: 13 N.m (130 kgf.cm, 9 ft.lbf)

  3. Remove the speed sensor installation bolt and speed sensor from the steering knuckle.

    Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

    Fig 2: Removing Speed Sensor
    G03069493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
