Front Brake Caliper: Removal

Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)

1. Remove the union bolt and 2 gaskets from the caliper, then disconnect the flexible hose from the caliper.

   Torque: 30 N.m (310 kgf.cm, 22 ft.lbf)

2. Use a container to catch the brake fluid as it drains out.

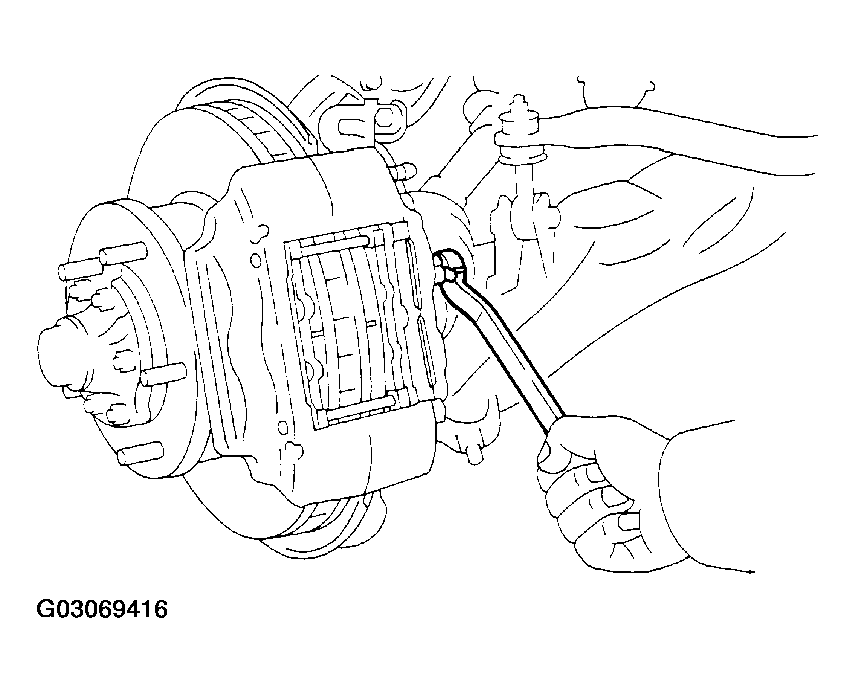

   Fig 1: Disconnecting Brake Line

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 2 mounting bolts and remove the caliper.

Torque: 123 N.m (1,250 kgf.cm, 90 ft.lbf)

Fig 2: Removing Caliper

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
