Front Brake Caliper: Components

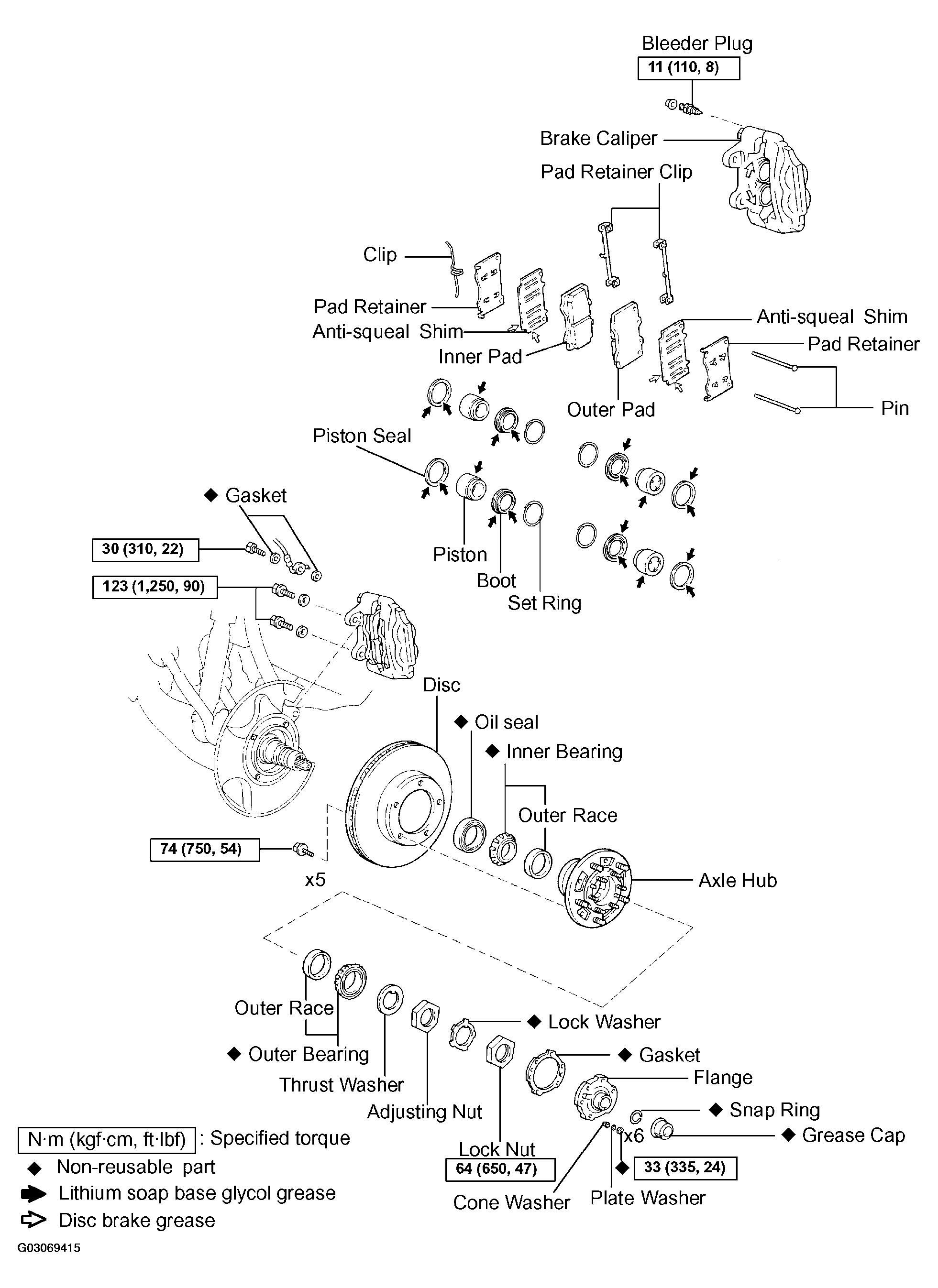

Fig 1: Exploded View Of Front Brake Caliper Components

G03069415

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
