Brake Pedal: Components

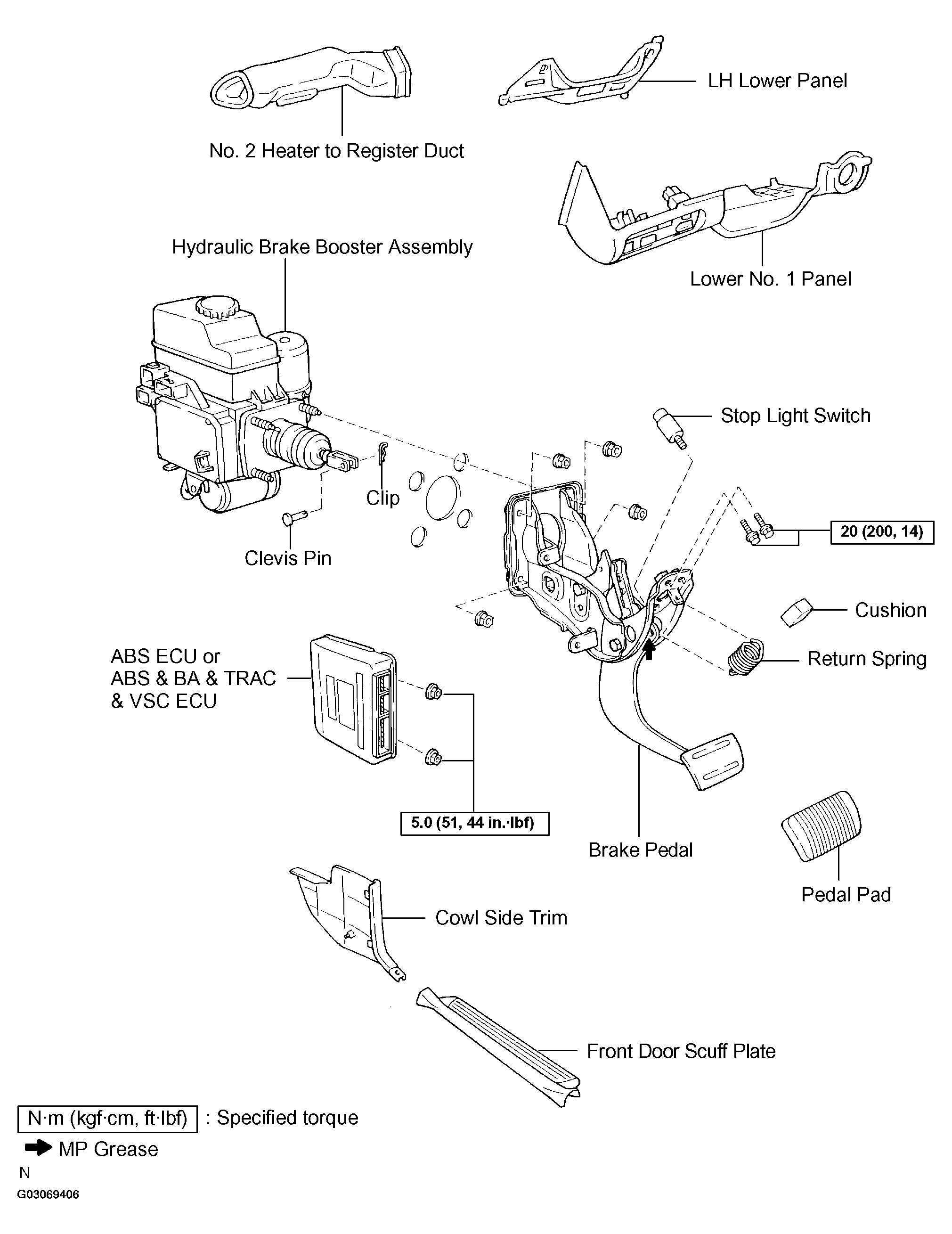

Fig 1: Exploded View Of Brake Pedal Components

G03069406

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
