Engine Immobilizer System - Diagnostics
>>
How To Proceed With Troubleshooting
How To Proceed With Troubleshooting
Troubleshoot in accordance with the procedure on
Fig 1
.

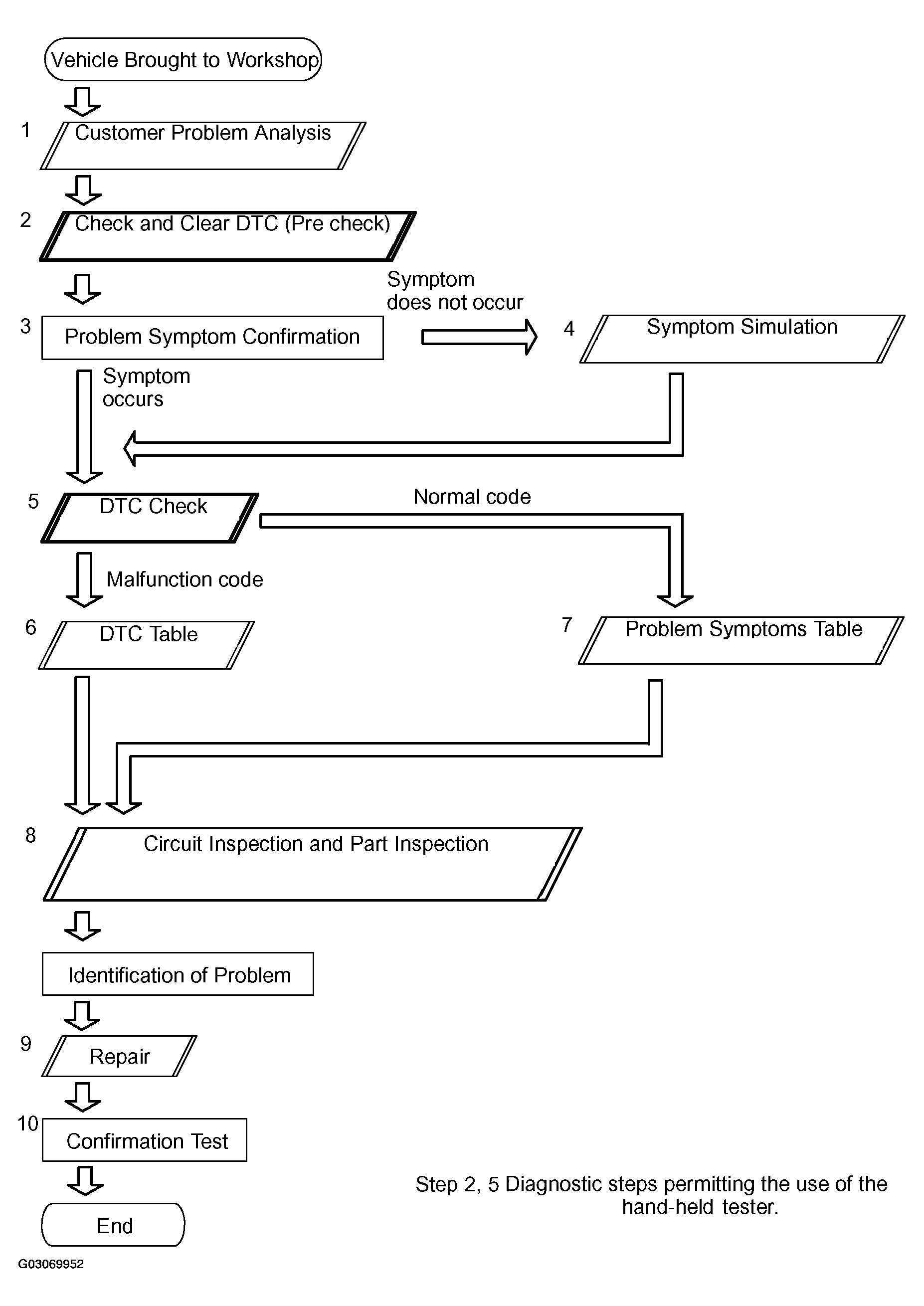

Fig 1: Engine Immobilizer System Troubleshooting Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
