Rear No. 1 Seat (RH): Components

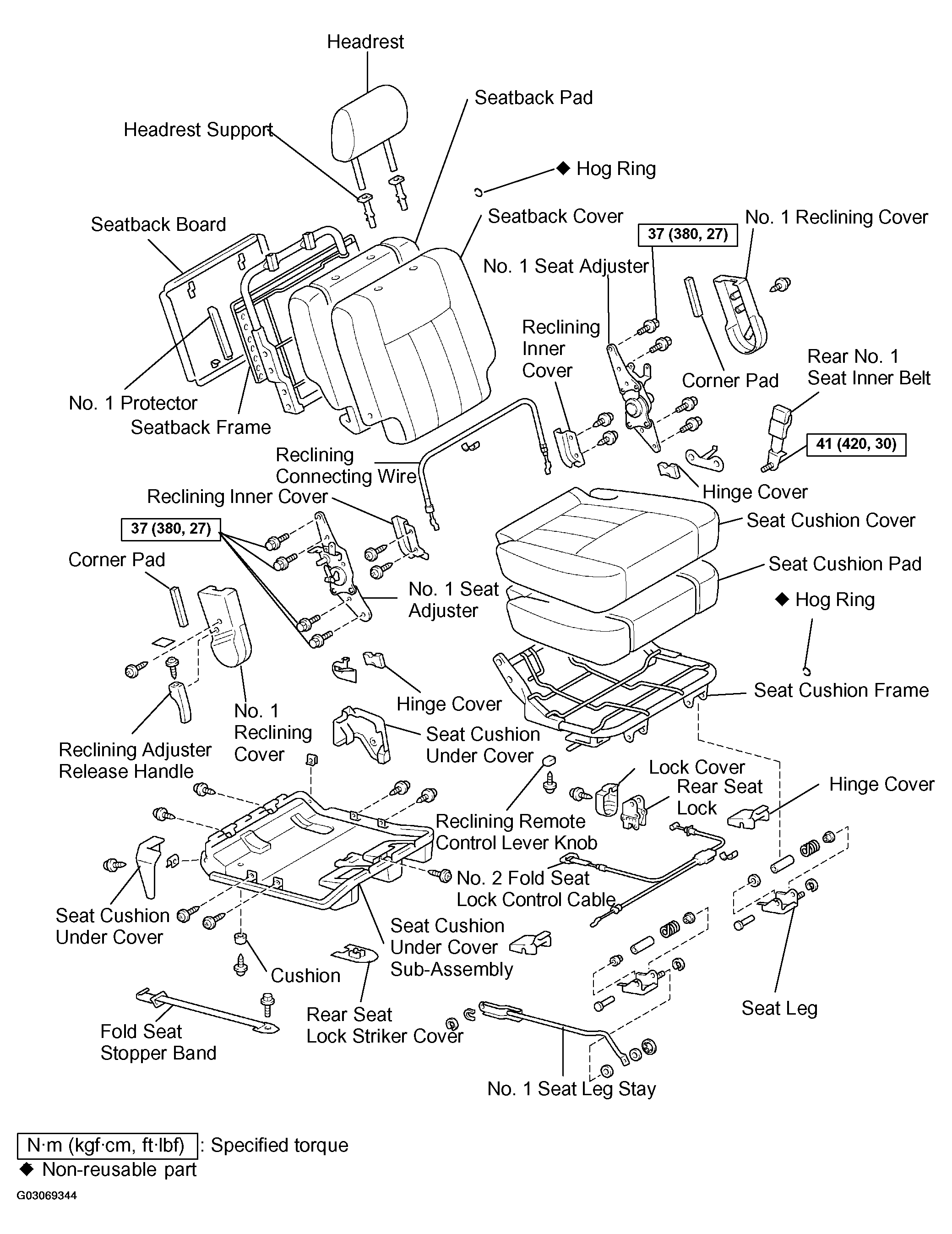

Fig 1: Identifying Rear No. 1 Seat (RH) Components

G03069344

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
