Front Lower Suspension Arm: Removal

While holding the stabilizer bar link, remove the 2 nuts, 5 retainers, 4 cushions and the stabilizer bar link.

1. Remove the clip and nut.
   Fig 1: Removing 2 Nuts, 5 Retainers, 4 Cushions And Stabilizer Bar Link

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, disconnect the lower suspension arm from the steering knuckle.

   SST 09628-00011 (09628-00030, 09628-00040, 09628-00050)

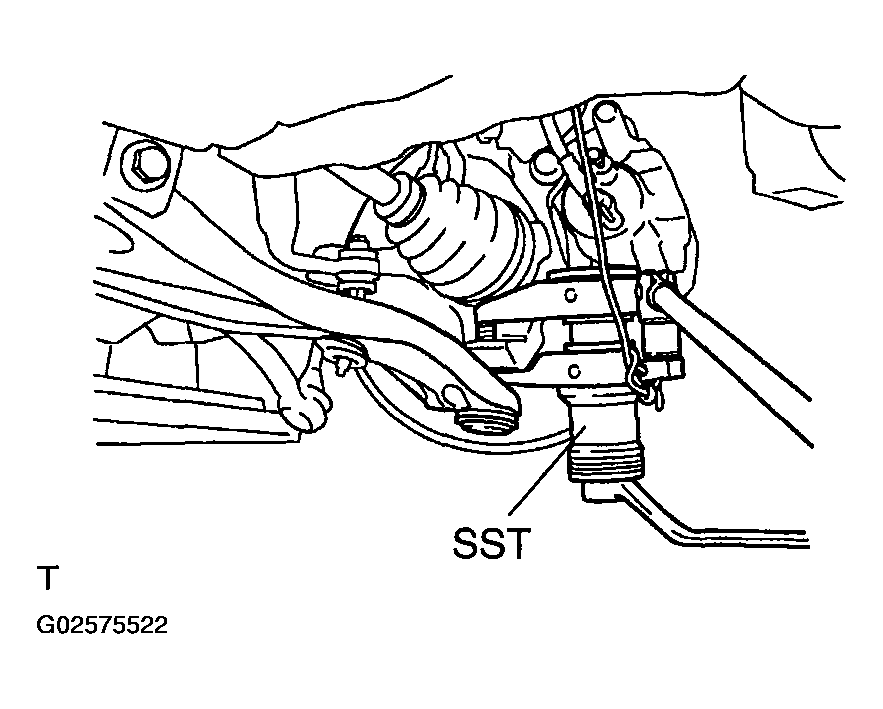

Fig 2: Disconnecting Lower Suspension Arm From Steering Knuckle Using SST

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SLIGHTLY JACK UP ENGINE

1. Remove the bolt and 2 nuts, and disconnect the engine rear mount.
2. Using a transmission jack and wooden block, slightly jack up the engine.

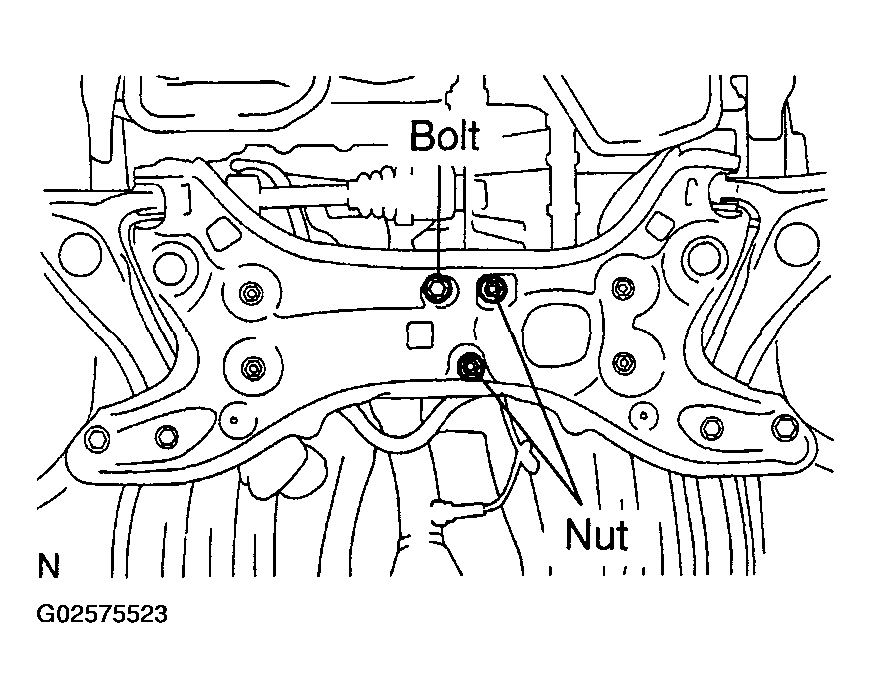

Fig 3: Removing Bolt And 2 Nuts And Disconnecting Engine Rear Mount

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 2 bolts, nut and lower suspension arm.

Fig 4: Removing 2 Bolts, Nut And Lower Suspension Arm

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
