Front Axle Hub: Removal

1. Remove the 2 bolts, brake caliper and disc.
2. Support the brake caliper securely.

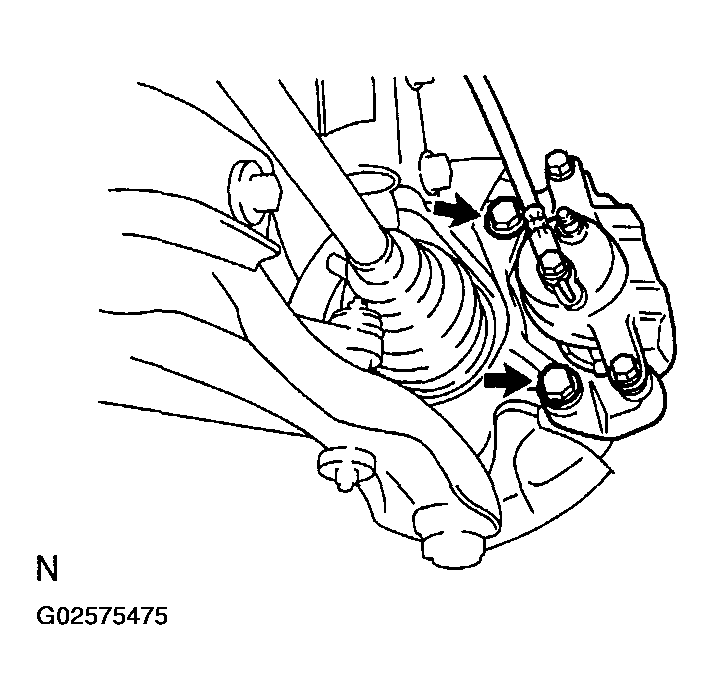

   Fig 1: Locating 2 Bolts, Brake Caliper And Disc

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a dial indicator, check the backlash near the center of the axle hub.

   Maximum: 0.05 mm (0.0020 in.)

   If the backlash exceeds the maximum, replace the bearing.

4. Using a dial indicator, check the deviation at the surface of the axle hub outside the hub bolt.

   Maximum: 0.05 mm (0.0020 in.)

   If the deviation exceeds the maximum, replace the axle hub.

5. Install the disc, brake caliper and 2 bolts.

   Torque: 88 N.m (900 kgf.cm, 65 ft.lbf)

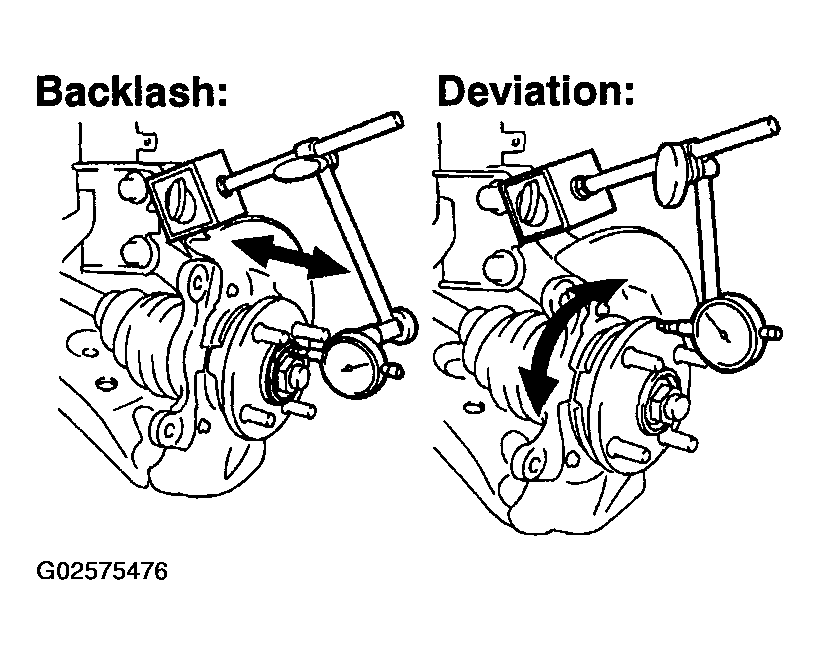

Fig 2: Checking Backlash Near Center Of Axle Hub Using Dial Indicator

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using SST and a hammer, unstake the staked part of the lock nut.

   SST 09930-00010

2. While applying the brakes, remove the lock nut.
3. Remove the 2 bolts, brake caliper and disc.
4. Support the brake caliper securely.

Fig 3: Unstaking Staked Part Of Lock Nut Using SST And Hammer

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DISCONNECT ABS SPEED SENSOR

Remove the bolt and disconnect the ABS speed sensor.

1. Remove the clip and nut.
2. Using SST, disconnect the steering knuckle.

   SST 09628-00011 (09628-00030, 09628-00040, 09628-00050)

1. Remove the cotter pin and nut.

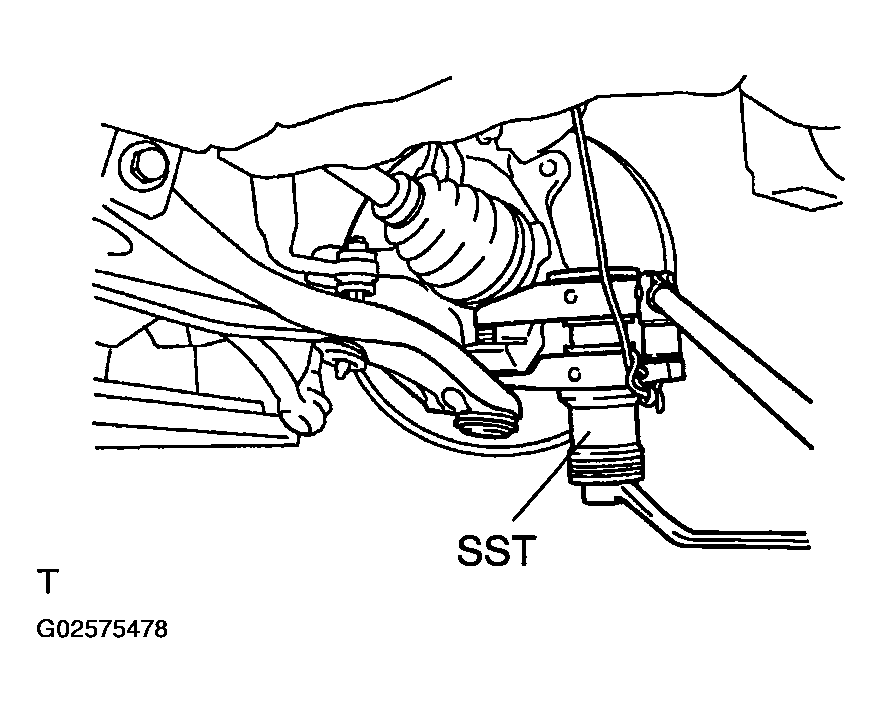

   Fig 4: Disconnecting Steering Knuckle Using SST

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, disconnect the tie rod end.

   SST 09628-62011

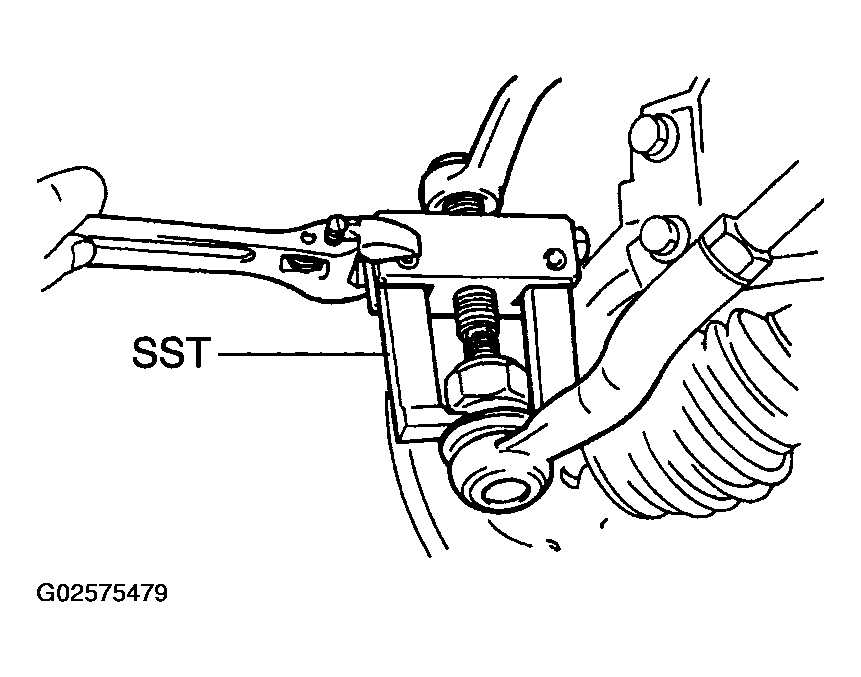

Fig 5: Disconnecting Tie Rod End Using SST

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 2 nuts, bolts and steering knuckle with the axle hub from the shock absorber.

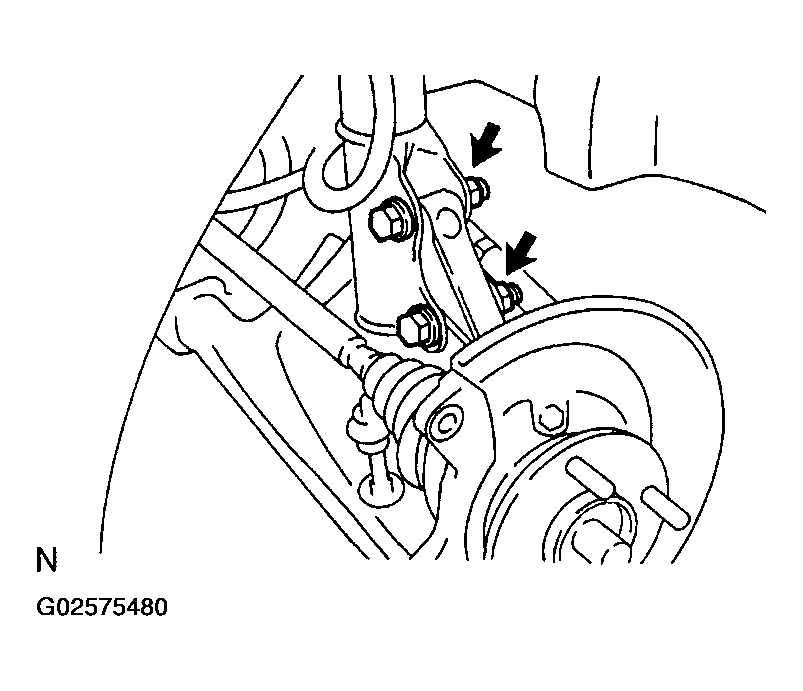

Fig 6: Removing 2 Nuts, Bolts And Steering Knuckle With Axle Hub

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
