Side Airbag Assembly: Installation

1. Install the seatback assembly with the 4 bolts.

   Torque: 43 N.m (440 kgf.cm, 32 ft.lbf)

2. Install new hog rings on the lower part of seatback assembly.
   Fig 1: Installing Seatback Assembly With Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Driver side:

   Connect and clump the connector and wire harness.

   NOTE: Be careful not to damage the connector and wire harness.

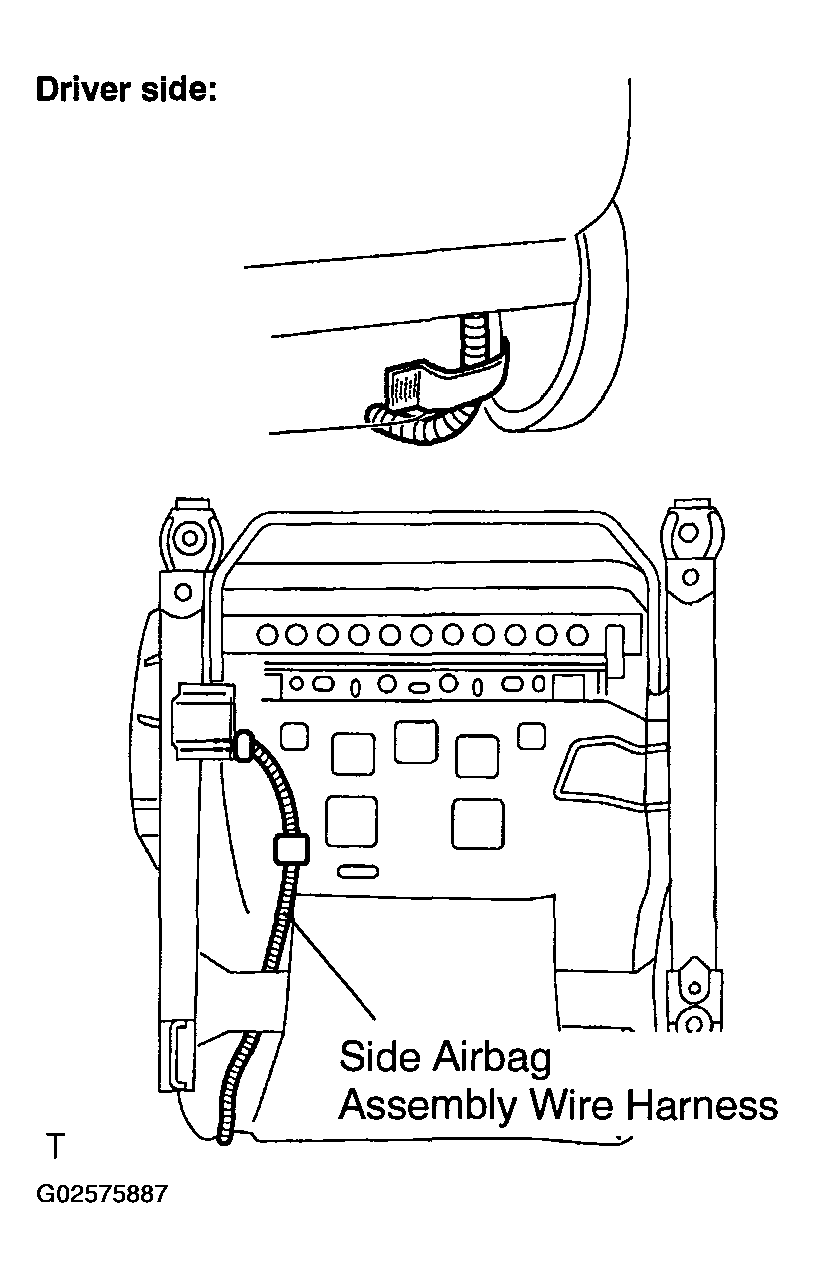

   Fig 2: Connecting And Clump Connector And Wire Harness (Driver Side)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Passenger side:

   Connect and clump the connector and wire harness.

Install the seat cushion inner shield with the screw and clip.

1. Install the front seat inner belt wire the bolt.

   Torque: 41 N.m (420 kgf.cm, 30 ft.lbf)

2. Driver side:

   Connect the inner belt connector.

3. Passenger side:

   Connect the inner belt connector and seat sensor connector.

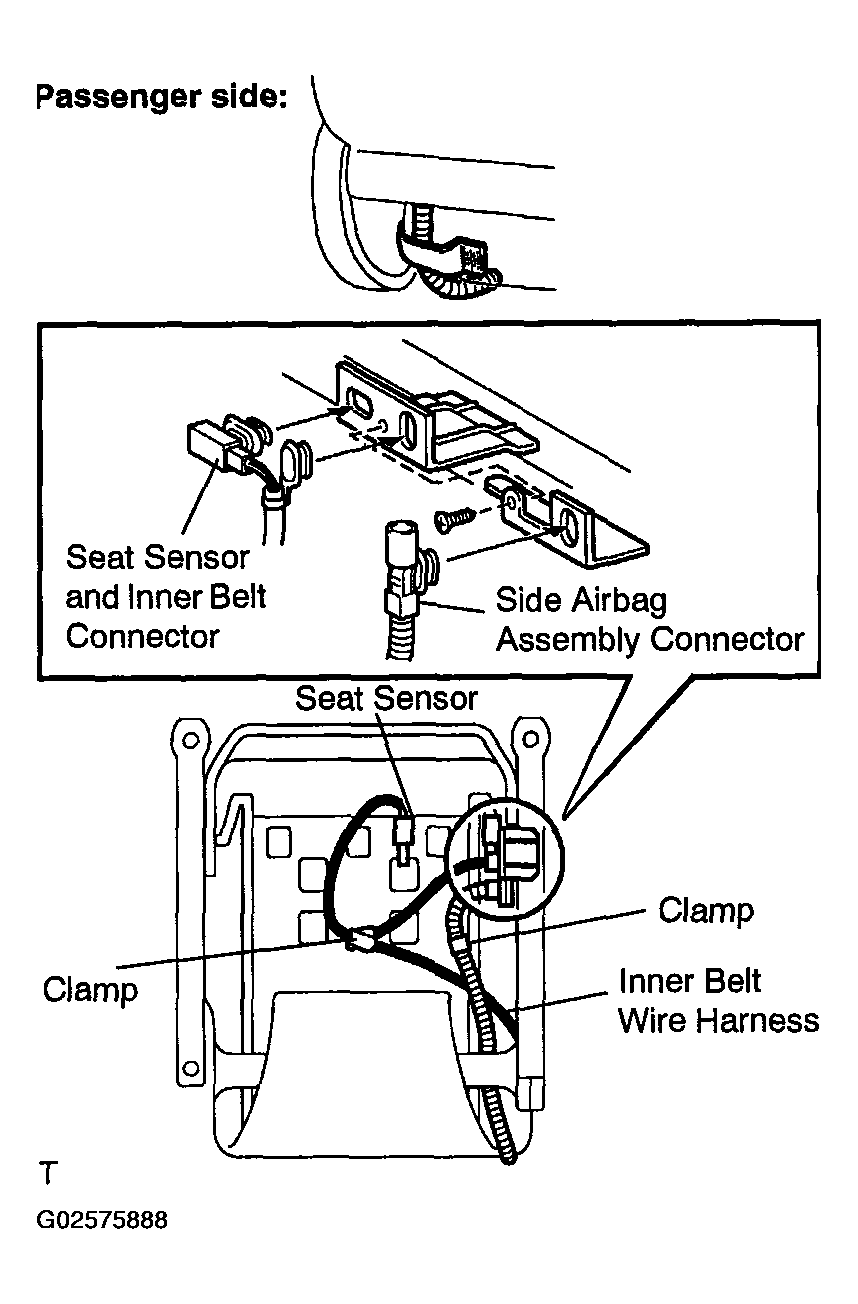

Fig 3: Connecting Inner Belt Connector And Seat Sensor Connector (Passenger Side)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the seat cushion shield with the 2 screws.

1. Slide the front seat to the most front position.
   NOTE: Make sure that seat adjuster locks.
2. Without holding the seat track handle, mount the seat to the vehicle.
   NOTE: If holding the seat track handle, the adjusted most front positions slip off.
   Fig 5: Installing Front Seat

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the connectors.
4. Tighten the bolts on the rear side temporarily, from the bolt on the inner side tighten them completely.

   Torque: 37 N.m (375 kgf.cm, 27 ft.lbf)

5. Slide the seat to the most rear position to install the bolts on the front side.

   Torque: 37 N.m (375 kgf.cm, 27 ft.lbf)

6. Install the seat track covers.
