Side Airbag Assembly: Disposal

NOTE: When scrapping vehicles equipped with an SRS or disposing of the side airbag assembly always first deploy the airbag in accordance with the procedure described below. If any abnormality occurs with the airbag deployment, contact the SERVICE DEPT. of the SERVICE DEPT. of DISTRIBUTOR.
CAUTION:
  • Never dispose of a steering wheel pad of which airbag has not been deployed.
  • The airbag produces a sizeable exploding sound when it deploys, so perform the operation out of doors and where it will not create a nuisance to nearby residents.
  • When deploying the airbag, always use the specified SST (SRS Airbag Deployment Tool), perform the operation in a place away from electrical noise.

    SST 09082-00700

  • When deploying an airbag, perform the operation at least 10 m (33 ft) away from the airbag assembly.
  • The side airbag assembly is very hot when the airbag is deployed, so leave it alone for at least 30 minutes after deployment.
    Fig 1: Deploying Airbag Using SST (SRS Airbag Deployment Tool)
    G02575869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  • Use gloves and safety glasses when handling side airbag assembly with the deployed airbag.
  • Always wash your hands with water after completing the operation.
  • Do not apply water, etc. to a side airbag assembly with the deployed airbag.
  1. AIRBAG DEPLOYMENT WHEN SCRAPPING VEHICLE
    NOTE: Have a battery ready as the power source to deploy the airbag.
    1. Check functioning of the SST (See step 1-(a) on DISPOSAL ).

      SST 09082-00700

      Fig 2: Checking Functioning Of SST
      G02575870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the side airbag connector.
      NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
      Fig 3: Disconnecting Side Airbag Connector
      G02575871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the SST.
      1. Connect the connector of 2 SST to the airbag connector.

        SST 09082-00700, 09082-00750

        NOTE: To avoid damaging the SST connector and wire harness, do not lock the secondary lock of the twin lock.

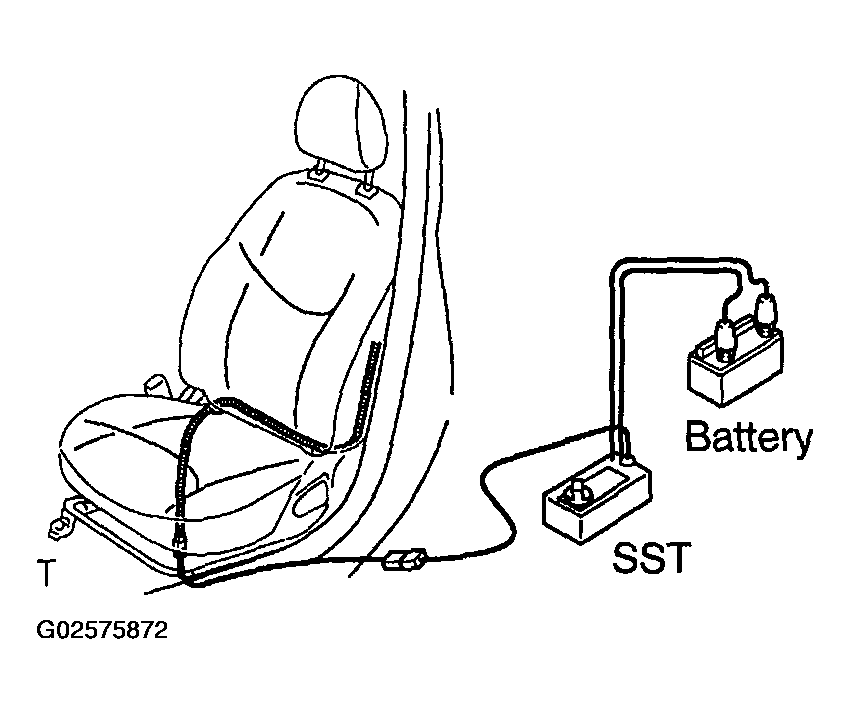

        Fig 4: Connecting Connector 2 SST To Airbag Connector
        G02575872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Move the SST at least 10 m (33 ft) away from the front of the vehicle.
      3. Close all the doors and windows of the vehicle.
        NOTE: Take care not to damage the SST wire harness.
      4. Connect the SST red clip to the battery positive (+) terminal and the black clip to the battery negative (-) terminal.
        Fig 5: SST Moving Distance
        G02575873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Deploy the airbag.
      1. Check that no one is inside the vehicle or within 10 m (33 ft) area around the vehicle.
      2. Press the SST activation switch and deploy the airbag.
      NOTE: The airbag deploys simultaneously as the LED of SST activation switch lights up.
    5. Dispose of side airbag assembly.
    Fig 6: Deploying Airbag
    G02575874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    CAUTION:
    • The side airbag assembly is very hot when the airbag is deployed, so leave it alone for at least 30 minutes after deployment.
    • Use gloves and safety glasses when handling a side airbag assembly with the deployed airbag.
    • Do not apply water, etc. to a side airbag assembly with the deployed airbag.
    • Always wash your hands with water after completing the operation.

    When scrapping a vehicle, deploy the airbag and scrap the vehicle with the side airbag assembly still installed.

  2. DEPLOYMENT WHEN DISPOSING OF SIDE AIRBAG ASSEMBLY
    NOTE:
    • When disposing of the side airbag assembly only, never use the customer's vehicle to deploy the airbag.
    • Be sure to follow the procedure given below when deploying the airbag.
    NOTE: Have a battery ready as the power source to deploy the airbag.
    1. Remove the seatback assembly. (See REMOVAL )
    2. Remove the side airbag assembly from the seatback assembly.
      CAUTION: Store the side airbag assembly with the airbag deployment side facing upward.
      Fig 7: Removing Seatback Assembly
      G02575875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Fix the side airbag assembly.
      1. Install the 2 nuts to the side airbag assembly.
        Fig 8: Installing Nuts
        G02575876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Using a service-purpose wire harness tie down the side airbag assembly.

        Wire harness: Stripped wire harness section 1.25 mm2 or more (0.0019 in2 or more)

        NOTE: To calculate the square of the stripped wire harness section-Square = 3.14 x (Diameter)2 divided by 4
        Fig 9: Identifying Wire Harness Diameter
        G02575877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        CAUTION: If a wire harness which is too thin or some other thing is used to tie down the side airbag assembly, it may be snapped by the shock when the airbag is deployed. This is highly dangerous. Always use a wire harness for vehicle use which is at least 1.25 mm2 (0.0019 in2 ).
      3. Wind the wire harness around the stud bolts of the side airbag assembly as shown in the illustration.
        Fig 10: Locating Wire Harness Around Stud Bolts
        G02575878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Position the side airbag assembly inside the tire with the airbag deployment direction facing inside.

      Tire size: Must exceed the following dimensions:-

      Width 185 mm (7.28 in.)

      Inner diameter 360 mm (14.17 in.)

      CAUTION:
      • Make sure the wire harness is tight. It is very dangerous when a loose wire harness results in the side airbag assembly coming free due to the shock from the airbag deploying.
      • Always tie down the side airbag assembly with the airbag door facing inside.
      NOTE: The tire will be marked by the airbag deployment, so when disposing of the airbag use a redundant tire.
      Fig 11: Identifying Inside Tire Diameter
      G02575879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Check functioning of the SST.

      SST 09082-00700

    5. Install the SST.

      Connect the connector of 2 SST to the side airbag assembly connector.

      SST 09082-00700, 09082-00750

      NOTE: To avoid damaging the SST connector and wire harness, do not lock the secondary lock of the twin lock.
      Fig 12: Checking Functioning Of SST
      G02575880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Place the tires.
      1. Place at least 2 tires under the tire to which the side airbag assembly is tied.
      2. Place at least 2 tires over the tire to which the side airbag assembly is tied. The top tire should have the wheel installed.
        Fig 13: Placing Tires
        G02575881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Tie the tires together with 2 wire harness.
      CAUTION: Make sure that the wire harness are tight. It is very dangerous when loose wire harness results in the tires coming free due to the shock from the airbag deploying.
      NOTE: Place the SST connector and wire harness inside tires. Secure at least 1 m (3 ft) of slack for the wire harness.

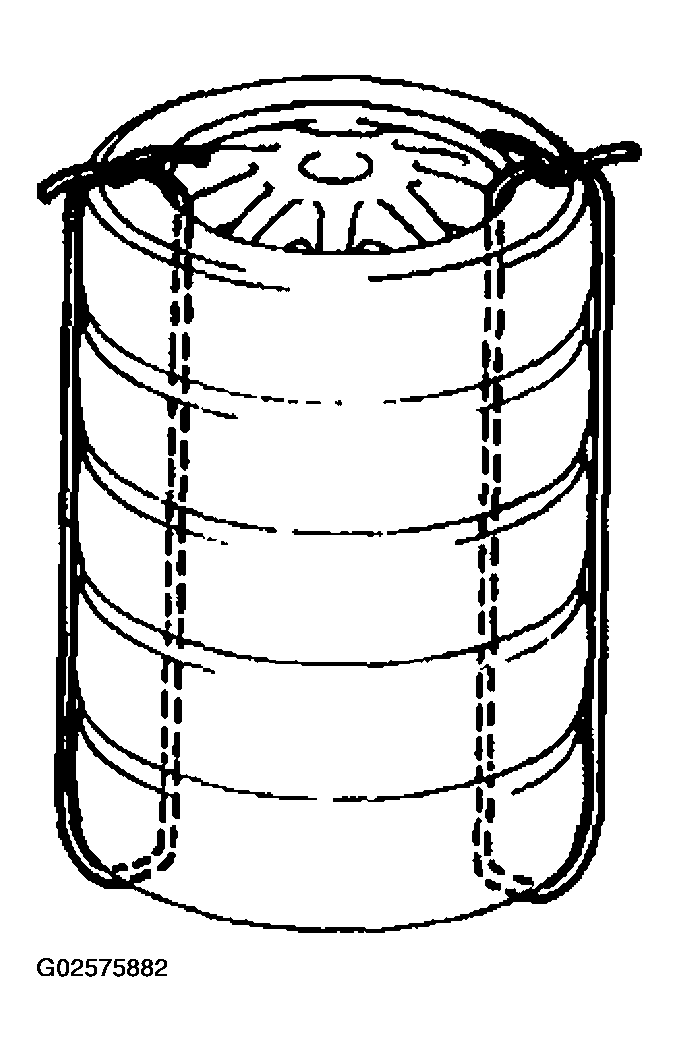

      Fig 14: Tie Tires Together With 2 Wire Harness
      G02575882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Deploy the airbag.
      1. Connect the SST red clip to the battery positive (+) terminal and the black clip to the battery negative (-) terminal.
      2. Check that no one is within 10 m (33 ft) area around the tire which the side airbag assembly is tied to.
      3. Press the SST activation switch and deploy the airbag.
      NOTE: The airbag deploys simultaneously as the LED of the SST activation switch lights up.

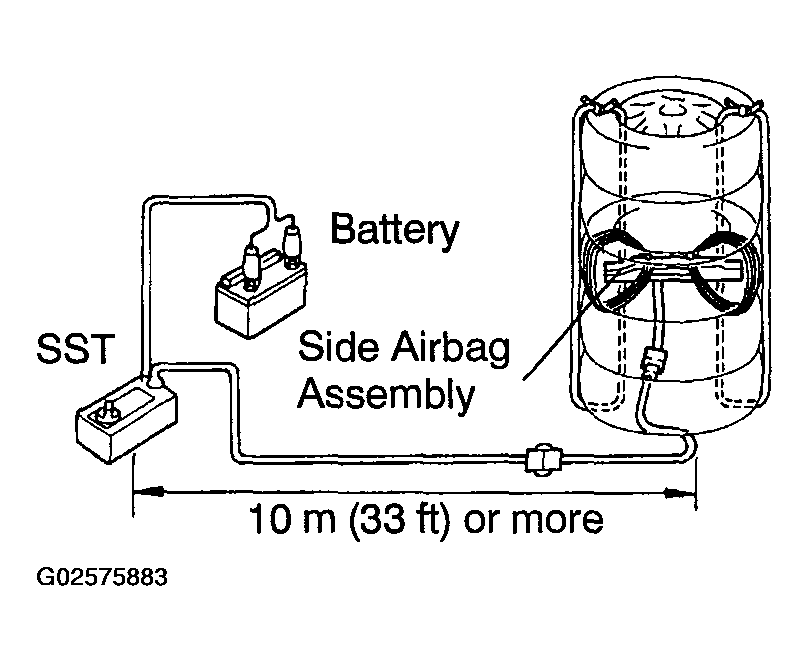

      Fig 15: Deploying Airbag
      G02575883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Dispose of the side airbag assembly.
    CAUTION:
    • The side airbag assembly is very hot when the airbag is deployed, so leave it alone for at least 30 minutes after deployment.
    • Use gloves and safety glasses when handling a side airbag assembly with the deployed airbag.
    • Do not apply water etc. to a side airbag assembly with the deployed airbag.

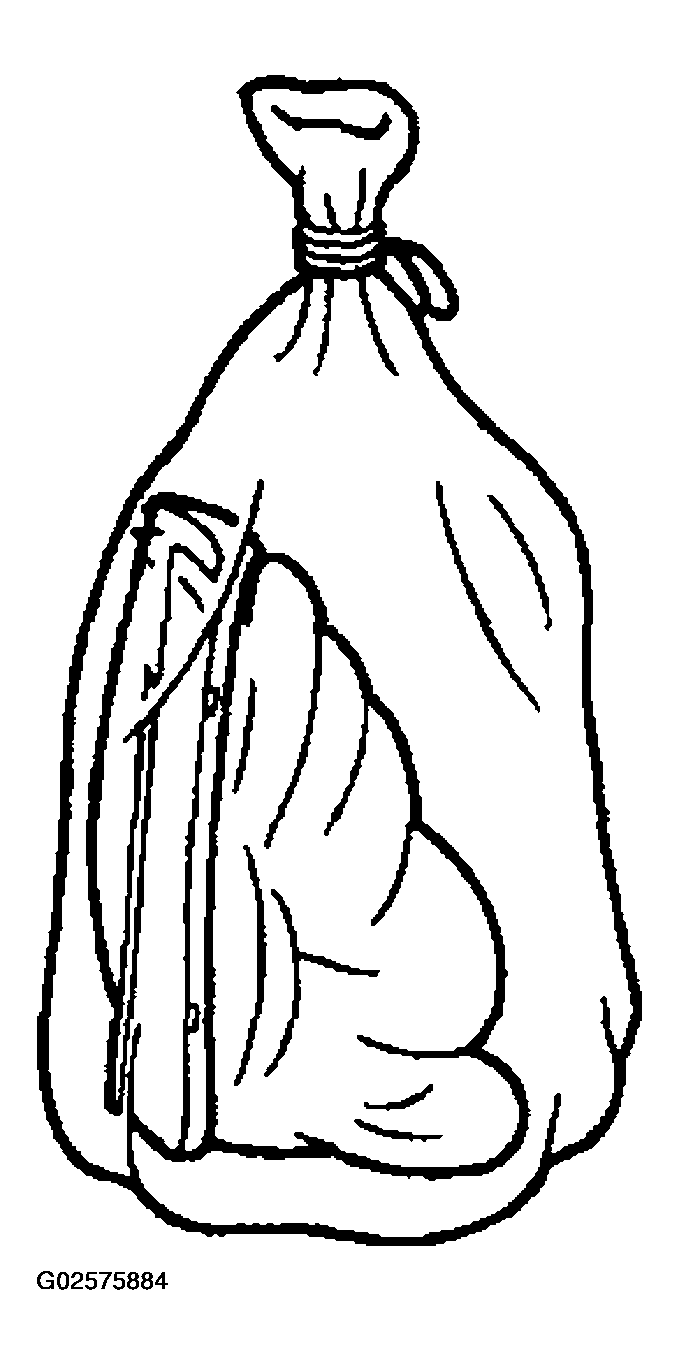

      Fig 16: Placing Side Airbag Assembly In A Vinyl Bag (1 Of 2)
      G02575884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • Always wash your hands with water after completing the operation.
    1. Remove the side airbag assembly from the tire.
    2. Place the side airbag assembly in a vinyl bag, tie the end tightly and dispose of it in the same way as other general parts disposal.
  3. DEPLOYMENT WHEN DISPOSING OF SIDE AIRBAG ASSEMBLY WITH AIRBAG DEPLOYED IN COLLISION

    Dispose of the side airbag assembly.

    CAUTION:
    • The side airbag assembly is very hot when the airbag is deployed, so leave it alone for at least 30 minutes after deployment.
    • Use gloves and safety glasses when handling a side airbag assembly with the deployed airbag.

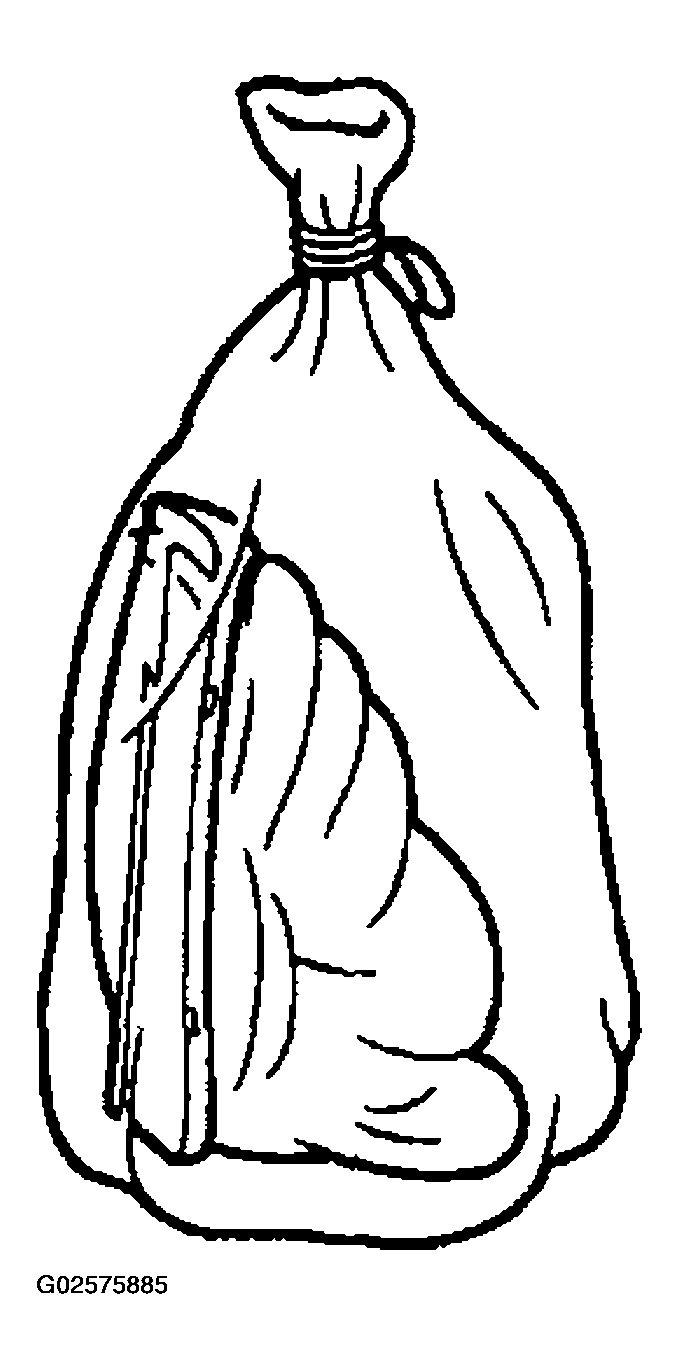

      Fig 17: Placing Side Airbag Assembly In A Vinyl Bag (2 Of 2)
      G02575885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • Do not apply water etc. to a side airbag assembly with the deployed airbag.
    • Always wash your hands with water after completing the operation.
    1. Remove the side airbag assembly from the vehicle.
    2. Place the side airbag assembly in a vinyl bag, tie the end tightly and dispose of it in the same way as other general parts disposal.
