DOOR SIDE AIRBAG SENSOR (2-Door): Removal
NOTE:
- If the wiring connector of the SRS is disconnected with the ignition switch at ON or ACC position, DTCs will be recorded.
- Never use SRS parts from another vehicle. When replacing parts, replace them with new parts.
- Never reuse the sensor involved in a collision when the SRS has deployed.
- Never repair a sensor in order to reuse it.
NOTE:
For step 1 to 5, refer to
SEAT BELT PRETENSIONER (SEDAN)
.
- w/o Power window: REMOVE REGULATOR HANDLE
- w/ Power window: REMOVE POWER WINDOW SWITCH
- REMOVE LOWER FRAME BRACKET GARNISH
- REMOVE PULL HANDLE
- REMOVE DOOR TRIM
- REMOVE DOOR SIDE AIRBAG SENSOR
- Disconnect the door side airbag sensor connector.NOTE: Disconnect the connector with sensor assembly installed.

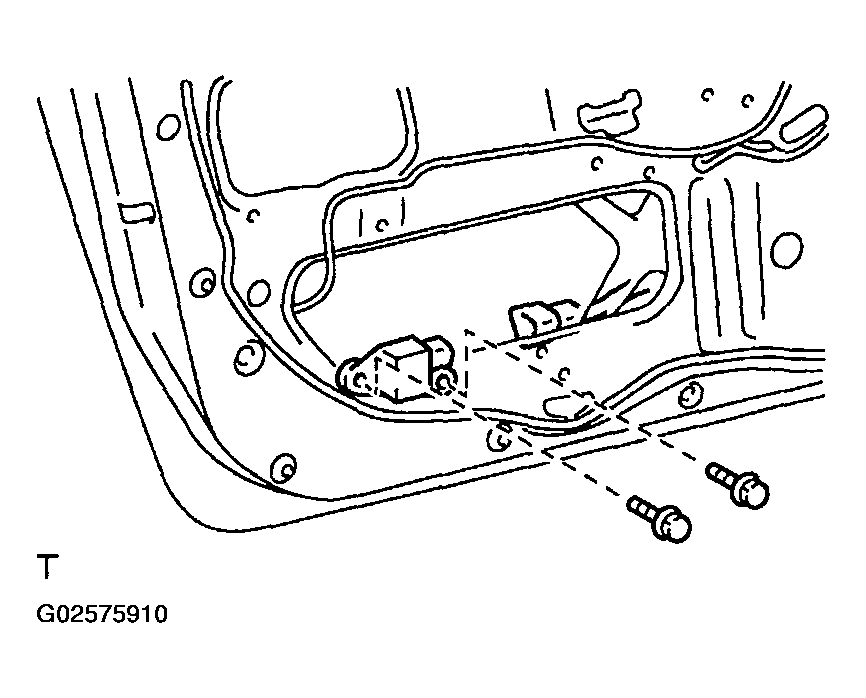

- Remove the 2 bolts and door side airbag sensor.
- Disconnect the door side airbag sensor connector.
