Section 8 (Seat Belt PRETENSIONER (Sedan)): Installation

WARNING: This page is about a different variant/trim than selected.

NOTE:

Never use a seat belt pretensioner from another vehicle. When replacing parts, replace them with new parts.
Make sure that the front seat outer belt is installed with the specified torque.
If the front seat outer belt has been dropped, or there are cracks, dents or other defects in the case or connector, replace the front seat outer belt with a new one.
When installing the front seat outer belt, take care that the wiring does not interfere with other parts and is not pinched between other parts.

INSTALL FRONT SEAT OUTER BELT
1. Install the retractor of the front seat outer belt with the 2 bolts.
  Torque:

  Upper bolt: 4.7 N.m (48 kgf.cm, 42 in.lbf)

  Lower bolt: 41 N.m (420 kgf.cm, 30 ft.lbf)
2. Connect the pretensioner connector as shown in the illustration.
3. 4-door vehicle:
  Install the front seat shoulder anchor with the bolt.

  Torque: 41 N.m (420 kgf.cm, 30 ft.lbf)

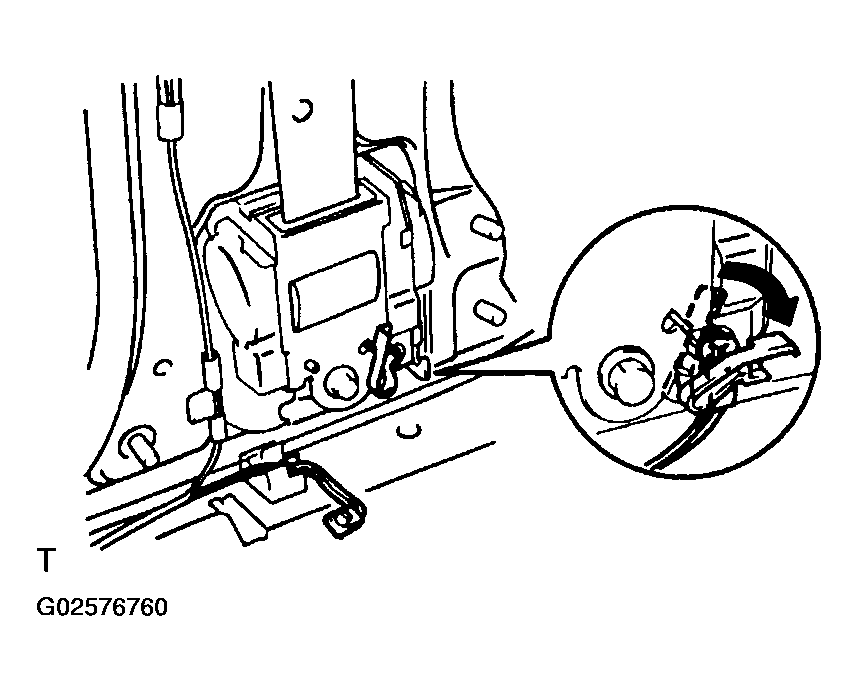

Fig 1: Connecting Pretensioner Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2-door vehicle:
INSTALL CENTER PILLAR TO FLOOR REINFORCEMENT

Install the center pillar to floor reinforcement with the 5 bolts and 2 nuts.

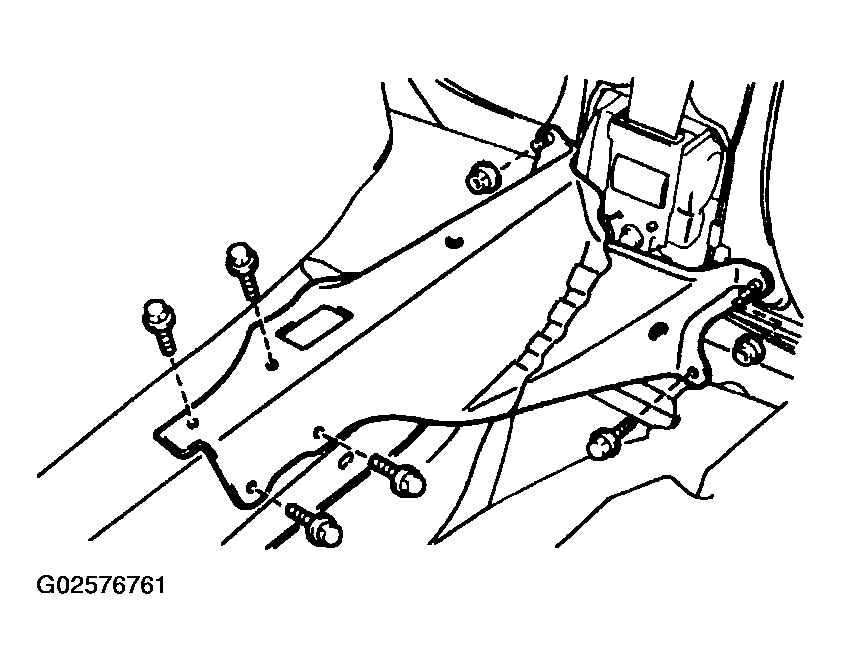

Fig 2: Installing Center Pillar To Floor Reinforcement With Bolts And Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2-door vehicle:
INSTALL ROOF SIDE INNER GARNISH
1. Install the roof side inner garnish to the body.
2. Install the clips.
3. Install the front seat outer belt shoulder anchor with the bolt.
  Torque: 41 N.m (420 kgf.cm, 30 ft.lbf)

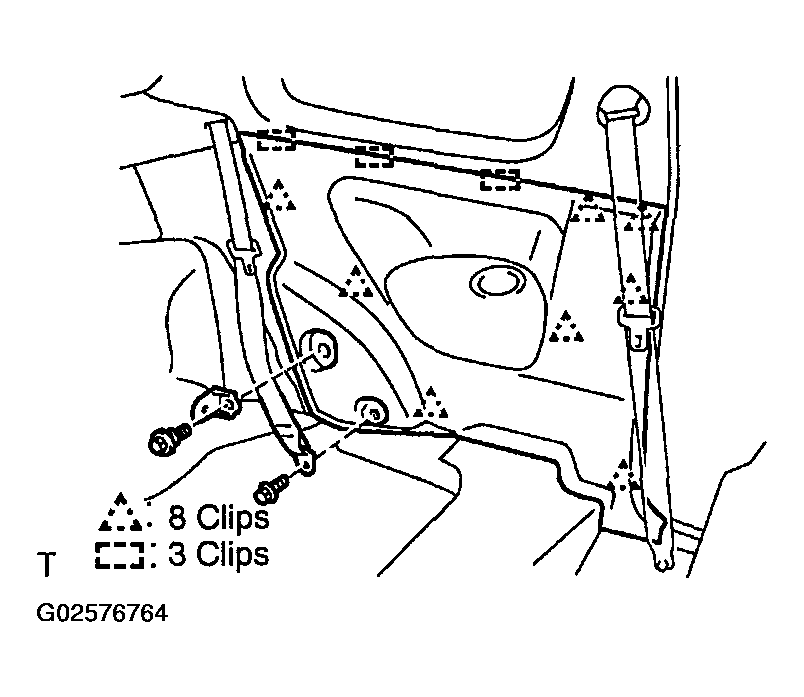

Fig 3: Identifying Roof Side Inner Garnish
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4-door vehicle:
INSTALL CENTER PILLAR LOWER GARNISH
1. Install the center pillar lower garnish to the body.
2. Install the front seat outer belt floor anchor with the bolt.
  Torque: 41 N.m (420 kgf.cm, 30 ft.lbf)
3. Install the front seat outer belt floor anchor cover cap.
Fig 4: Locating Center Pillar Lower Garnish
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2-door vehicle:
INSTALL QUARTER TRIM
1. Install the quarter trim to the body.
2. w/ Split type rear seat:
  Install the rear seatback hinge with the bolt.

  Torque: 41 N.m (420 kgf.cm, 30 ft.lbf)
3. Install the rear seat outer belt floor anchor with the bolt.
  Torque: 41 N.m (420 kgf.cm, 30 ft.lbf)
Fig 5: Installing Rear Seat Outer Belt Floor Anchor With Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2-door vehicle:
INSTALL REAR SEATBACK

(See INSTALLATION (SEDAN W/SEPARATE TYPE) or INSTALLATION (SEDAN W/BENCH TYPE) )
2-door vehicle:
INSTALL REAR SEAT CUSHION

(See INSTALLATION (SEDAN W/SEPARATE TYPE) or INSTALLATION (SEDAN W/BENCH TYPE) )
2-door vehicle:
INSTALL FRONT DOOR OPENING TRIM
4-door vehicle:
INSTALL REAR DOOR SCUFF PLATE
INSTALL FRONT DOOR SCUFF PLATE
