Section 7 (Seat Belt (Sedan))
>>
Components
Section 7 (Seat Belt (Sedan)): Components
WARNING:
This page is about a different variant/trim than selected.

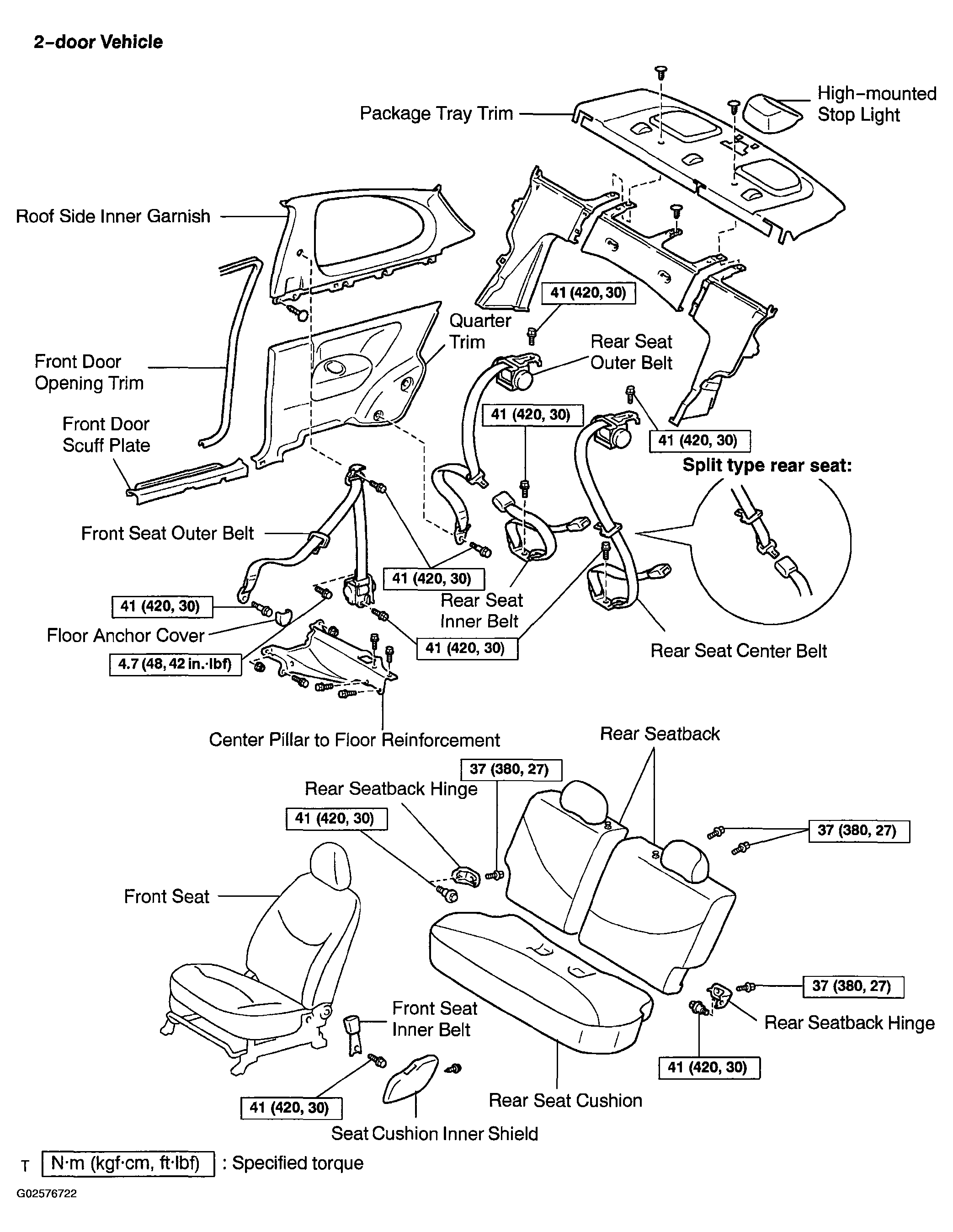

Fig 1: Identifying Components Of Seat Belt (Sedan) (2-Door Vehicle)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

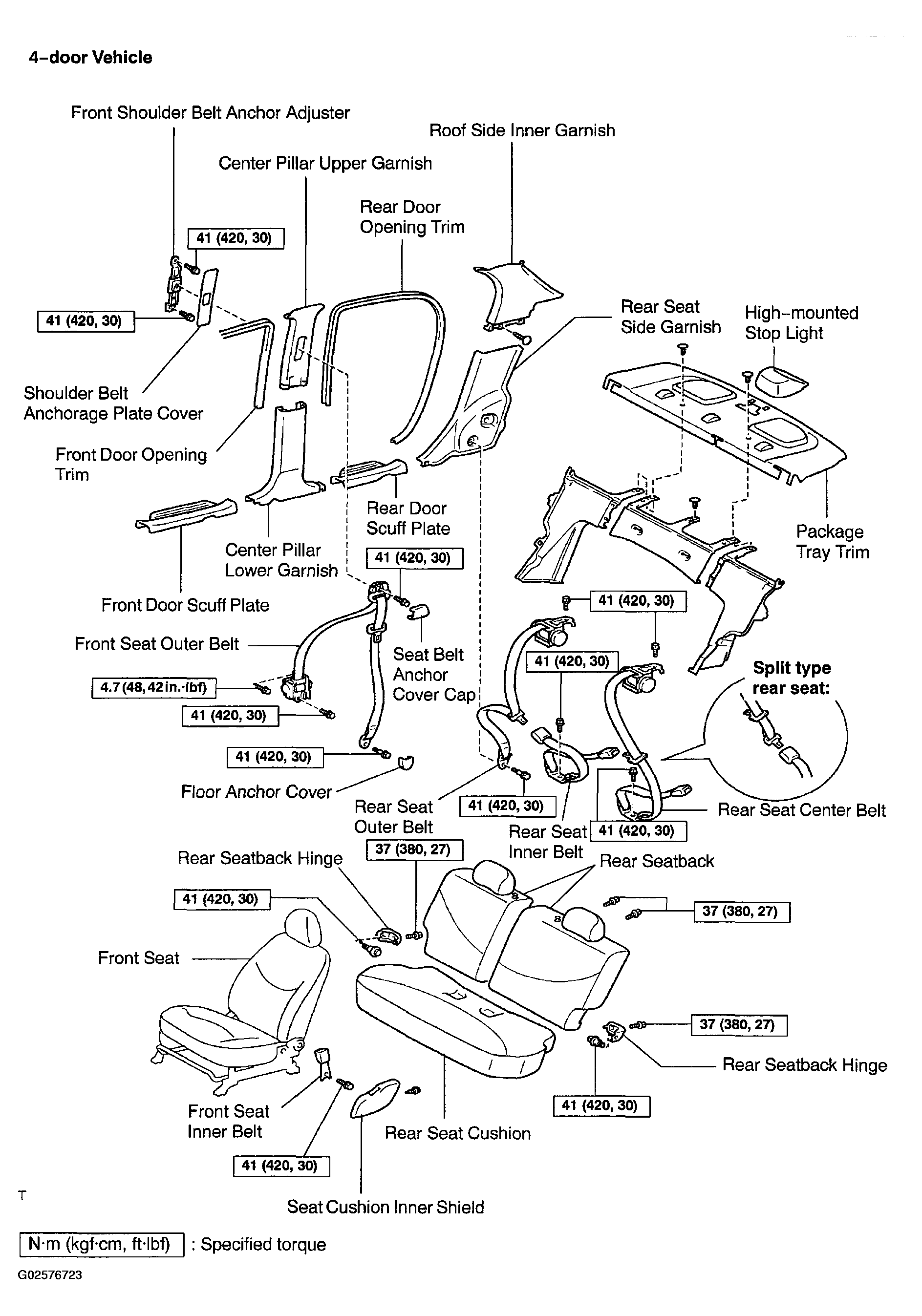

Fig 2: Identifying Components Of Seat Belt (Sedan) (4-Door Vehicle)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
