Section 5 (Rear Seat (Sedan With Separate Type)): Reassembly

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL SEATBACK LOCK
    1. Install the seatback lock to the seatback frame with the 2 bolts.
    2. Install the other using the same procedures described above.
  2. INSTALL SEATBACK FRAME
    1. Install the seatback frame to the seatback cover with the pad.
    2. Instal the seatback lock knob holder and 2 headrest supports.
      Fig 1: Installing Seatback Lock To Seatback Frame With Bolts
      G02576693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the hog rings as shown in the illustration.
      NOTE: When installing hog rings, take care to prevent wrinkles as much as possible.
    4. Install the seatback lock knob.

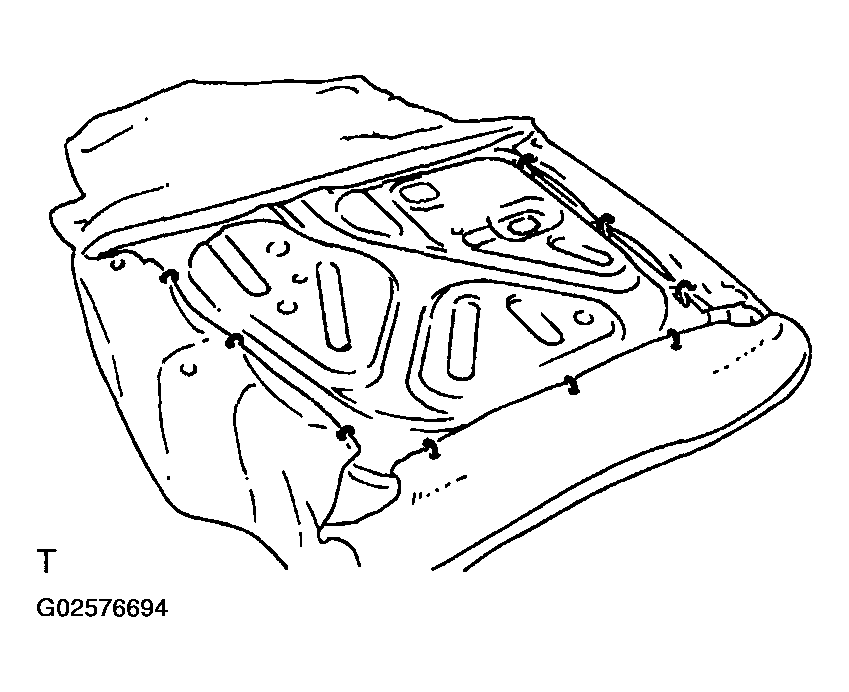

      Fig 2: Installing Hog Rings
      G02576694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the 5 clips.
    6. Install the other using the same procedures described above.
    Fig 3: Installing Clips
    G02576695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
