Section 5 (Rear Seat (Sedan With Separate Type)): Disassembly

WARNING: This page is about a different variant/trim than selected.

REMOVE SEATBACK FRAME
1. Remove the headrest.
2. Remove the 5 clips.
3. Remove the seatback lock knob.

  Fig 1: Removing Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the hog rings.
5. Remove the seatback lock knob holder and 2 headrest supports.
6. Remove the seatback frame from the seatback cover with pad.
7. Remove the other using the same procedures described above.

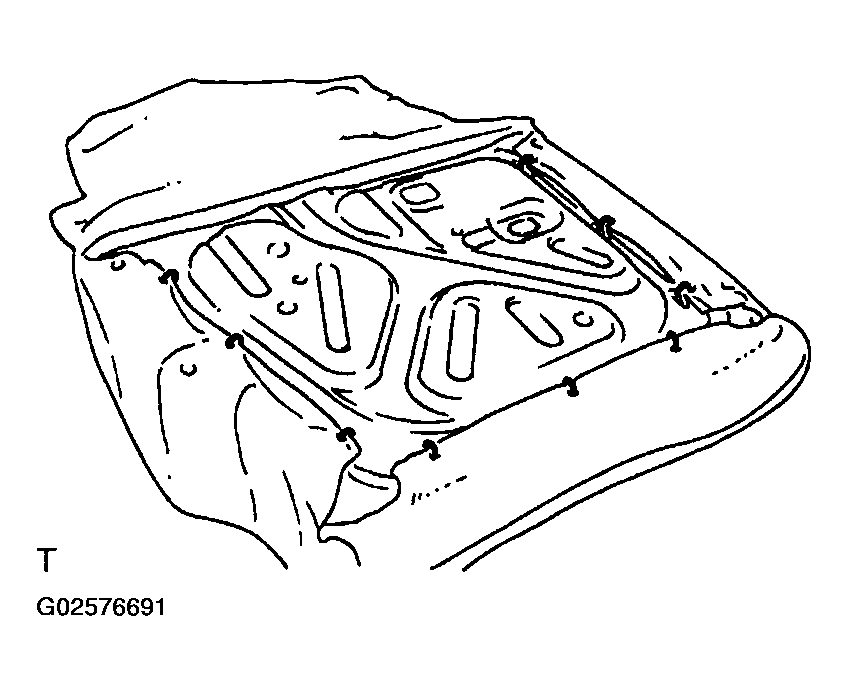

Fig 2: Removing Hog Rings
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SEATBACK LOCK
1. Remove the 2 bolts and seatback lock from the seatback frame.
2. Remove the other using the same procedures described above.
Fig 3: Removing Bolts And Seatback Lock From Seatback Frame
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
