Section 5 (Rear Seat (Sedan With Separate Type)): Components

WARNING: This page is about a different variant/trim than selected.

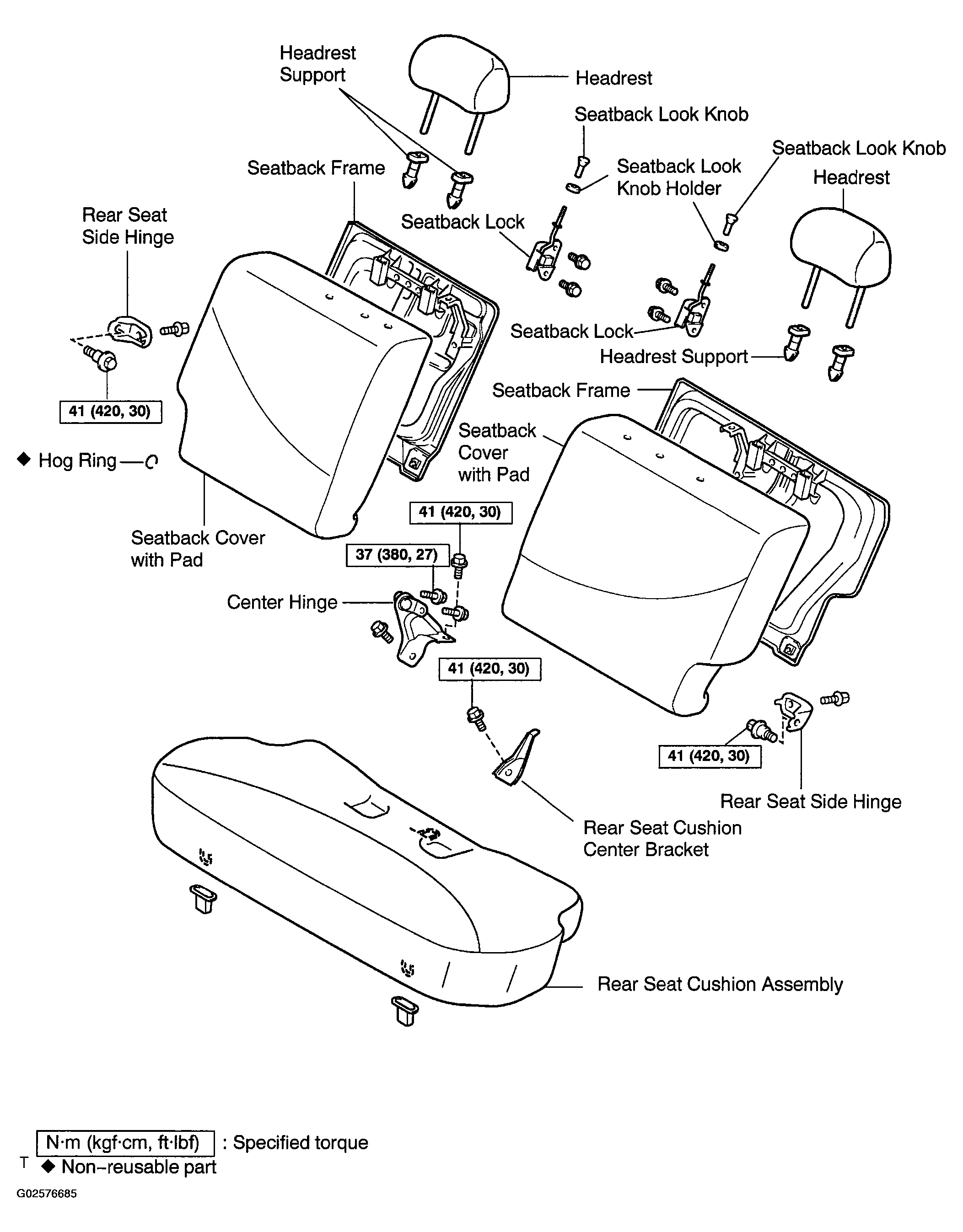

Fig 1: Identifying Components Of Rear Seat (Sedan With Separate Type)
G02576685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
