On-Vehicle Repair

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE LH ENGINE UNDER COVER
  2. REMOVE DRAIN PLUG AND DRAIN ATF
  3. REMOVE OIL PAN AND GASKET

    Remove the 19 bolts, oil pan and gasket.

    NOTE: Some fluid will remain in the oil pan. Remove all pan bolts, and carefully remove the oil pan assembly. Discard the gasket.

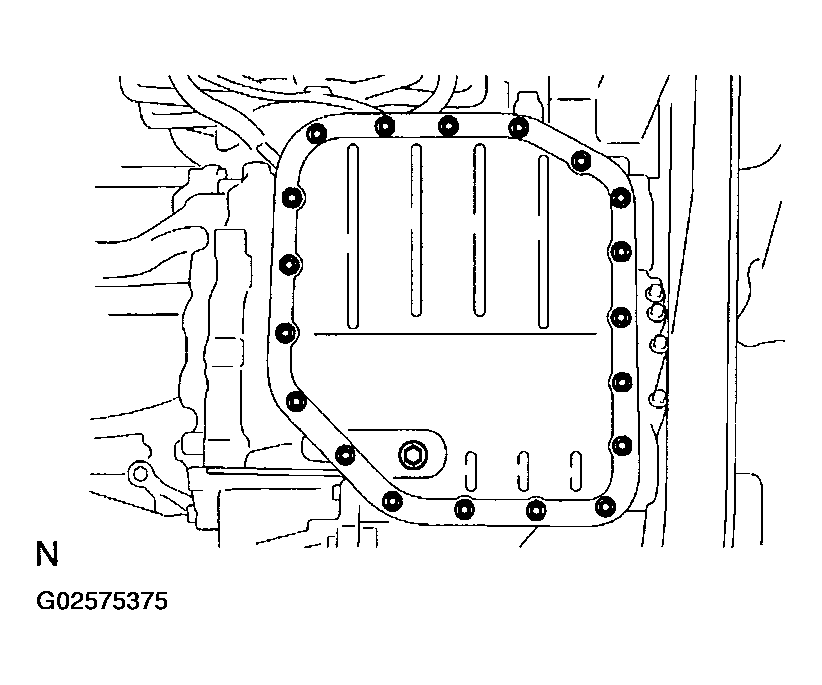

    Fig 1: Removing Oil Pan And Gasket
    G02575375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE 2 MAGNETS FROM OIL PAN
    Fig 2: Removing Magnets From Oil Pan
    G02575376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. EXAMINE PARTICLES IN PAN

    Remove the magnets and use them to collect any steel chips. Look carefully at the chips and particles in the pan and the magnet to anticipate what type of wear you will find in the transaxle. Steel (magnetic): bearing, gear and plate wear Brass (non-magnetic): bearing wear

    Fig 3: Identifying Particles In Pan
    G02575377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE OIL STRAINER
    NOTE: Be careful as some fluid will come out with the oil strainer.
    1. Remove the 3 bolts and oil strainer.

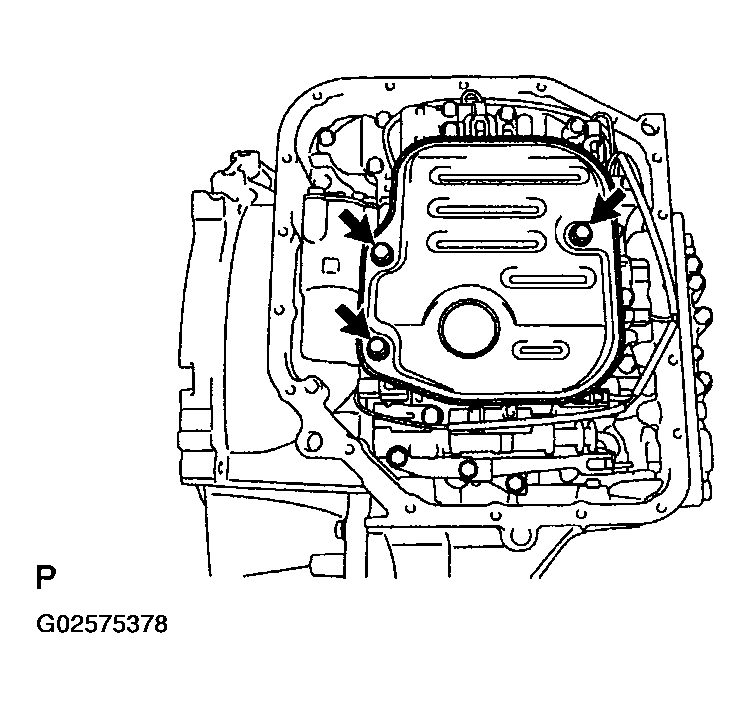

      Fig 4: Removing Oil Strainer
      G02575378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the oil strainer.
    Fig 5: Removing O-Ring From Oil Strainer
    G02575379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. DISCONNECT 5 SHIFT SOLENOID VALVE CONNECTORS
  8. DISCONNECT ATF TEMPERATURE SENSOR

    Remove the bolt and lock plate, and remove the ATF temperature sensor.

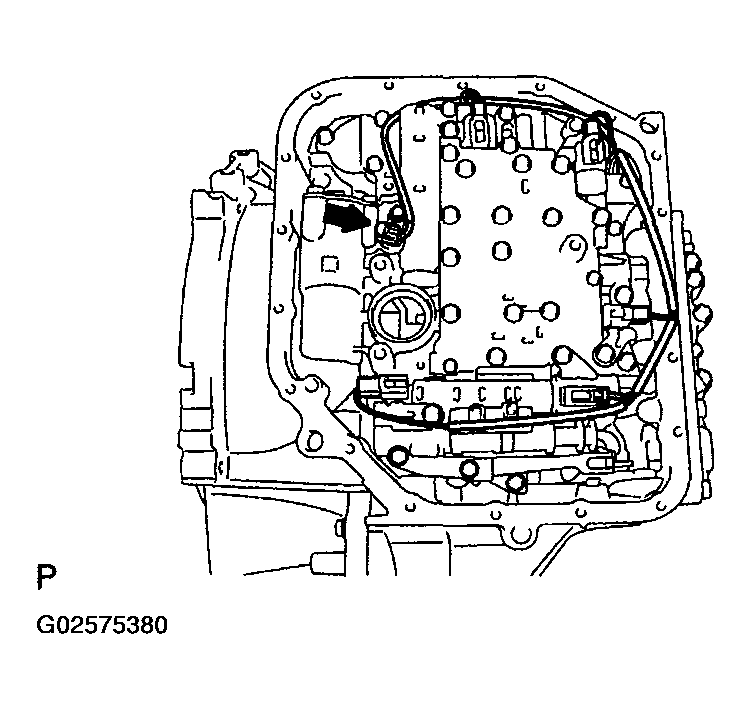

    Fig 6: Disconnecting ATF Temperature Sensor
    G02575380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE VALVE BODY
    1. Remove the 2 bolts, cover and detent spring.
    2. Remove the 12 bolts and valve body.
    NOTE: Be careful not to drop the check valve body, spring and accumulator piston.

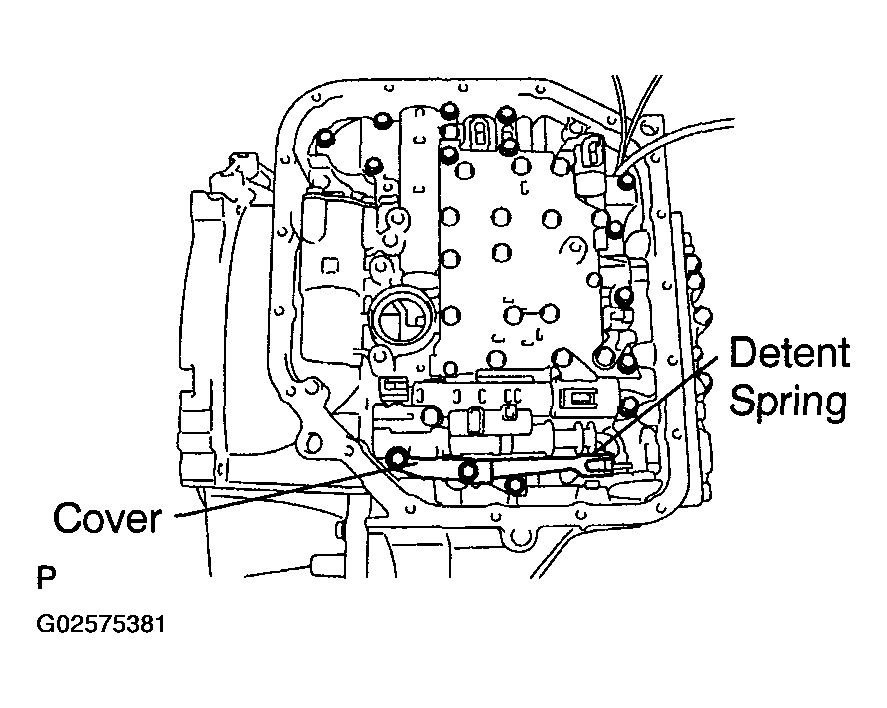

    Fig 7: Removing Valve Body
    G02575381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE CHECK BALL BODY

    Remove the check ball body and spring.

    Fig 8: Removing Check Ball Body
    G02575382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE 2 APPLY GASKETS

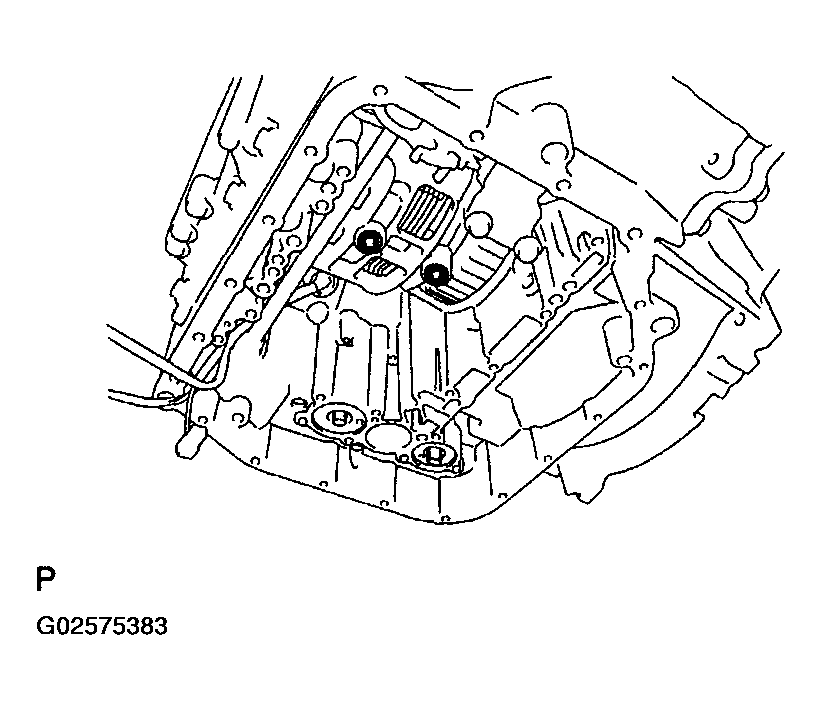

    Fig 9: Applying Gaskets
    G02575383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE SHIFT SOLENOID VALVE

    Remove the 5 bolts and 5 shift solenoid valves.

  13. INSTALL 5 SOLENOID VALVES

    Install the 5 shift solenoid valves with the 5 bolts.

    Torque:

    Bolt A: 11 N.m (110 kgf.cm, 8 ft.lbf)

    Bolt B: 11 N.m (110 kgf.cm, 8 ft.lbf)

    Bolt length:

    Bolt A: 12 mm (0.47 in.)

    Bolt B: 45 mm (1.77 In.)

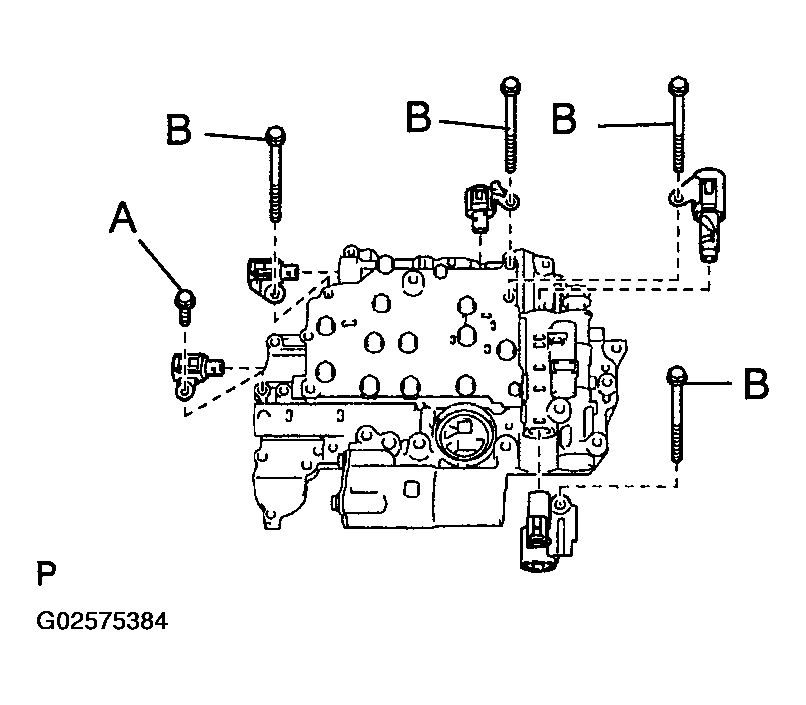

    Fig 10: Installing Solenoid Valves
    G02575384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL APPLY GASKET
    1. Coat 2 new apply gaskets with ATF.
    2. Install the gaskets to the transaxle case.

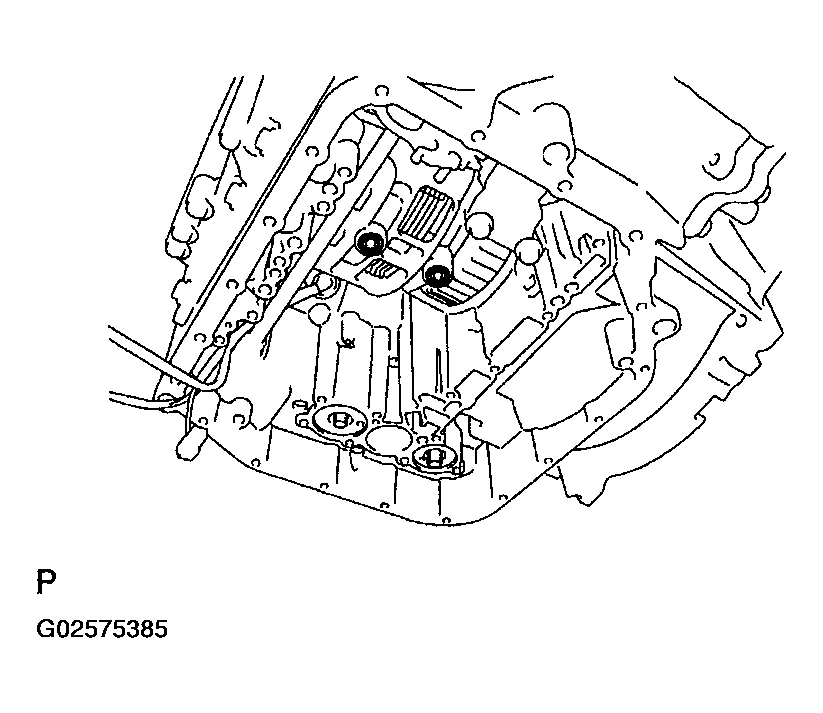

    Fig 11: Installing Apply Gasket
    G02575385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL CHECK BALL BODY

    Install the spring and check ball body.

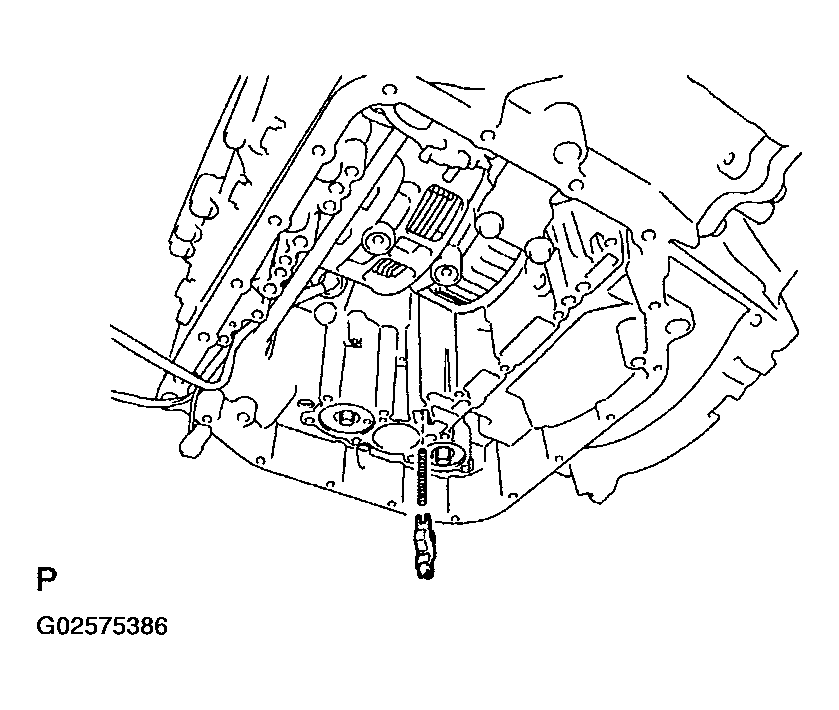

    Fig 12: Installing Check Ball Body
    G02575386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL VALVE BODY
    1. Align the groove of the manual valve with the pin of the manual valve lever.
    2. Temporarily install the valve body with the 12 bolts.

      Bolt length:

      Bolt A: 55 mm (2.17 in.)

      Bolt B: 45 mm (1.77 in.)

      Bolt C: 32 mm (1.26 in.)

      Bolt D: 22 mm (0.87 in.)

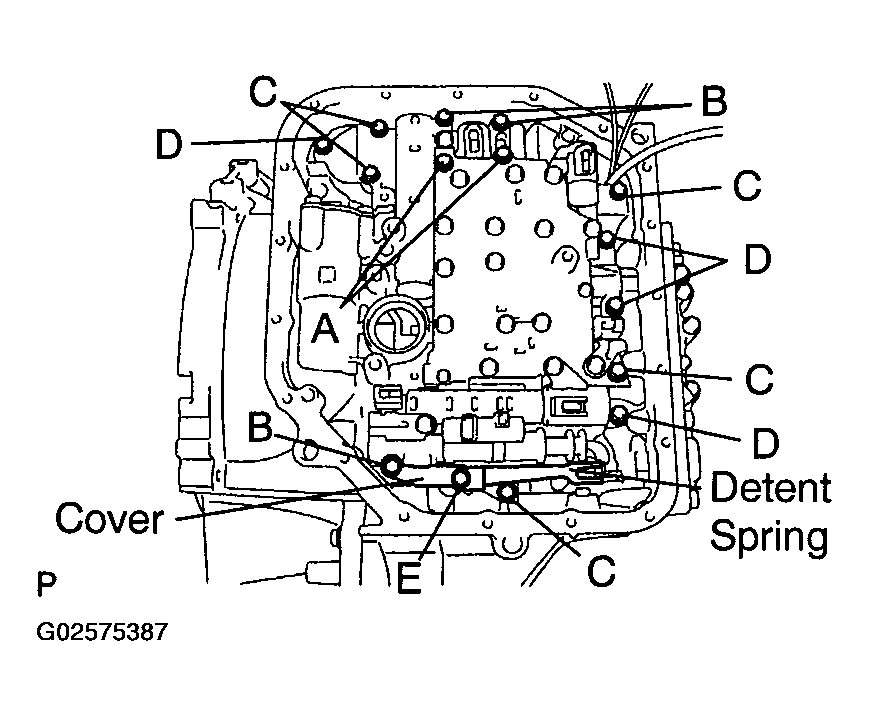

      Fig 13: Installing Valve Body
      G02575387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Temporarily install the detent spring and cover with the 2 bolts.

      Bolt length:

      Bolt B: 45 mm (1.77 in.)

      Bolt E: 14 mm (0.55 in.)

    4. Check that the manual valve lever contacts the center of the roller at the tip of the detent spring.
    5. Tighten the 15 bolts.

      Torque: 11 N.m (110 kgf.cm, 8 ft.lbf)

  17. INSTALL ATF TEMPERATURE SENSOR

    Install the ATF temperature sensor with the lock plate and bolt.

    Torque: 11 N.m (110 kgf.cm, 8 ft.lbf)

  18. CONNECT 5 SHIFT SOLENOID VALVE CONNECTORS

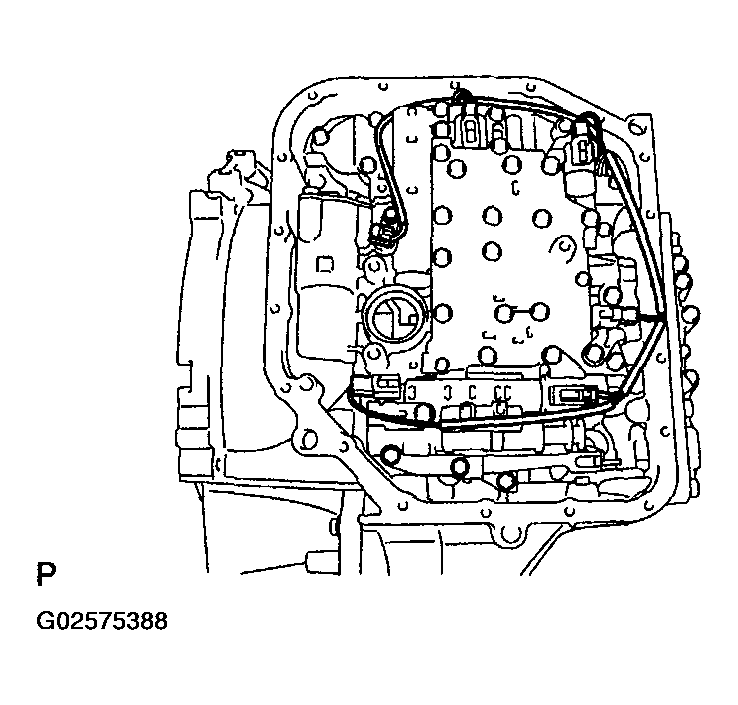

    Fig 14: Connecting Shift Solenoid Valve Connectors
    G02575388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL OIL STRAINER
    1. Coat a new O-ring with ATF.
    2. Install the O-ring to the oil strainer.
      Fig 15: Installing O-Ring To Oil Strainer
      G02575389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the oil strainer with the 3 bolts.

    Torque: 11 N.m (110 kgf.cm, 8 ft.lbf)

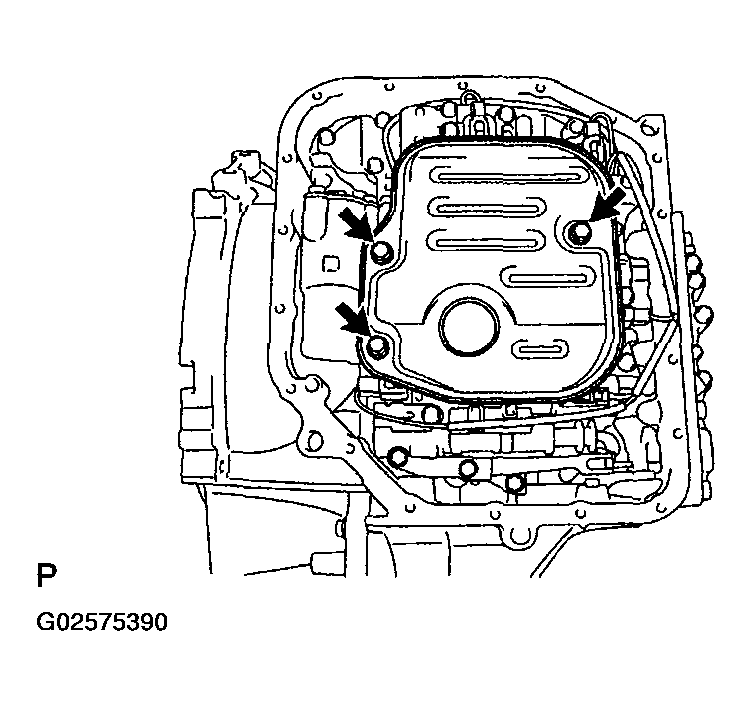

    Fig 16: Installing Oil Strainer With Bolts
    G02575390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL 2 MAGNETS IN OIL PAN
  21. INSTALL OIL PAN AND GASKET
    1. Install a new gasket to the oil pan.
      Fig 17: Installing Gasket To Oil Pan
      G02575391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the oil pan and a new gasket with the 19 bolts.

      Torque: 7.8 N.m (80 kgf.cm, 69 in.lbf)

  22. INSTALL DRAIN PLUG

    Install a new gasket and drain plug.

    Torque: 49 N.m (500 kgf.cm, 36 ft.lbf)

  23. FILL ATF AND CHECK ATF LEVEL (See  PRE-CHECK  )
  24. INSTALL LH ENGINE UNDER COVER
    Fig 18: Installing LH Engine Under Cover
    G02575392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
