Shift Lock System: Inspection

WARNING: This page is about a different variant/trim than selected.

INSPECT SHIFT LOCK CONTROL UNIT ASSEMBLY
Using a voltmeter, measure the voltage at each terminal.

NOTE: Do not disconnect the shift lock control unit assembly connector.

Fig 1: Inspecting Shift Lock Control Unit Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

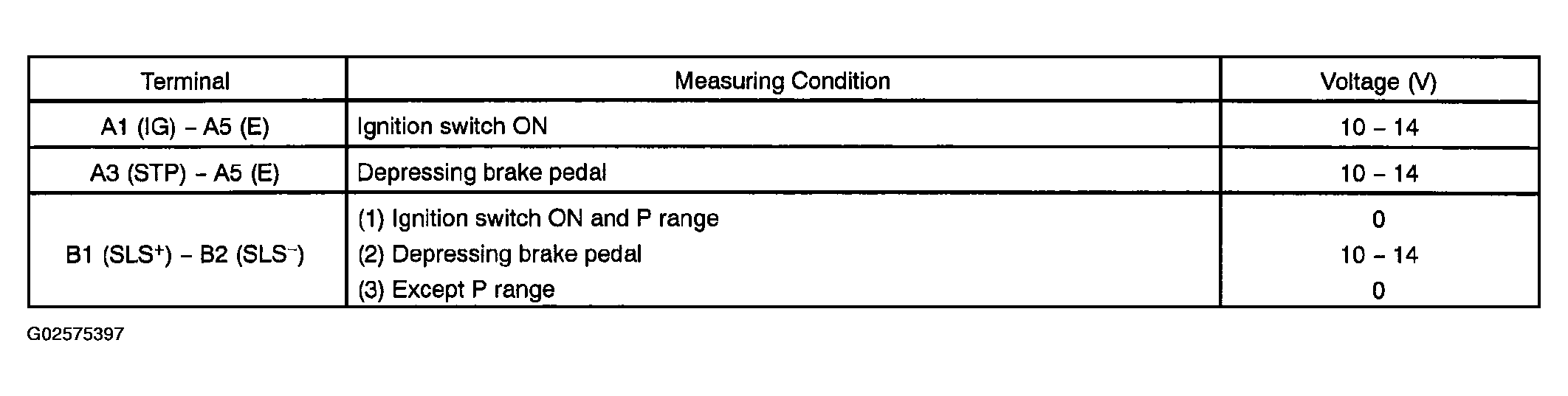

Fig 2: Terminal Voltage Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT SHIFT LOCK SOLENOID
1. Disconnect the solenoid connector.
2. Apply battery positive voltage between terminals 1 and 2.
  Check that operation noise can be heard from the solenoid.
If the solenoid does not operate, replace the solenoid.

Fig 3: Inspecting Shift Lock Solenoid
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
