Floor Shift Assembly: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE O/D MAIN SWITCH TERMINAL
    1. Remove the connector from the shift lever plate.
      Fig 1: Removing Connector From Shift Lever Plate
      G02575405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O/D main switch connector from the shift lever plate.
    3. Disengage the secondary locking device.
    4. Release the locking lug of the terminals 2 and 4, and pull the terminals out from the rearward.
    Fig 2: Removing Terminals Out From Rearward
    G02575406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
    1. Remove the wire harness of the O/D main switch from the shift lever plate.

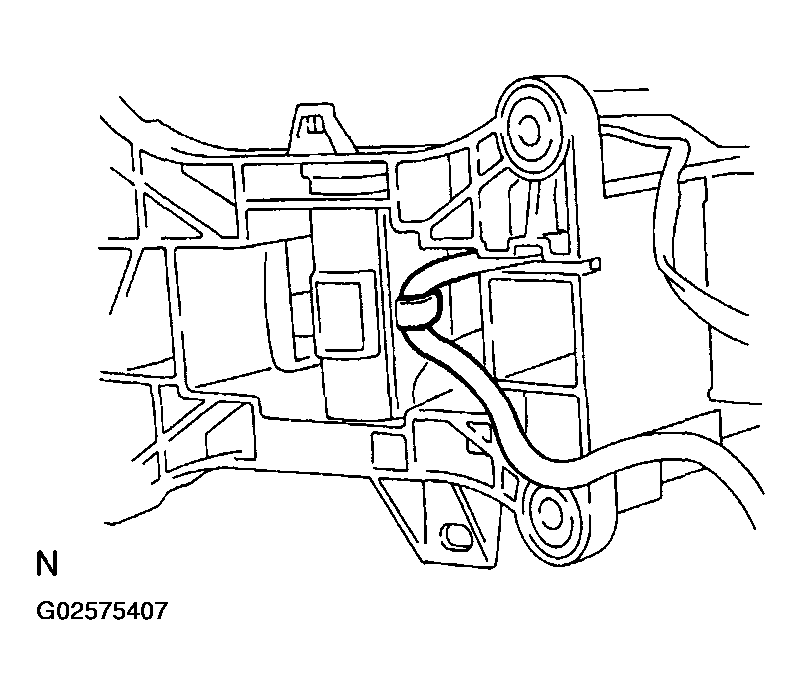

      Fig 3: Removing Shift Lever Knob Sub-Assembly
      G02575407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and shift lever knob sub-assembly.
      NOTE: Pay attention not to apply unnatural load to O/D main switch wire harness.
    3. Remove the shift lever knob cover.
    4. Remove the shift lever button and spring.
    5. Remove the O/D main switch.
    Fig 4: Removing O/D Main Switch
    G02575408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE POSITION INDICATOR HOUSING
    1. Remove the position indicator housing from the shift lever plate.
    2. Remove the cover from the position indicator housing.
    3. Remove the position indicator slide cover from the shift lever plate.
    4. Remove the position indicator plate from the position indicator housing.
    Fig 5: Removing Position Indicator Housing
    G02575409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE SHIFT LOCK UNIT
    1. Remove the screw and shift lock unit.
      Fig 6: Removing Shift Lock Unit
      G02575410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the solenoid from the shift lever plate.

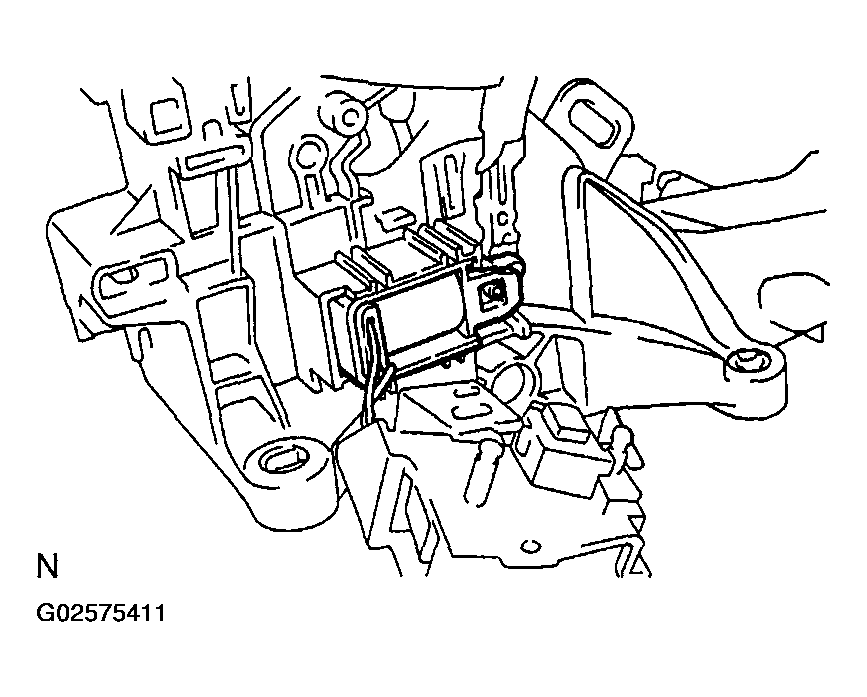

    Fig 7: Removing Solenoid From Shift Lever Plate
    G02575411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE INDICATOR LIGHT WIRE

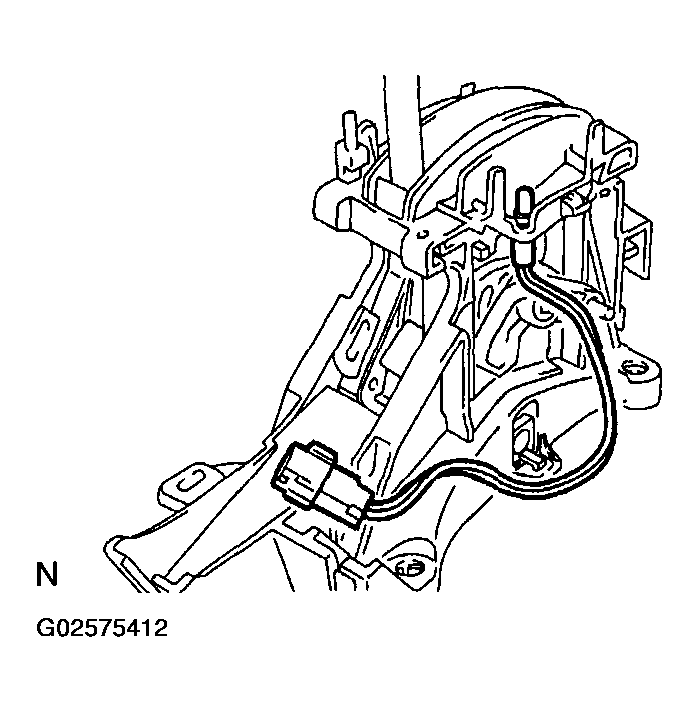

    Fig 8: Removing Indicator Light Wire
    G02575412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE KEY INTERLOCK CABLE ROD

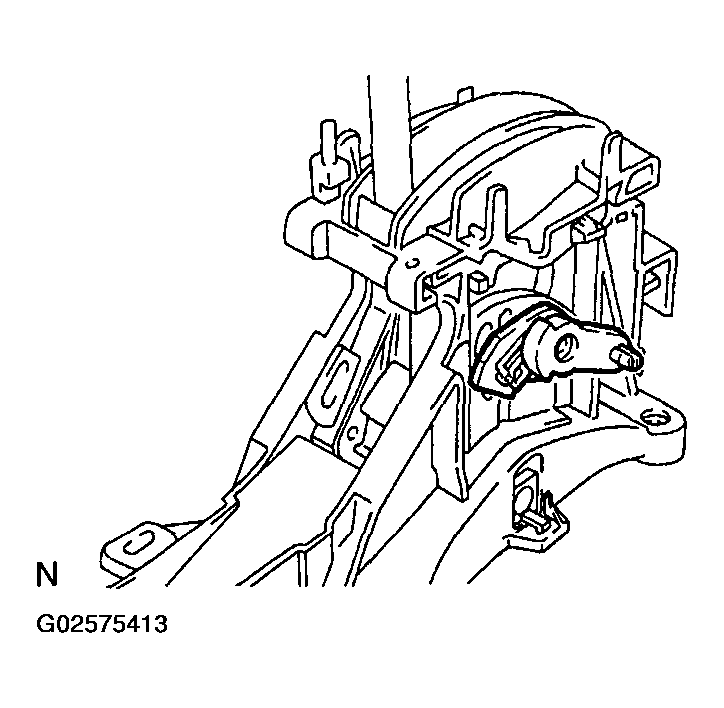

    Fig 9: Removing Key Interlock Cable Rod
    G02575413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE SHIFT LOCK SOLENOID ROD

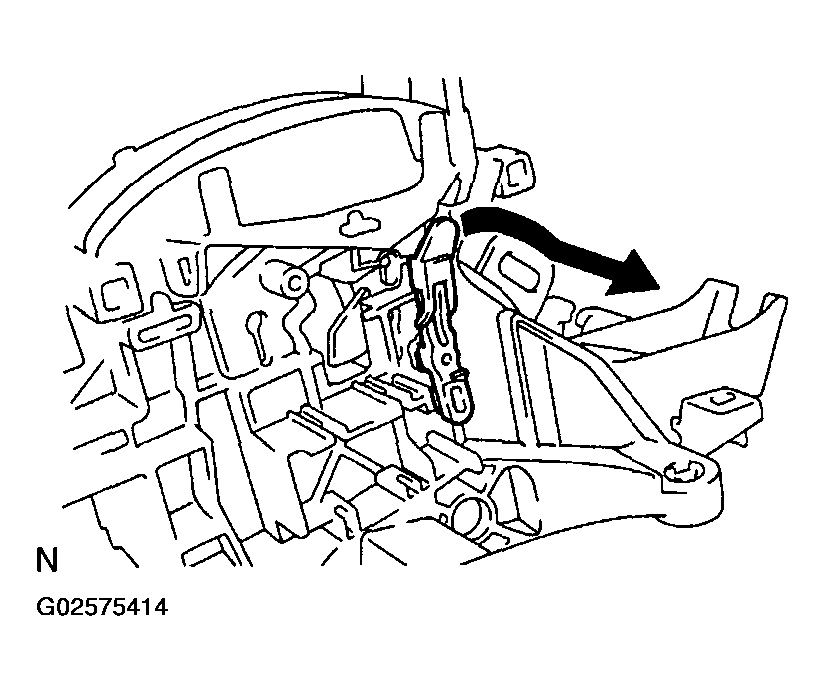

    Fig 10: Removing Shift Lock Solenoid Rod
    G02575414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE SHIFT LEVER SUB-ASSEMBLY
    1. Set a 14 mm deep socket wrench.
    2. Using a punch and hammer, remove the grooved pin.
    3. Remove the detent rod and spring.

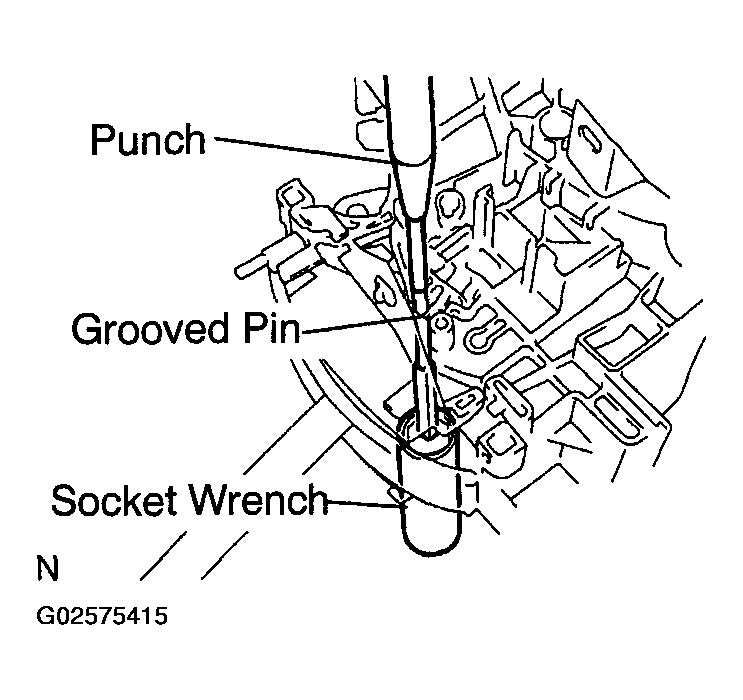

      Fig 11: Removing Shift Lever Sub-Assembly
      G02575415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using a screwdriver, remove the control shaft and shift lever sub-assembly.

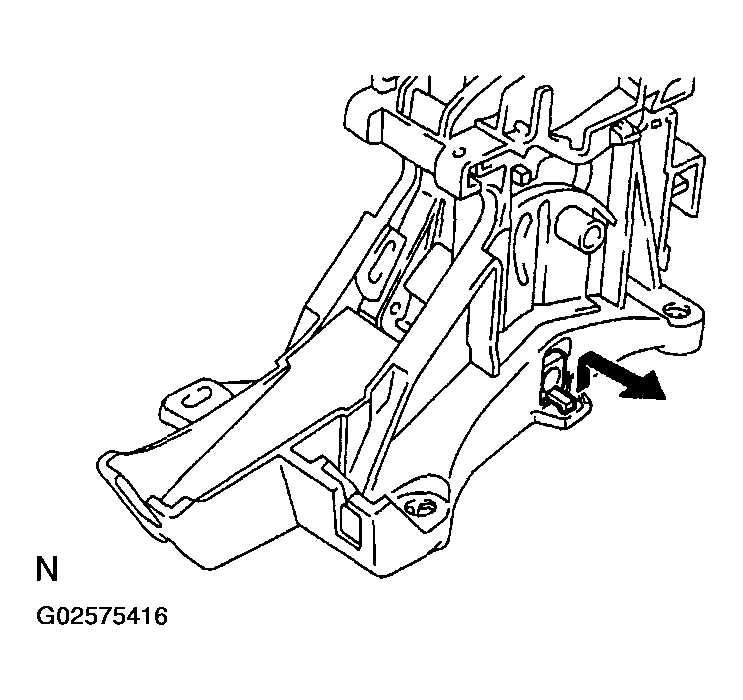

    Fig 12: Removing Control Shaft And Shift Lever Sub-Assembly
    G02575416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE SHIFT LOCK RELEASE BUTTON AND SPRING

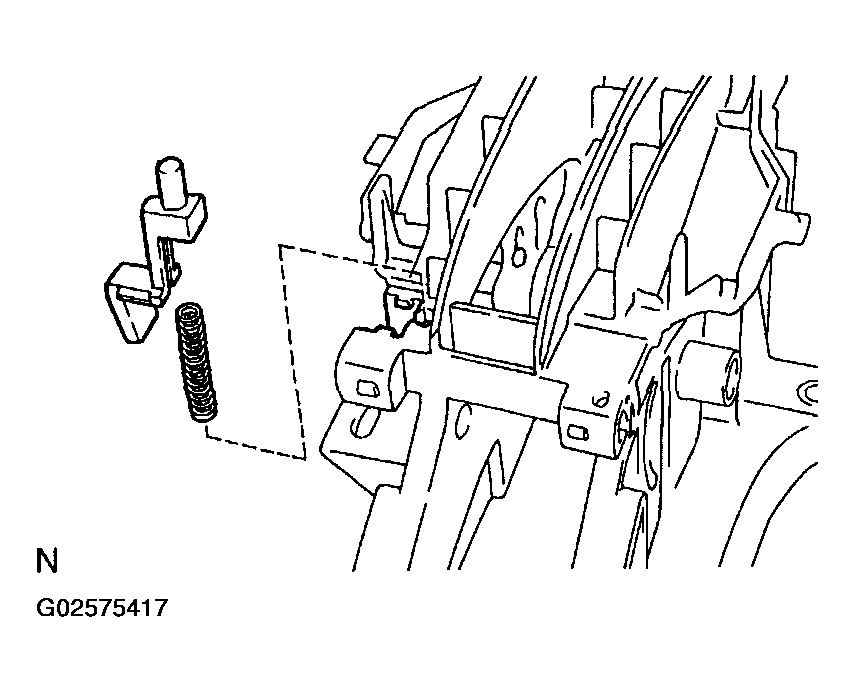

    Fig 13: Removing Shift Lock Release Button And Spring
    G02575417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
